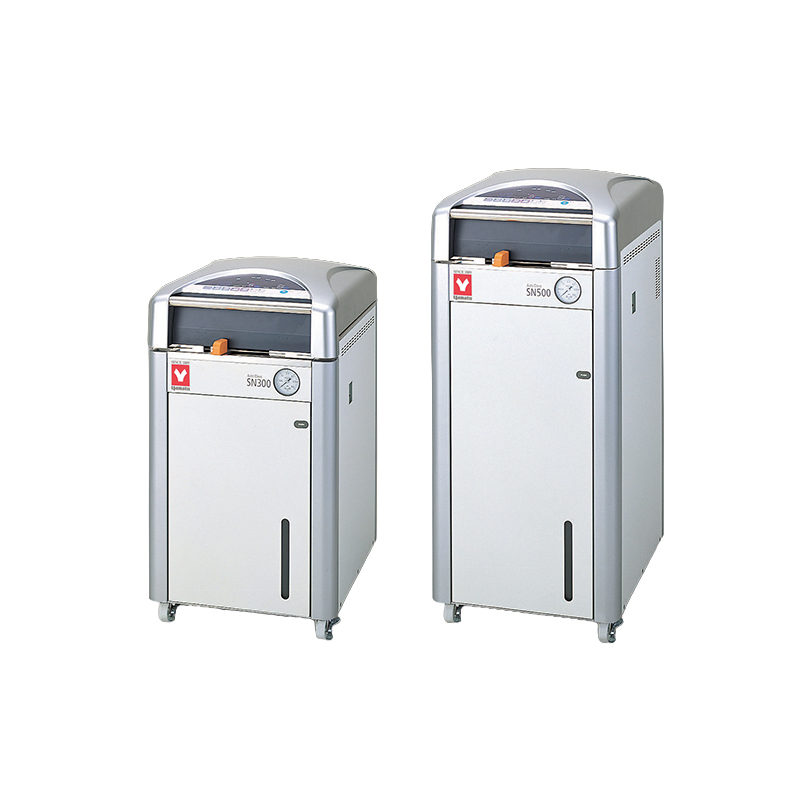

SN SERIES STANDARD 32L & 47L AUTOCLAVES & STEAM STERILIZERS, YAMATO

CLS-1191-SN

SN SERIES STANDARD 32L & 47L AUTOCLAVES & STEAM STERILIZERS, YAMATO

High-performance, easy operation and ergonomically designed sterilizer featuring easy top loading and handling of samples

Operation and functions:

  • Maximum sterilizing temperature goes up to 135°C suitable for protein modification
  • By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture media and liquids, and melting of culture media
  • Custom programs can be saved for repeated use
  • Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
  • Mobile on wheels

Safety Features:

  • Lid interlock mechanism
  • Drain bottle unset alarm
  • Memory malfunction
  • Automatic shutdown when malfunction
  • Self-diagnostic functions

Yamato Scientific’s SN Series Steam Sterilizers & Autoclaves are designed for high performance and easy operation. Each model features easy top-loading and sample handling. We provide a 32L and 47L sizes, making it easy for you to find the best top-loading steam sterilizer that suits your space.

Yamato’s SN high-pressure autoclaves are built with a dedicated top-notch cooling fan for faster cool down times. It is also topped off with an intuitive timer & pre-heating program, which allows you to heat up the chamber before sterilization to reduce the duration of cycle times & formation of condensation. Combined, these features provide you with more enhanced drying results & a more efficient use of your time. The SN series top-loading autoclaves are also engineered with safety features such as lid interlock mechanism, drain bottle unset alarm, memory malfunction, and self-diagnostic functions.

The Yamato SN series standard steam sterilizers are top-of-the-class systems built to deliver reliable performance like no other. Check out the top-loading SN300C steam sterilizer, SN310C steam sterilizer, SN500C steam sterilizer & SN510C steam sterilizer here at Yamato.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-1191-SN-300C
Autoclave & Steam Sterilizer, 32L, SN Series, 100-120VAC, 50/60Hz, Yamato
EACH
✱
$11,200.00
Call for Availability
Wishlist
SKU: CLS-1191-SN-500C
Autoclave & Steam Sterilizer, 47L, SN Series, 100-120VAC, 50/60Hz, Yamato
EACH
✱
$11,800.00
Call for Availability
Wishlist
  • ✱ Life Science LM Product Line
Item Number CLS-1191-SN-300C CLS-1191-SN-500C
System Automatic high-pressure steam sterilization Automatic high-pressure steam sterilization
Operating temperature range 45~135°C 45~135°C
Max. working pressure 0.255MPa 0.255MPa
Ambient temperature 5~35°C 5~35°C
Lid Manual upward opening with an interlock for safety Manual upward opening with an interlock for safety
Heater 100V, 800W x 2 units 100V, 950W x 2 units
Exhaust valve One exhaust valve and one slow-release valve One exhaust valve and one slow-release valve
Connection ports for optional accessories Total 3 ports. Female thread for sample temp. sensor (1/4"), Female thread for chamber temp. sensor (1/4"), Female thread pressure sensor (branching from the solenoid valve tubing) Total 3 ports. Female thread for sample temp. sensor (1/4"), Female thread for chamber temp. sensor (1/4"), Female thread pressure sensor (branching from the solenoid valve tubing)
Cooling fan Axial fan motor Axial fan motor
Temp. controller PID control by microprocessor PID control by microprocessor
Temp. display / setting Digital display / digital setting by ▲▼ keys Digital display / digital setting by ▲▼ keys
Timer / Timer resolution 0 or 1 min. to 99 hrs 59 min. / 1 min. 0 or 1 min. to 99 hrs 59 min. / 1 min.
Operation mode Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course
Other functions Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting
Safety device Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa)
External dimensions (WxDxH) 460 x 590 x 848 mm 460 x 590 x 1058 mm
Internal dimensions of chamber ø300 x D445 mm ø300 x D665 mm
Internal capacity 32L 47L
Weight ~75kg ~85kg
Power source AC100~120V (15~12.5A) (no plug, round terminal) AC100~120V (23.5~19.5A) (no plug, round terminal)
Included accessories 2 pcs. stainless steel mesh basket (ø274 x D200mm) 3 pcs. stainless steel mesh basket (ø274 x D200mm)
  Vapor cup x 1, Drain bottle x 1, Drain board x 1, Chemical indicator 1 set (30 pieces), Filter x 1 Vapor cup x 1, Drain bottle x 1, Drain board x 1, Chemical indicator 1 set (30 pieces), Filter x 1
