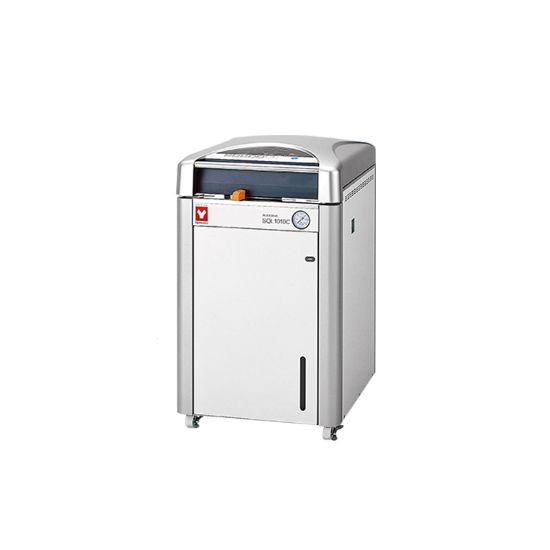

LARGE CAPACITY AUTOCLAVE AND STEAM STERILIZERS, SQL SERIES, 110L, YAMATO

CLS-1191-SQL

LARGE CAPACITY AUTOCLAVE AND STEAM STERILIZERS, SQL SERIES, 110L, YAMATO

High-performance, easy operation and ergonomically designed sterilizer featuring easy top loading and handling of samples

  • Maximum sterilizing temperature goes up to 135°C suitable for protein modification
  • By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
  • Custom programs can be saved for repeated use
  • Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
  • Mobile on wheels
  • Enhanced safety device
  • Lid interlock mechanism
  • Drain bottle unset alarm
  • Memory malfunction
  • Automatic shutdown when malfunction
  • Self-diagnostic functions

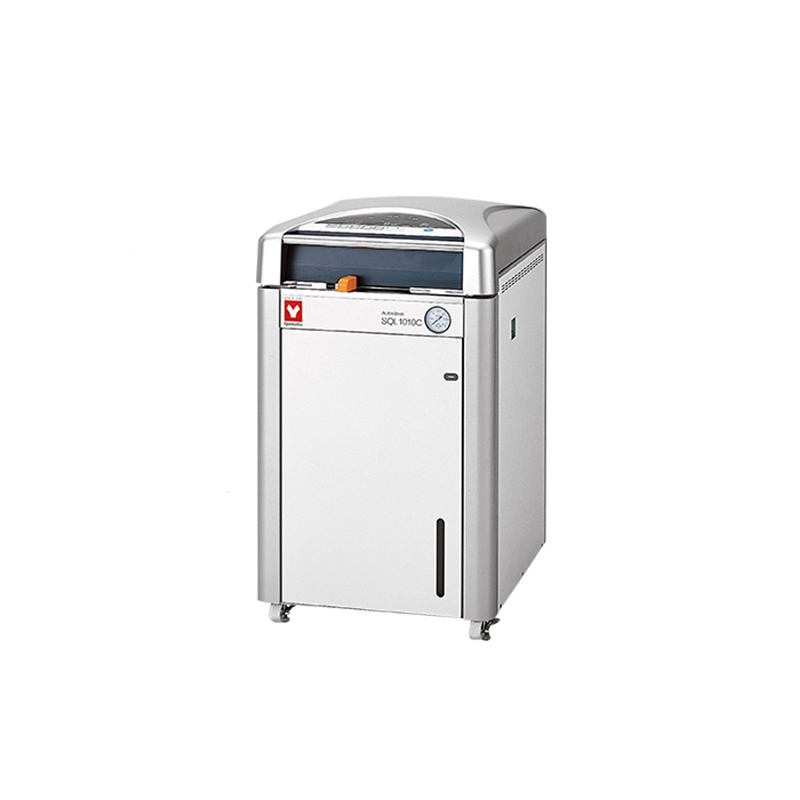

SQL1010C autoclave features an advance cooling fan system which allows you to handle more load in less time. Built with high-performance & easy operation in mind, the Yamato SQL1010C is equipped with an automated high-pressure sterilization system and an operating temperature range that goes up to 135°C. This large capacity SQL steam sterilizer takes your sterilization to the next level, whether it involves simple sterilization processes to complex sterilization of culture media, and melting of culture media.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-1191-SQL-1010C
Large Capacity Steam Sterilizer with Dryer, 110L, SQL Series, 220VAC, 50/60Hz, Yamato
EACH
✱
$34,165.00
Call for Availability
Wishlist
  • ✱ Life Science LM Product Line
Item Number CLS-1191-SQL-1010C
System Automatic high-pressure steam sterilization
Operating Temperature Range 45~135°C
  45 ~80°C (pre-heating) / 45 ~ 60°C (heat retention) / 65 ~100°C(melting) / 105~135°C (sterilization
Maximum Working Pressure 0.255MPa
Lid (cover mechanism) Manual upward opening with an interlock for safety
Heater 2000W x 2 units
Exhaust Valve One exhaust valve and one slow-release valve
Option port For sample sensor (1/4), recorder (1/4) and connection to pressure gauge (branched from the electromagnetic exhaust duct)
Cooling fan Axial fan motor
Temperature Controller PID control by microprocessor
Temperature Display/Setting Digital display / digital setting by ▲▼ keys
Timer/Timer Resolution 0 or 1 min. to 99 hrs 59 min. / 1 minute
Operation Mode Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course
Other features Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting
Safety device Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa)
External dimensions 680 x 760 x 1154 mm WxDxH
Internal dimensions of chamber Ø450 x D692 mm
Internal capacity 110L
Weight ~170kg
Power source AC220V (19A) (no plug, round terminal)
Included accessories 2 pcs. stainless steel mesh basket (ø424xH300mm)
  Vapor cup x 1, Drain bottle x 1, Drain board x 1, Filter x 1
