CLS-1191-SM STANDARD SERIES

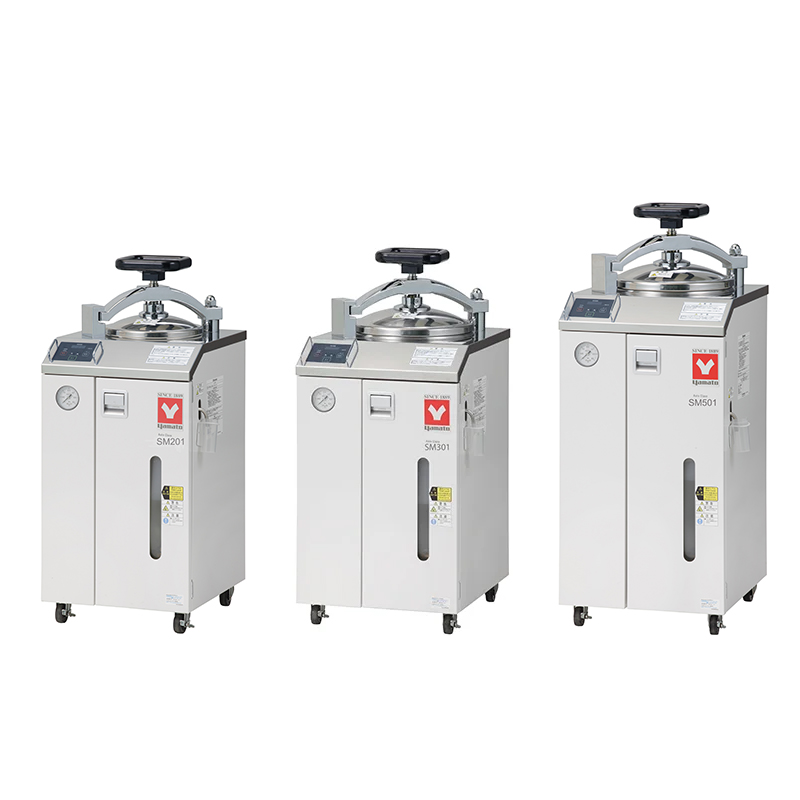

SM SERIES STANDARD 20L, 32L, & 47L AUTOCLAVES AND STEAM STERILIZERS WITH DRYER, 115VAC 50/60HZ, YAMATO

High performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps.

Operation and functions:

  • Automatic operations from sterilization to drying carried out with an interactive key input system
  • Quick sample drying capability makes samples ready to use right after sterilization
  • Drying temperature can be set according to sample material, quantity, etc.
  • Timer ranges from 1~999 hours
  • Drain bottle water level can be quickly confirmed on the front panel level indicator
  • Drain valve located in front for easy access
  • Absence of protrusions in sterilization chamber makes insertion & removal of baskets, and other items quick and easy
  • Self-diagnostic functions make operation safer and error recovery quicker
  • Condensation collector neutralizes high temperature exhaust steam safely

Yamato’s SM series steam sterilizers are the highest performing standard lab autoclave that utilizes superior dryer technology for quick sample drying. This feature makes samples ready to use right after sterilization for a more seamless & efficient workflow experience. The SM steam sterilizers with dryers enable automatic high-pressure steam sterilization of up to 128°C operating temperature. The SM standard steam sterilizers with dryer are offered in 20L, 32L, and 47L loading capacities.

Furthermore, the Yamato SM standard sterilizer series enables easy setting of drying temperatures according to sample material, quantity and more. All controlled in the digital display designed with green LED for a more responsive, comfortable, and intuitive experience. The SM standard autoclaves with dryer are also equipped with self-diagnostic features, making operation safer and error recovery quicker. Upgrade your steam sterilization process with powerful, easy-to-use standard steam sterilizers for lab use.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-1191-SM-201
20L Standard Steam Sterilizer with Dryer, 115VAC 50/60Hz, Yamato
EACH
$9,485.00
Call for Availability
SKU: CLS-1191-SM-301
32L Standard Steam Sterilizer with Dryer, 115VAC 50/60Hz, Yamato
EACH
$10,055.00
Call for Availability
SKU: CLS-1191-SM-501
47L Standard Steam Sterilizer with Dryer, 115VAC 50/60Hz, Yamato
EACH
$11,185.00
Call for Availability
  • ✱ Life Science LM Product Line
Part Number CLS-1191-SM-201 CLS-1191-SM-301 CLS-1191-SM-501
System Automatic high pressure steam sterilization
Operating Temperature Sterilization 105 to 123°C 105 to 128°C
Operating Temperature Drying 150 to 180°C
Maximum Pressure capacity 0.18MPa 0.2MPa
Interior Stainless steel
Heater Sterilization 1.3kW 1.7kW
Heater Drying 1.0kW 1.5kW
Temp. controller PID control by microprocessor
Temp. display Digital display by green LED and setting via ▲▼ keys
Timer / Timer resolution 1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr.
Safety Device Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch
Internal dimensions ⌀240 x D445 mm ⌀300 x D445 mm ⌀300 x D665 mm
External dimensions WxDxH 410 x 470 x 957 mm 440 x 530 x 968 mm 440 x 530 x 1088 mm
Internal capacity 20L 32L 47L
Power source AC115V 13A (with plug) AC115V 15A (no plug, round terminal) AC115V 15A (no plug, round terminal)
(50/60Hz single phase)
Weight ~65kg ~80kg ~85kg
Included accessories 2 pcs. stainless steel mesh basket (⌀209 x D204 mm) 2 pcs. stainless steel mesh basket (⌀266 x D204 mm) 2 pcs. stainless steel mesh basket (⌀266 x D315 mm)
Drain board, drain bottle, condensation collection container with magnetic bracket
