SK SERIES NATURAL & FORCED CONVNECTION 99L, 162L, & 300L DRY STERILIZERS, YAMATO

CLS-1191-SK

SK SERIES NATURAL & FORCED CONVNECTION 99L, 162L, & 300L DRY STERILIZERS, YAMATO

Dry heat sterilization with independent overheat prevention device

Operation and functions

  • Programmable
  • High precision controller with improved display visibility and operability
  • Standard equipped with calibration off-set, lock function, power recovery mode, power on and operation time accumulation, calendar time, accumulation power consumption monitoring, total CO₂ emission, and heat output, save and access operator setting information
  • Maximum 99 steps, 99 patterns, repeat operation
  • Easy sample data collection with cable port

Safety Features

  • Standard equipped with self-diagnostic functions, independent overheat prevention device and earth leakage breaker

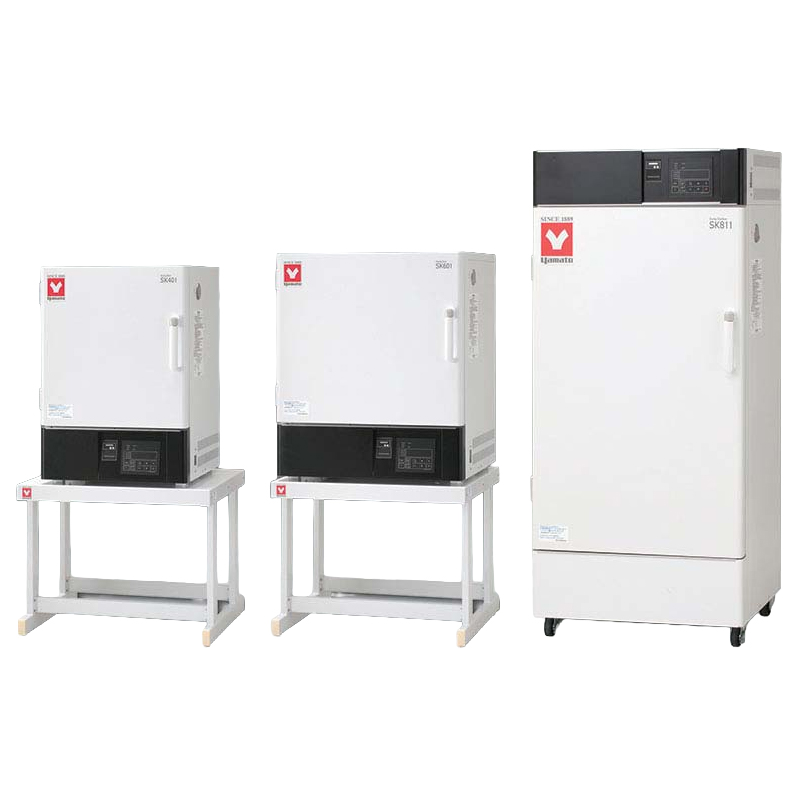

Yamato’s SK series dry sterilizers feature a collection of highly functional natural convection & forced convection dry-heat sterilizer models. All units are constructed to enhance sterilization, drying, and heating, effectively and efficiently transforming how you get the work done at lower cost. Featuring the latest technology & a highly precise controller, the SK dry heat series is the most functional programmable dry sterilizer line that showcases improved display visibility and operability.

The Yamato SK401 & SK601 natural convection sterilizers bring economical savings with their lower maintenance & operational costs. While the SK801 & SK811 dry sterilizers are equipped with advanced forced convection technology. Their powerful motor-driven blower ensures heated air is evenly distributed within the chamber at higher velocity. So it sterilizes your samples more thoroughly and quickly.

Find reliable dry sterilization performance in our natural and forced convection SK dry sterilizers. Each with advanced operational functions including commonly used commands and over 99 steps, patterns, and repeat operation functions. Plus, easily collect sample data with cable port. All included in the 99L, 162L, and 300L size options.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-1191-SK-401
Natural Convection Dry Sterilizer, 99L, SK Series, 115VAC, 50/60Hz, Yamato
EACH
✱
$4,095.00
Call for Availability
Wishlist
SKU: CLS-1191-SK-601
Natural Convection Dry Sterilizer, 162L, SK Series, 115VAC, 50/60Hz, Yamato
EACH
✱
$4,595.00
Call for Availability
Wishlist
SKU: CLS-1191-SK-801
Forced Convection Dry Sterilizer, 300L, SK Series, 115VAC, 50/60Hz, Yamato
EACH
✱
$10,300.00
Call for Availability
Wishlist
  • ✱ Life Science LM Product Line
Item Number CLS-1191-SK-401 CLS-1191-SK-601 CLS-1191-SK-801
Circulation method Natural convection Natural convection Forced convection
Temperature Setting Range Room temp. +5~260°C Room temp. +5~260°C Room temp. +10~210°C
Temp. control accuracy ±1°C (at 260°C) ±1°C (at 260°C) ±1°C (at 210°C)
Temp. fluctuation ±1.5°C (at 260°C) ±1.5°C (at 260°C) ±1°C (at 210°C)
Temp. distribution accuracy ±5°C (at 260°C) ±5°C (at 260°C) ±3.5°C (at 210°C)
Temp. rising time ~60min. ~60min. ~60min.
Interior / Exterior material Stainless Steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish Stainless Steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish Stainless Steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish
Insulation Material Glass wool Glass wool Glass wool
Heater SUS 1.2kW SUS 1.36kW SUS 2.4kW
Sensor K type Thermocouple K type Thermocouple K type Thermocouple
Fan type / Fan motor - - Sirocco Fan / Condenser type motor 30W
Cable port I.D. 33mm (right side) I.D. 33mm (right side) I.D. 33mm (right side)
Exhaust port I.D. 33mm x 2 (on top) I.D. 33mm x 2 (on top) I.D. 33mm x 2 (back)
Temperature control PID control by microprocessor PID control by microprocessor PID control by microprocessor
Temperature display Temp. display: Green 4-digit LED Digital Display (increment: 1°C) Temp. display: Green 4-digit LED Digital Display (increment: 1°C) Temp. display: Green 4-digit LED Digital Display (increment: 1°C)
  Setting temp. display: Orange 5-digit LED Digital Display (increment: 1°C) Setting temp. display: Orange 5-digit LED Digital Display (increment: 1°C) Setting temp. display: Orange 5-digit LED Digital Display (increment: 1°C)
Timer 0 min~99 hrs 59 min (increment: 1 min. or 1 hr.) 0 min~99 hrs 59 min (increment: 1 min. or 1 hr.) 0 min~99 hrs 59 min (increment: 1 min. or 1 hr.)
Heater control Triac with Zero-cross control Triac with Zero-cross control Triac with Zero-cross control
Operation function Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns, repeat operation function) Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns, repeat operation function) Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns, repeat operation function)
Additional function Power on and operation time accumulation function (up to 65535 hours), Calendar time (24 hours), Calibration offset, Accumulated power consumption monitoring, Total CO₂ emission and heater output, Power recovery mode, Save and access operator setting information, key lock Power on and operation time accumulation function (up to 65535 hours), Calendar time (24 hours), Calibration offset, Accumulated power consumption monitoring, Total CO₂ emission and heater output, Power recovery mode, Save and access operator setting information, key lock Power on and operation time accumulation function (up to 65535 hours), Calendar time (24 hours), Calibration offset, Accumulated power consumption monitoring, Total CO₂ emission and heater output, Power recovery mode, Save and access operator setting information, key lock
Safety device Self-diagnostic functions (Sensor failure, SSR short circuit, Heater failure, Main relay contact failure, Automatic overheat prevention), earth leakage breaker, Independent overheat prevention device Self-diagnostic functions (Sensor failure, SSR short circuit, Heater failure, Main relay contact failure, Automatic overheat prevention), earth leakage breaker, Independent overheat prevention device Self-diagnostic functions (Sensor failure, SSR short circuit, Heater failure, Main relay contact failure, Automatic overheat prevention), earth leakage breaker, Independent overheat prevention device
Internal dimensions WxDxH 450 x 490 x 450 mm 600 x 540 x 500 mm 600 x 500 x 1000 mm
External dimensions WxDxH 560 x 600 x 820 mm 710 x 650 x 870 mm 710 x 650 x 1640 mm
Internal capacity 99L 162L 300L
Shelf plate with standard load ~15kg/pc
Shelf rest step number / pitch 11 steps / 30mm 13 steps / 30mm 29 steps / 30mm
Power source 115V 11A (with plug) 115V 12.5A (with plug) 115V 21.5A (no plug, round terminal)
Weight ~50kg ~62kg ~108kg
Included accessories Shelf and brackets (stainless steel punched metal) Shelf and brackets (stainless steel punched metal) Shelf and brackets (stainless steel punched metal)
  2 pcs. / 4 pcs. 2 pcs. / 4 pcs. 4 pcs. / 8 pcs.
