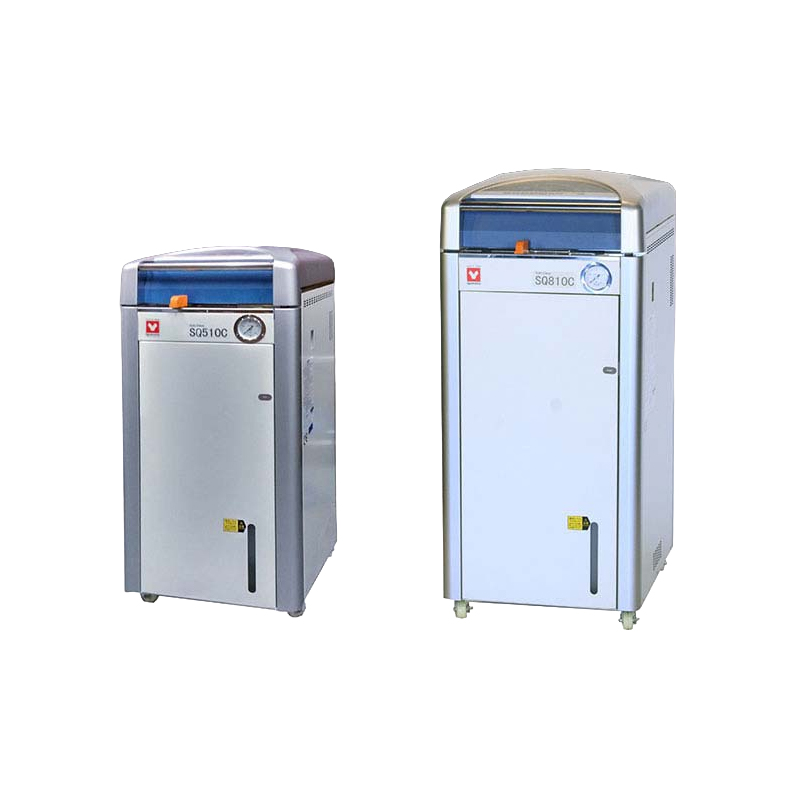

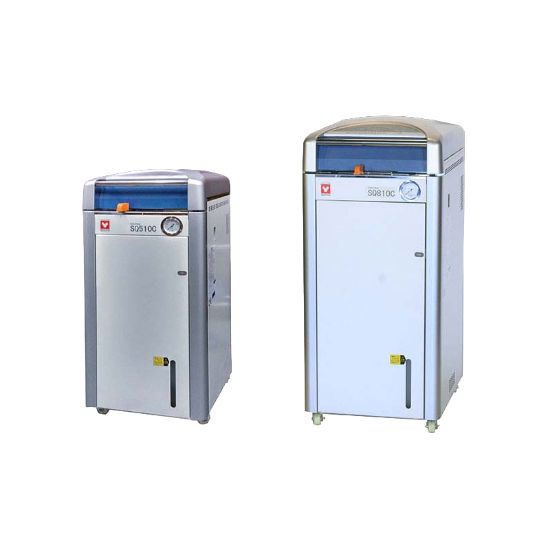

LARGE CAPACITY AUTOCLAVES AND STEAM STERILIZERS, 50L & 80L, SQ SERIES, YAMATO

CLS-1191-SQ

LARGE CAPACITY AUTOCLAVES AND STEAM STERILIZERS, 50L & 80L, SQ SERIES, YAMATO

High-performance, easy operation and ergonomically designed sterilizer featuring easy top loading and handling of samples

  • Maximum sterilizing temperature goes up to 135°C suitable for protein modification
  • By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
  • Custom programs can be saved for repeated use
  • Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
  • Mobile on wheels
  • Enhanced safety device
  • Lid interlock mechanism
  • Drain bottle unset alarm
  • Memory malfunction
  • Automatic shutdown when malfunction
  • Self-diagnostic functions

SQ Series large autoclaves are a collection of high-capacity steam sterilizers that feature an advance cooling fan system which allows you to handle more load in less time. Built with high-performance & easy operation in mind, the Yamato SQ series is equipped with an automated high-pressure sterilization system and an operating temperature range that goes up to 135°C. The large capacity autoclave series takes your sterilization to the next level. Whether it involves simple sterilization processes to complex sterilization of culture media, and melting of culture media.

Each large autoclave unit boasts of user-comfort thanks to its ergonomic, low height, top-loading design so you can load containers without the added strain. Operating steam sterilizers has never been easier & more comfortable. Custom programs can also be saved for repeated use with just a push of a button.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-1191-SQ-500C
Large Capacity Steam Sterilizer with Dryer, 50L, SQ Series, 100-120VAC 50/60Hz, Yamato
EACH
✱
$12,610.00
Call for Availability
Wishlist
SKU: CLS-1191-SQ-810C
Large Capacity Steam Sterilizer with Dryer, 80L, SQ Series, 200-240VAC 50/60Hz, Yamato
EACH
✱
$17,180.00
Call for Availability
Wishlist
  • ✱ Life Science LM Product Line
Item Number CLS-1191-SQ-500C CLS-1191-SQ-810C
System Automatic high-pressure steam sterilization Automatic high-pressure steam sterilization
Operating Temperature Range 45~135°C 45~135°C
Maximum Working Pressure 0.255MPa 0.255MPa
Ambient Temperature 5~35°C 5~35°C
Lid Manual upward opening with an interlock for safety Manual upward opening with an interlock for safety
Heater 1000W x 2 units 1000W x 2 units
Exhaust Valve One exhaust valve and one slow-release valve One exhaust valve and one slow-release valve
Connection ports for optional accessories Total 3 ports. Female thread for sample temp. sensor (1/4"), Female thread for chamber temp. sensor (1/4"), Female thread pressure sensor (branching from the solenoid valve tubing) Total 3 ports. Female thread for sample temp. sensor (1/4"), Female thread for chamber temp. sensor (1/4"), Female thread pressure sensor (branching from the solenoid valve tubing)
Cooling fan Axial fan motor Axial fan motor
Temperature Controller PID control by microprocessor PID control by microprocessor
Temperature Display/Setting Digital display / digital setting by ▲▼ keys Digital display / digital setting by ▲▼ keys
Timer/Timer Resolution 0 or 1 min. to 99 hrs 59 min. / 1 minute 0 or 1 min. to 99 hrs 59 min. / 1 minute
Operation Mode Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course
Other features Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting
Safety device Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa)
External dimensions WxDxH 520 x 660 x 881 mm  520 x 660 x 1161 mm
Internal dimensions of chamber ø370 x D470 mm ø370 x D750 mm
Internal capacity 50L 80L
Power source AC100~120V (24.5~20.5A) (no plug, round terminal) AC200~240V (12.5~10.5A) (no plug, round terminal)
Included accessories 2 pcs. stainless steel mesh basket (ø344xD200mm) 2 pcs. stainless steel mesh basket (ø344xD300mm)
  Vapor cup x 1, Drain bottle x 1, Drain board x 1, Chemical indicator 1 set (30 pieces), Filter x 1 Vapor cup x 1, Drain bottle x 1, Drain board x 1, Chemical indicator 1 set (30 pieces), Filter x 1
