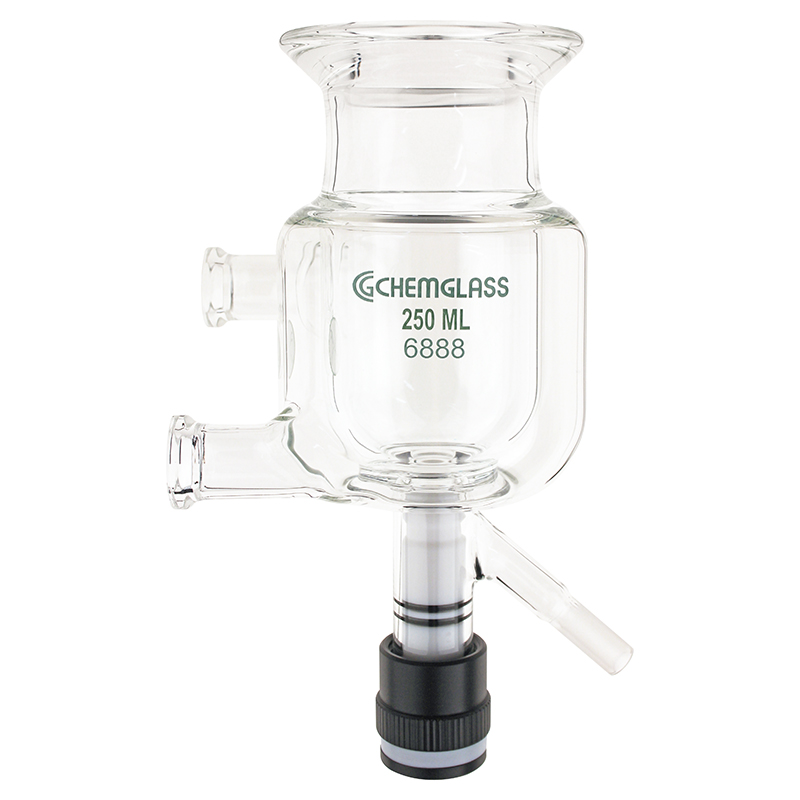

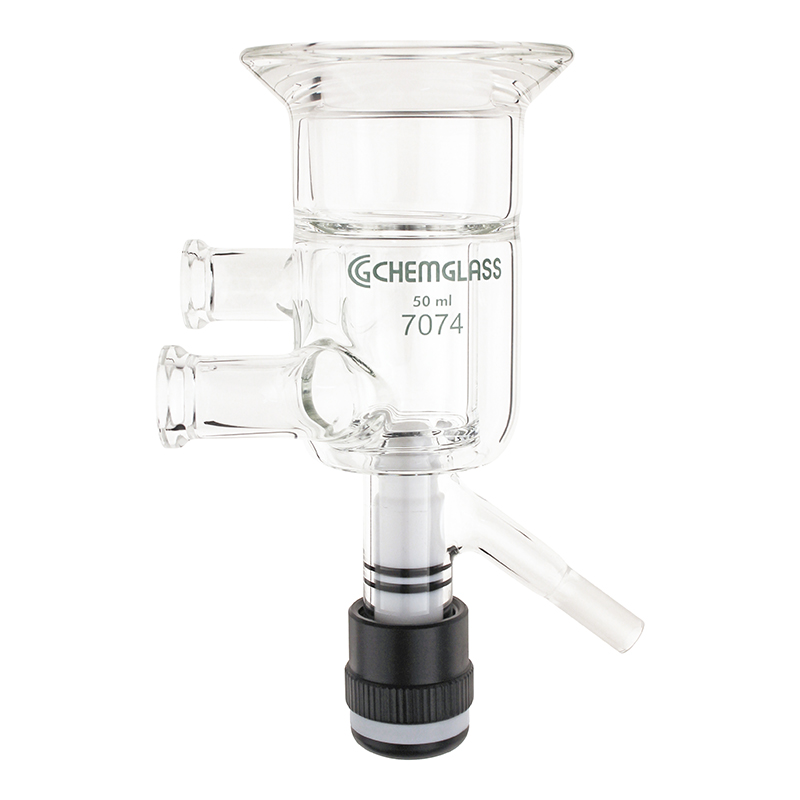

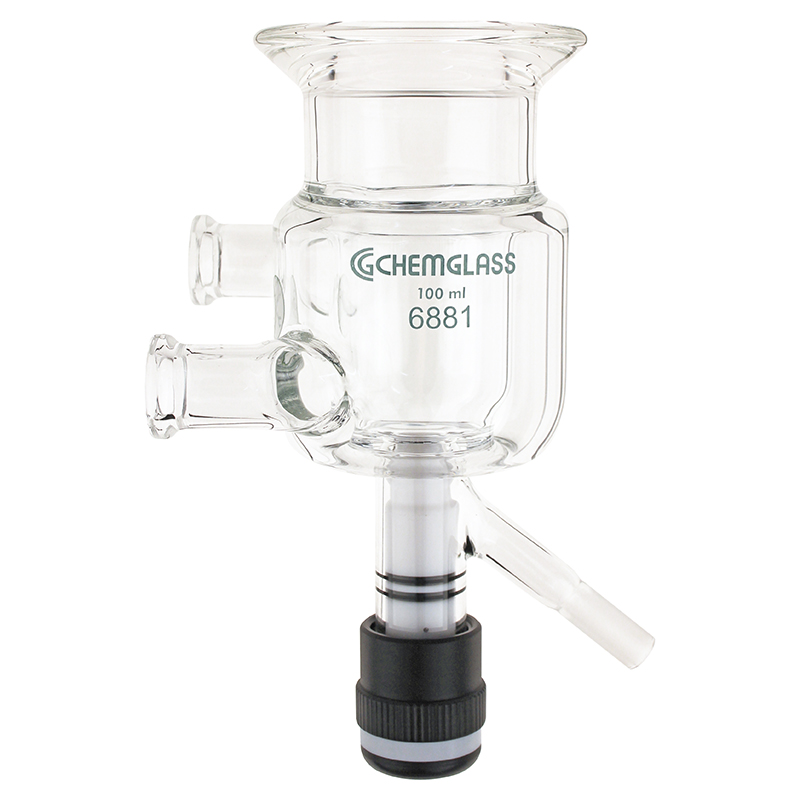

REACTION VESSELS, JACKETED, BENCHTOP, TOOL-FREE FLAT FLANGES, 60MM FLAT O-RING FLANGE, JACKETED LAB REACTOR – JLR, CHEMRXNHUB COMPACT

• Tool-Free™ Jacket Connection Design Allows Hose to be Attached or Removed by Hand Without Using Tools

• Chemically Resistant Perfluoro O-Rings on All CG-911-A Spring loaded Drain

• Sidearm on Lower Drain Valve can be Used with a Standard 1/2” TFE, PFA or Polypropylene Compression Fitting

Jacketed reaction vessel with Inlet/outlet that has our tool-free flat flange connector. No Tools Are Necessary to attach hose fittings to the inlet and outlet of the jacket. Vessels with our spring loaded 0-14mm drain valve supplied complete with one-piece plug and control knob with WHITE indicator band. Spring loaded plug is designed to be used at -60 to 230 C. The sidearm on the CG-911-A valve is 1/2” ground tubing Valves are designed to seal flush with the bottom of the flask avoiding the dead space normally associated with stopcock drains. This feature permits total mixing and draining of the contents of the reactor. Reaction vessel is constructed with a 60mm flange having a groove formed in the sealing surface of the flange. For clamps see CG-141 or CG-141-T. For O-Rings see CG-147.
