MINIATURE OVER-HEAD STIRRERS WITH REMOTE DIGITAL SPEED CONTROL, VELP

CG-2039-V-10

COMPACT OVER-HEAD STIRRERS WITH REMOTE DIGITAL SPEED CONTROL, VELP

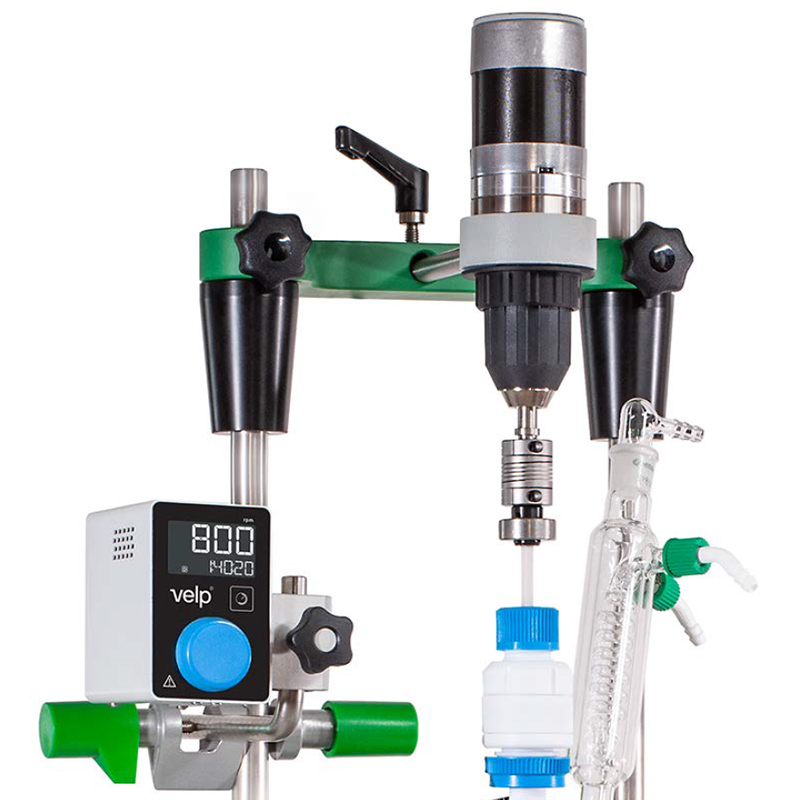

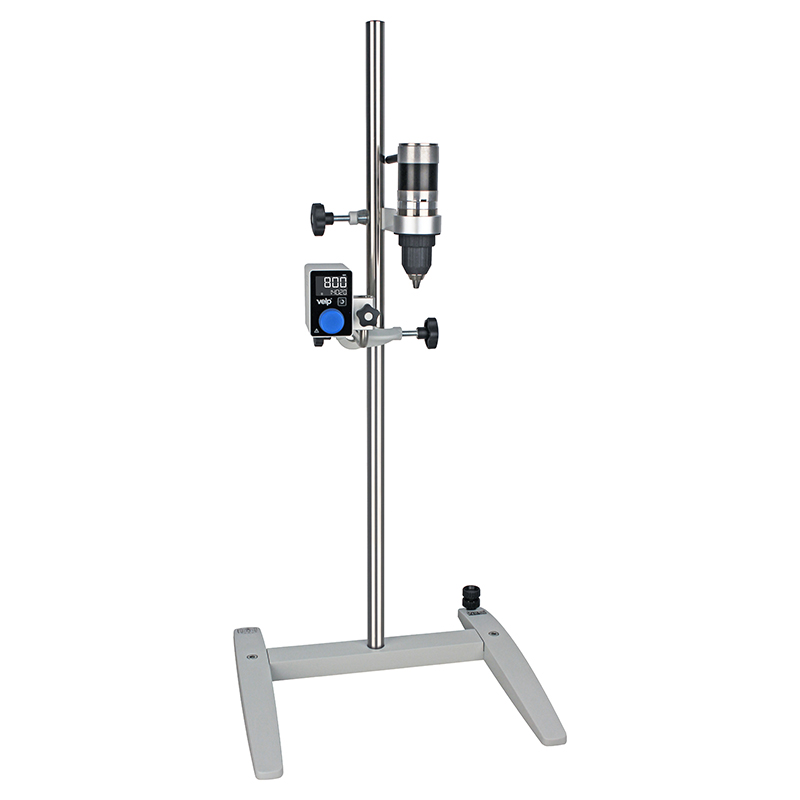

Compact, Brushless DC motor features powerful torque, compact size, and no maintenance. Brushless gear-motor is for use with Chemrxnhub Compact, Round bottom flasks, reactors and open containers. Must be used in conjunction with the digital display controller. Support plate ring and rod design allows the motor to be mounted on the ChemRxnHub Compact stand, Stirrer stands or on lattice in most hoods. Supplied complete with a Toolless Nylon body keyless chuck. RS232 Interface for use with Mettler Toledo RX10.

  • RS232 Interface for use with Mettler Toledo RX10
  • USB interface for use with PC software to data log, monitor. USB also allow Software Updates



Max torque admitted 70 Ncm
Programmable speed range 0 / 30 – 800 rpm
Speed setting resolution 1 rpm
Motor type BLDC
Motor rating output 60 W
Chuck range diameter 2 – 13 mm



Designed and manufactured in compliance with the following standards: CE, CSA and UL.

NEMKO mark

Nemko mark indicates compliance with the following standards CSA and UL.

Coming Soon Images – Browse 75,709 Stock Photos, Vectors, and Video | Adobe Stock

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-2039-V-10
Compact Over-Head Stirrer with a Separate Remote Digital Speed Control, Velp
EACH
✱
$1,750.00
Call for Availability
Wishlist
  • ✱ Chemistry Equipment and Hardware Product line
Voltage and Frequency 115/230 V - 50/60 Hz
Power input 90 W
Control Unit - Dimensions (WxHxD) 93 x 95 x 130 mm (3,66 x 3,74 x 5,12 in)
Control Unit - Weight 0,85 kg (1,87 lb)
Drive Unit - Dimensions (WxHxD) 67 x 187 x 140 mm (2,64 x 7,37 x 5,5 in)
Drive Unit - Weight 1,9 kg (4,18 lb)
Construction material Stainless steel enclosure – Tempered glass control panel
User interface LCD display and touch button
Working in continuous Admitted
Noisiness << 80 dBa
Environmental temperature admitted +5…+40 °C
Storage temperature admitted -10…+60 °C
Max humidity 80%
Overvoltage category II
Pollution degree CEI EN61010-1 2
Max altitude 2000 m
Stirring capacity Up to 40 l H2O – Up to 50.000 mPa*s
Max torque admitted 70 Ncm
Programmable speed range 0 / 30 – 800 rpm
Speed setting resolution 1 rpm
Motor type BLDC
Motor rating output 60 W
Chuck range diameter 2 – 13 mm
Shaft diameter Pass-Through N/A
Count-Up and Count-Down range 1 s ÷ 99 h 59 min 59 s (1 s steps)
USB interface USB-C
RS 232 interface yes
Motor counter Operating hours/days
