CG-1949-M

CHEMRXNHUB COMPACT SUPPORT STANDS, BENCHTOP REACTORS, MINI LAB REACTORS

Features:

S.S. Uprights and Heavy Duty PTFE Coated Aluminum Fittings Provide Maximum Strength and Chemical Durability.
Supports Reactors from 50mL to 500mL Reactors.
Removable Polyethylene Spill Tray.
Adjustable Middle Support Bracket is Vertically Adjustable. It Accepts Our CG-1947-B-061 60mm S.S. Support Clamp.
Adjustable Top Support Bracket is Vertically Adjustable and Accommodates Most Brands of Overhead Stirrers. Mounting Clamps Accept Overhead Stirrers with a MAX Support Arm of 5/8” Diameter.
Unique Design Allows Easy Installation/Removal of Glassware.
Frame has Adjustable Leveling Pads.

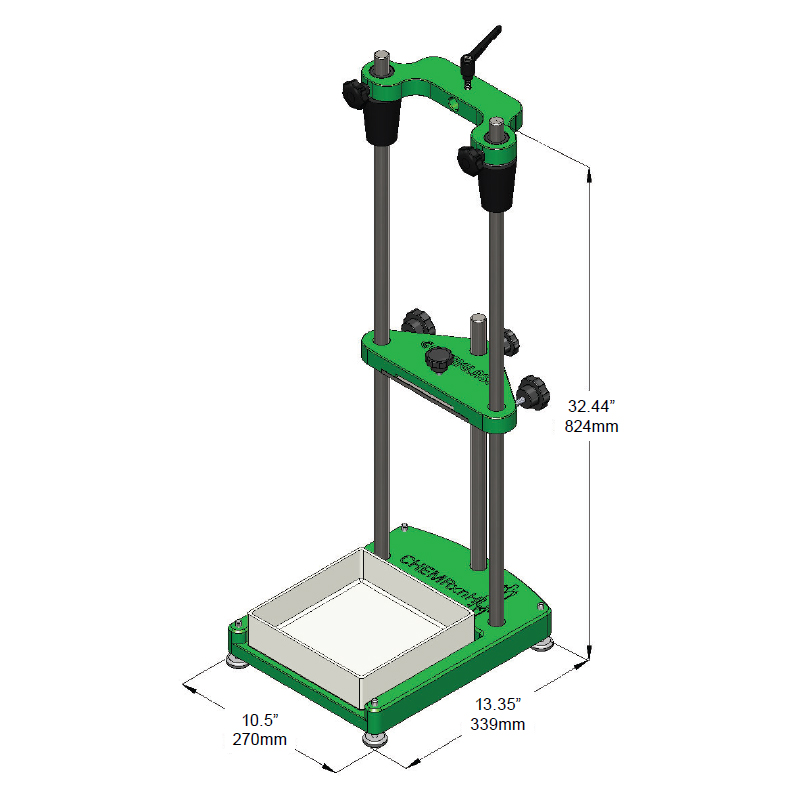

Compact Foot-Print: 10.5” W x 13.35” D x 32.44” H

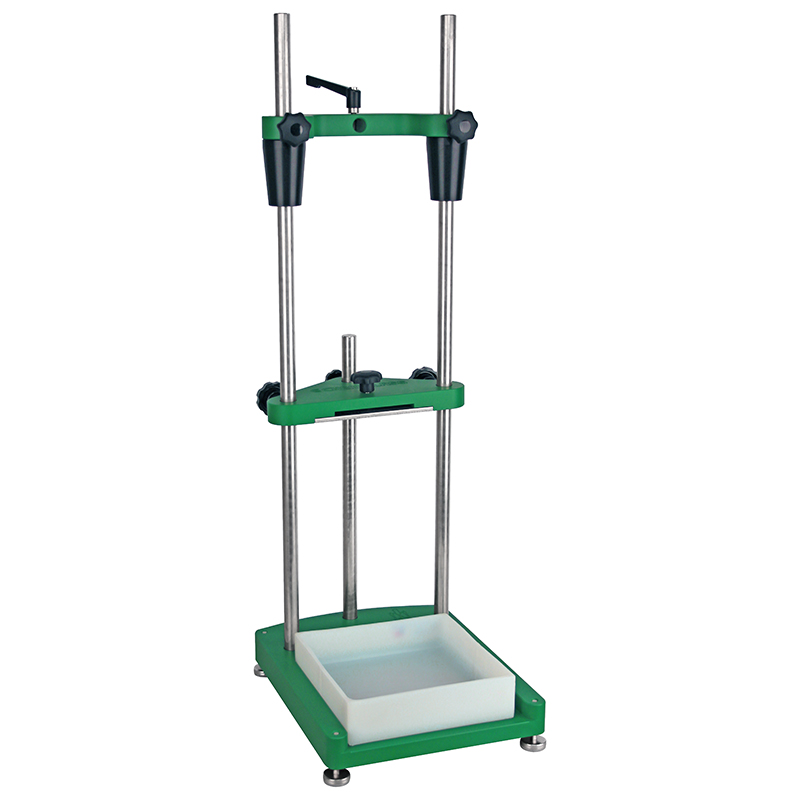

This unique compact stationary reactor stand is designed to fit into most benchtop hoods. Stand can hold a single reactor. The stand provides support for the Reaction Vessel(s), Glassware, Overhead Stirring Motor, and Temperature Monitor. Stand includes removable spill tray.

The weight of the stand is 30lbs.

Larger motors may need to checked for fit prior to ordering, Please contact us.

CHEMRXNHUB COMPACT MINI REACTOR SYSTEM

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-1949-M-10	Reactor Support Frame, ChemRxnHub Compact™	EACH	✱	$2,475.00	Call for Availability	Qty:
✱ Machined Product Line
