STIRRER, DIGITAL OVERHEAD STIRRER / MIXER, COMPACT, 60NCM, 100-240V/50-60HZ

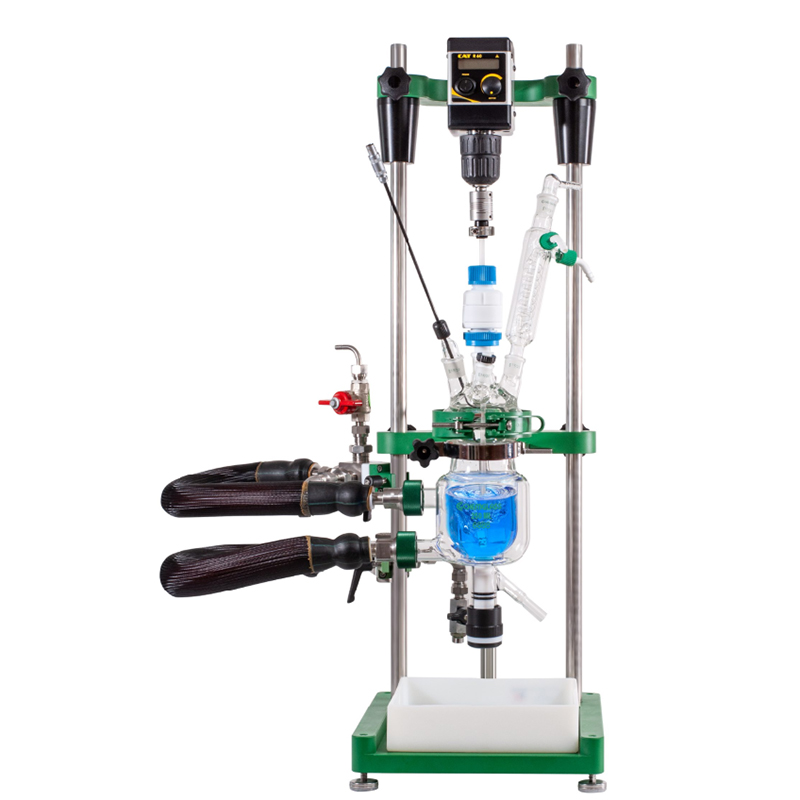

STIRRER, DIGITAL OVERHEAD STIRRER / MIXER, COMPACT, 60NCM, 100-240V/50-60HZ CG-2037-M-060 IN USE

CG-2037-M

STIRRER, DIGITAL OVERHEAD STIRRER / MIXER, COMPACT, 60NCM, 100-240V/50-60HZ

Brushless digital overhead stirrer stands out for high torque compared to their light weight and slim dimensions. They are suited for applications with high torque (up to 50,000mPas) and medium volumes (up to 60L) especially where the space requirements are limited.

  • Maintenance-free motor
  • Compact & light
  • Hollow shaft
  • Overload & overheat protection
  • PC interface
  • Quick-release chuck
  • Low voltage power supply
  • Suitable for continuous duty
Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-2037-M-060

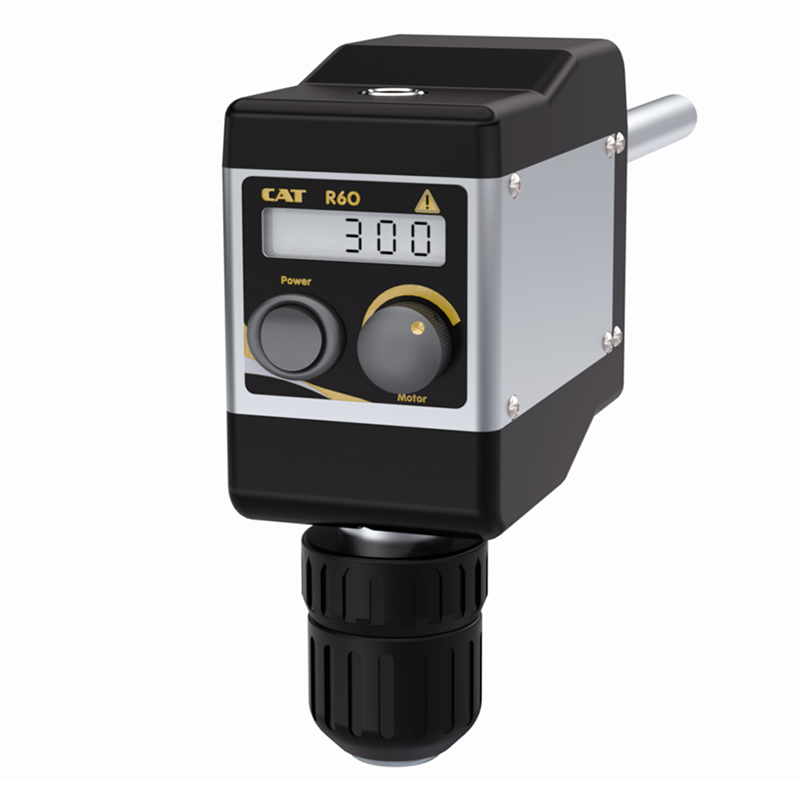

Stirrer Overhead Motor CAT R60D-PC Brushless 24V
EACH
✱
$2,360.00
Call for Availability
Wishlist
  • ✱ Chemistry Equipment and Hardware Product line
Speed range [1/min] 30 - 800
Digital display type LCD
RPM display Yes
Timer display -
Timer function -
Absolut torque display -
Relative torque display -
Torque, max. [Ncm] 60
Stirring quantity, max. (H2O) [l] 100
Viscosity, max. [mPas] 50
Chuck range [mm] 1 – 10.5
Chuck type keyless
Hollow Shaft Yes
Power supply [V] 24VDC 60W
External power supply Yes
PC interface RS 232
Analogue input -
Analogue output -
Weight [kg] 1.3
Width [mm] 68
Height [mm] 172
Depth [mm] 130
Protection class according to DIN EN 60529 IP42
Overheat protection Yes
Overload protection Yes
Motor type BLDC
Shaft rotation CCW
Operation mode Long-time duty
Certification CE
