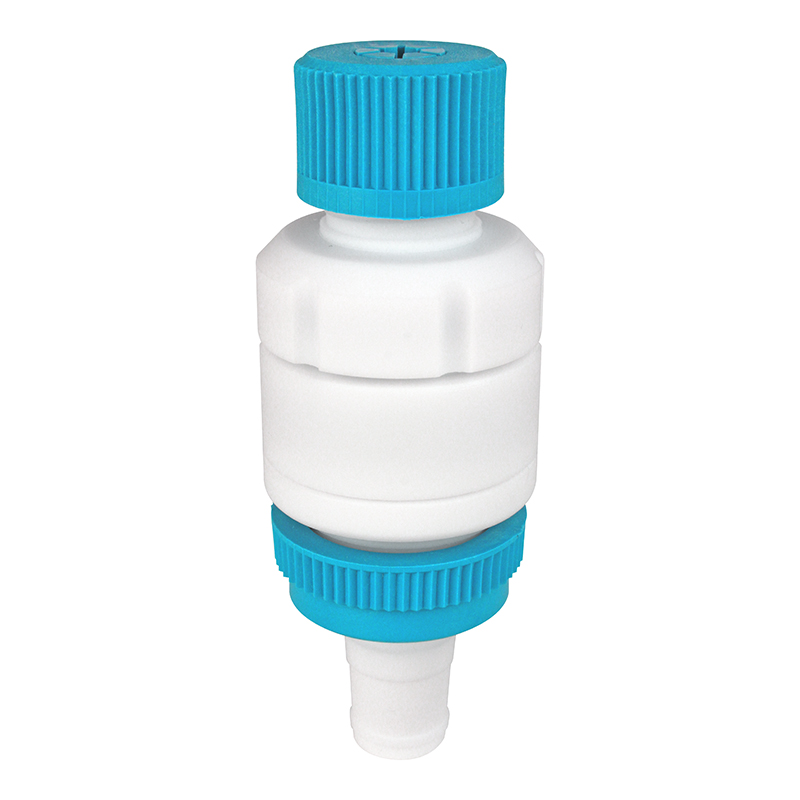

CG-2077-U 6MM

STIRRER BEARINGS, UNIVERSAL CHEM-VAC, PTFE, GLASS BALL BEARING, 6MM

FLAKE-FREE
Chemically Resistant
Maximum 500 RPM
Vacuum (~5 Torr) and Pressure (~3 PSI)
Polymer Blend Sleeve Provides Excellent Wear Resistance
For Use with Polished Glass, PTFE or Stainless-Steel Stirrer Shafts

Universal Chem-Vac™ PTFE stirrer bearing provides a VACUUM TIGHT FLAKE-FREE SEAL on GLASS, PTFE or S.S. stir shafts. Upper portion of bearing rotates with the stirrer shaft providing a flake-free seal. The bearing consists of a PTFE standard taper body, Glass filled polypropylene screw cap, PEEK®/PTFE sleeve and a glass filled polypropylene loosening nut and a specially designed glass ball-bearing for rigidity and smoothness of operation. The polymer blend sleeve provides a long-lasting seal for use up to 500 RPM. Loosening nut above the standard taper inner joint allows easy and quick removal. Bearing is 44mm OD at its widest point.

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-2077-U-006	Chem-Stir 6mm, Bearing/Guide 45mm, 19/22	EACH	✱	$610.00	Call for Availability	Qty:
✱ Chemistry Equipment and Hardware Product line
