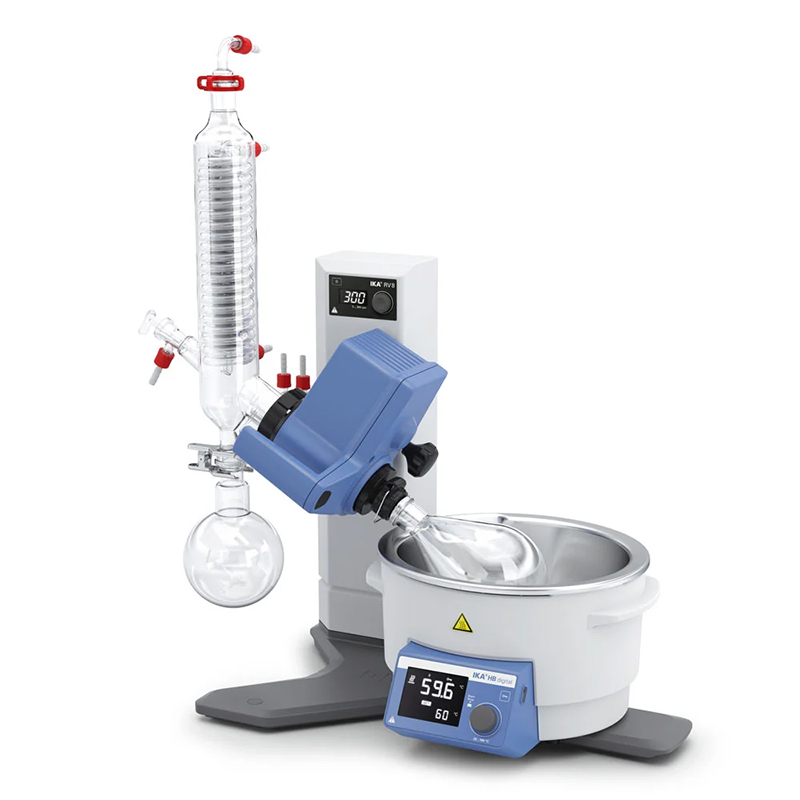

RV 8 V ROTARY EVAPORATOR WITH VERTICAL HIGH-EFFICIENCY CONDENSER GLASSWARE PACKAGE, 100-240VAC, 50/60HZ, IKA

CG-1339-A RV 8

RV 8 V ROTARY EVAPORATOR WITH VERTICAL HIGH-EFFICIENCY CONDENSER GLASSWARE PACKAGE, 100-240VAC, 50/60HZ, IKA

The rotary evaporator RV 8 is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the vertical condenser makes extremely efficient use of the 1500cm² cooling surface. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes

  • Heating bath with 4L volume
  • Integrated safety lift-out function in case of power failure
  • Package includes Woulff bottle
  • Water/oil heating bath with carrying handles
  • Locking button for fixing heating bath temperature
  • Clearly legible, glass-covered, black-and-white display panel
  • Locking mechanism: red indicator shows unlocked position of the vapor tube
  • Manual lift for precise positioning of the glassware
  • Adjustable immersion angle
  • Single-handed manual lift handling, suitable for left and right-handed operators
  • Speed range: 5 - 300RPM
  • Low device voltage (24V) ensures user safety
  • Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
  • High-efficiency condenser with 1500cm² cooling surface - low space requirements
  • Compatible with the entire range of IKA RV 10 glassware
  • Available with Coated or Non-Coated Glassware
Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1339-A-008
RV 8 V Rotary Evaporator with Vertical High-Efficiency Condenser Glassware Package, 100-240VAC, 50/60Hz, IKA
EACH
†
$4,925.00
Call for Availability
Wishlist
SKU: CG-1339-A-C08
RV 8 V Rotary Evaporator with Coated Vertical High-Efficiency Condenser Glassware Package, 100-240VAC, 50/60Hz, IKA
EACH
†
$5,202.00
Call for Availability
Wishlist
  • † Reusable Glass/Plastics
Type of cooling Vertical
Cooling surface 1500cm²
Motor principle DC
Speed range 5 - 300RPM
Speed tolerance set rotation speed < 100rpm ±1RPM
Speed tolerance set rotation speed > 100rpm ±1%
Lift Manual
Stroke 120mm
Heating temperature range Room temp. - 180°C
Heat output 1400W
Set temperature resolution 1K
Filling volume max. 4L
Dimensions (W x H x D) 510 x 490 x 345mm
Weight 25.76kg
Permissible ambient temperature 5 - 40°C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 20
Voltage 100 - 240V
Frequency 50/60Hz
Power input 1500W
DC Voltage 24V
