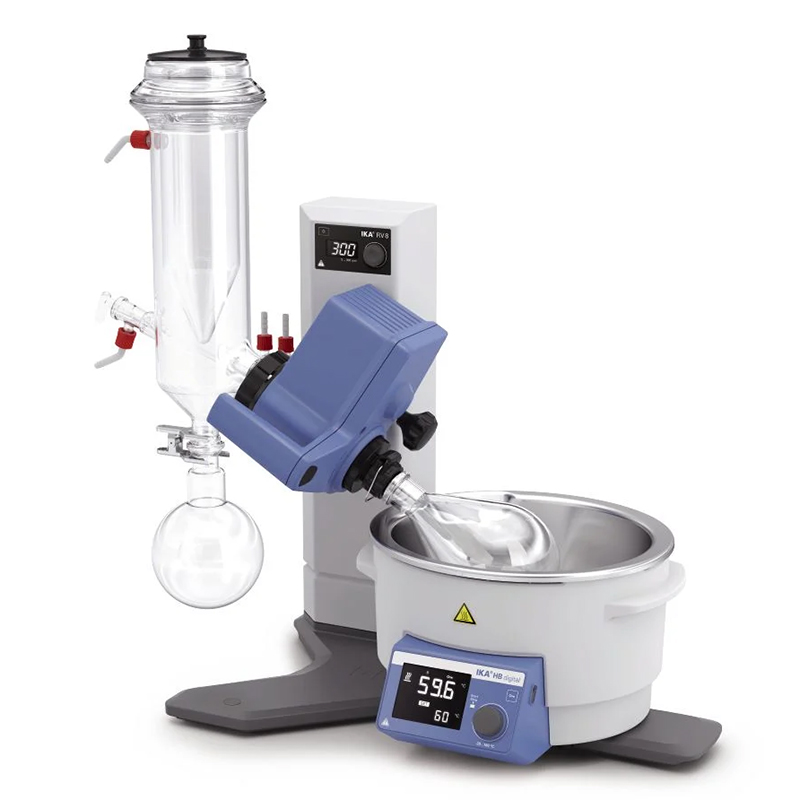

RV 8 ROTARY EVAPORATOR WITH VERTICAL DRY ICE CONDENSER GLASSWARE PACKAGE, 100-240VAC, 50/60HZ, IKA

CG-1339-B RV 8

RV 8 ROTARY EVAPORATOR WITH VERTICAL DRY ICE CONDENSER GLASSWARE PACKAGE, 100-240VAC, 50/60HZ, IKA

The IKA Rotary Evaporator range gets a new family member - the RV 8. This new distilling system completes the existing series by adding a functional basic model. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks.

  • Manual lift with integrated safety “lift-out-function“
  • Water/oil heating bath with integrated ergonomic carrying handles
  • Key-button with locking function for the heating bath temperature
  • Adjustable immersion angle
  • Digital displays for rotation speed and heating bath temperature
  • Single-hand operation; ambidextrous design
  • Speed range 5 – 300RPM
  • Additional user safety through reduced 24V power requirements within the unit
  • Compatible with the complete range of IKA RV 10 glassware
  • New clamp mechanism
  • Available with Coated or Non-Coated Glassware
Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1339-B-008
RV 8 Rotary Evaporator with Dry Ice Condenser Glassware Package, 100-240VAC, 50/60Hz, IKA
EACH
†
Call for Availability
SKU: CG-1339-B-C08
RV 8 Rotary Evaporator with Coated Dry Ice Condenser Glassware Package, 100-240VAC, 50/60Hz, IKA
EACH
†
Call for Availability
  • † Reusable Glass/Plastics
Type of cooling Dry ice condenser
Cooling surface 620cm²
Motor principle DC
Speed range 5 – 300RPM
Speed tolerance set rotation speed < 100rpm ±1RPM
Speed tolerance set rotation speed > 100rpm ±1%
Lift Manual
Stroke 120mm
Heating temperature range Room temp. - 180°C
Heat output 1300W
Set temperature resolution 1K
Filling volume max. 3L
Dimensions (W x H x D) 510 x 490 x 345mm
Weight 15.5kg
Permissible ambient temperature 5 - 40°C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 20
Voltage 100 - 240V
Frequency 50/60Hz
Power input 1400W
DC Voltage 24V
