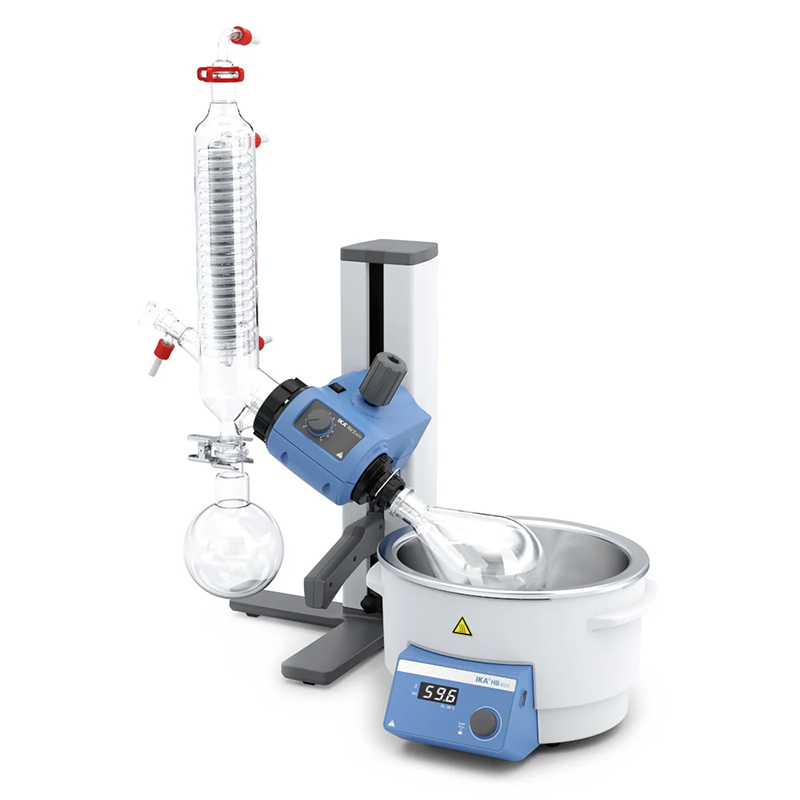

RV 3 V ROTARY EVAPORATOR WITH VERTICAL HIGH-EFFICIENCY CONDENSER GLASSWARE PACKAGE, 100-240VAC, 50/60HZ, IKA

CG-1339-A RV 3

RV 3 V ROTARY EVAPORATOR WITH VERTICAL HIGH-EFFICIENCY CONDENSER GLASSWARE PACKAGE, 100-240VAC, 50/60HZ, IKA

The rotary evaporator RV 3 is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500cm² cooling surface.

  • Heating bath with 4L volume for up to 99°C
  • Water heating bath with digital temperature display and carrying handles
  • Mechanical lift end-point safety stop
  • Locking mechanism: red indicator shows unlocked position of the vapor tube
  • Manual lift for precise positioning of the glassware
  • Adjustable immersion angle
  • Single-handed manual lift handling, suitable for left and right-handed operators
  • Stepless speed setting with dial control and speed display
  • Speed range: 20-300 RPM
  • Low device voltage (24V) ensures user safety
  • Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
  • High-efficiency condenser with 1500cm² cooling surface - low space requirements
  • Compatible with the entire range of IKA RV 10 glassware
  • Available with Coated or Non-Coated Glassware
Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1339-A-003
RV 3 V Rotary Evaporator with Vertical High-Efficiency Condenser Glassware Package, 100-240VAC, 50/60Hz, IKA
EACH
†
$3,955.00
Call for Availability
Wishlist
SKU: CG-1339-A-C03
RV 3 V Rotary Evaporator with Coated Vertical High-Efficiency Condenser Glassware Package, 100-240VAC, 50/60Hz, IKA
EACH
†
$4,215.00
Call for Availability
Wishlist
  • † Reusable Glass/Plastics
Type of cooling Vertical
Cooling surface 1500cm²
Motor principle DC
Speed range 20 - 300 RPM
Speed tolerance set rotation speed < 100rpm ±1RPM
Speed tolerance set rotation speed > 100rpm ±1%
Lift Manual
Stroke 150mm
Heating temperature range Room Temp. - 99°C
Dimensions (W x H x D) 440 x 530 x 330mm
Weight 28.3kg
Permissible ambient temperature 5 - 40°C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 20
Voltage 100 - 240V
Frequency 50/60Hz
Power input 1400W
