CG-1339-B RV 10

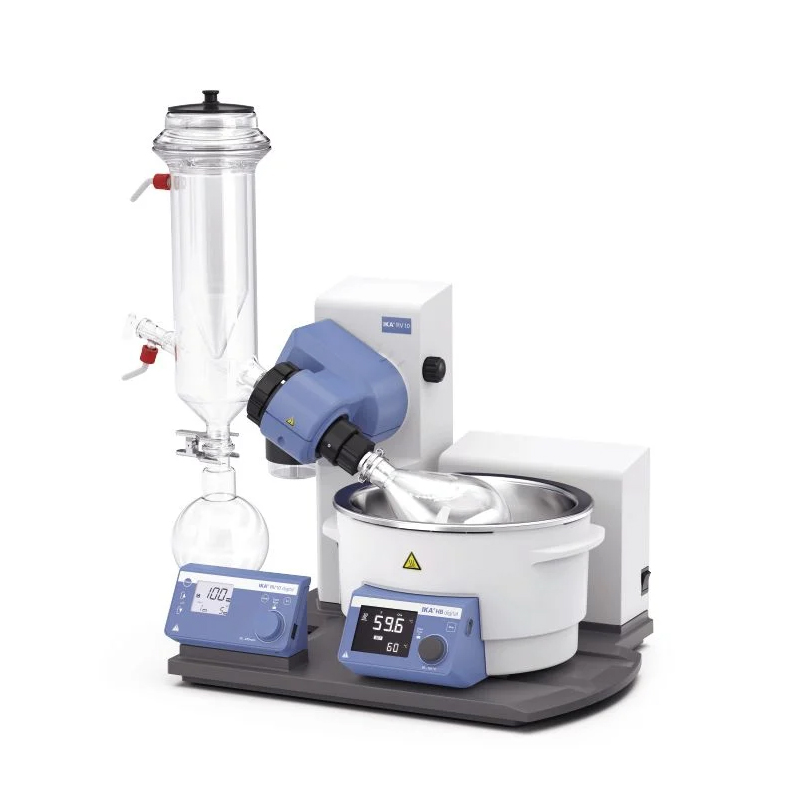

RV 10 DIGITAL ROTARY EVAPORATOR WITH VERTICAL DRY ICE CONDENSER GLASSWARE PACKAGE, 100-240VAC 50/60HZ, IKA

The RV 10 digital represents the continual enhancement of the IKA RV 10 Rotary Evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion. The package with dry ice condenser is particularly suitable for the distillation of low-boiling solvents.

  • 4-liter heating bath
  • Universal water/oil heating bath
  • Vertical glassware
  • Motorized lift with “safety-stop” function
  • RS 232 and IR interface
  • Optimized heating bath volume for fast heat-up
  • Dry Ice 620 cm² condenser unit
  • Rugged design
  • Ergonomically placed handles on Heating bath
  • Smooth start
  • Left-right interval
  • Timer function
  • Dry-run protection
  • Safety temperature circuits
  • Lower-end stop
  • Choice of coated glassware
  • Push-off mechanism to loosen tight fitted glassware
  • Easy and safe operation due to ergonomical design of the user interface
  • Available with Coated or Non-Coated Glassware

In accordance with IKA Terms and Conditions of Sale, the warranty period is 24 months. For claims under the warranty please contact your local dealer. You may also send the device direct to our factory, enclosing the delivery invoice and giving reasons for the claim. You will be liable for freight costs.

The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use, insufficient care or maintenance not carried out in accordance with the instructions in the operating instructions.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1339-B-010
RV 10 Digital Rotary Evaporator with Vertical Dry Ice Condenser Glassware Package, 100-240VAC 50/60Hz, IKA
EACH
$7,069.00
Call for Availability
SKU: CG-1339-B-C10
RV 10 Digital Rotary Evaporator with Coated Vertical Dry Ice Condenser Glassware Package, 100-240VAC 50/60Hz, IKA
EACH
$7,269.00
Call for Availability
  • † Reusable Glass/Plastics
Type of Cooling Dry Ice Condenser
Cooling Surface 620cm²
Motor Principle DC
Speed Range 5 - 280RPM
Reversible Direction of Rotation Yes
Lift Motor
Stroke 140mm
Heating Temperature Range Room Temp. - 180°C
Heat Output 1350W
Set Temperature Resolution 1K
Filling Volume Max. 3L
Timer Yes
Dimensions (W x H x D) 500 x 430 x 440mm
Weight 20kg
Permissible Ambient Temperature 5 - 40°C
Permissible Relative Humidity 80%
Protection Class According to DIN EN 60529 IP 20
RS 232 Interface Yes
Voltage 100 - 240V
Frequency 50/60Hz
Power input 1400W
