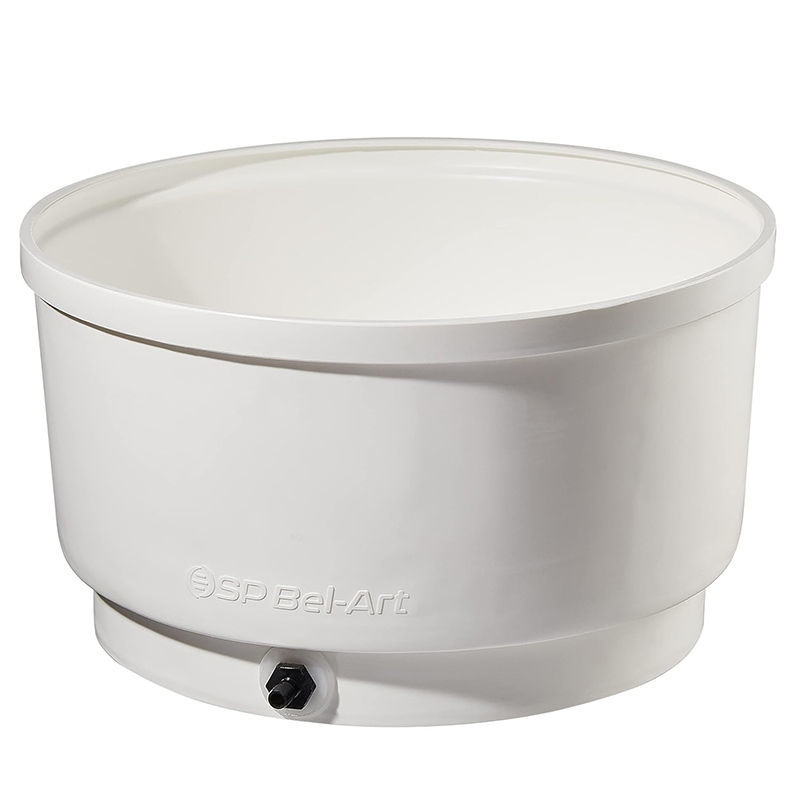

BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, POROUS, 24 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES

CG-1413-09

BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, POROUS, 24 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES

Filtration Funnels

Filter large volumes quickly with a polyethylene table-top buchner funnel using your choice of filter plate.

Removable hose barb connector accepts 12.7mm (1/2") I.D. tube and threads into 3/4" NPT bung on the funnel.

Fixed or removable filter plates are supported by a multiple ring grid; HDPE, 6.4mm (1/4") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used with porous filter plates, available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF).

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1413-09
Buchner Funnel, Table Top, Polyethylene, Porous, 24in ID, Medium Porosity, Fixed Plate
EACH
✱
$2,565.70
5
Wishlist
SKU: CG-1413-10
Buchner Funnel, Table Top, Polyethylene, Porous, 24in ID, Coarse Porosity, Fixed Plate
EACH
✱
$2,571.95
Call for Availability
Wishlist
SKU: CG-1413-12
Buchner Funnel, Table Top, Polyethylene, Porous, 24in ID, Coarse Porosity, Removable Plate
EACH
✱
$2,654.95
1
Wishlist
  • ✱ Chemistry Equipment and Hardware Product line
Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1413-424
Cover/Lid LDPE, 24in ID Buchner Funnel
$321.15
Call for Availability
Wishlist
SKU: CG-1413-524
Hold Down Ring LDPE, 24in ID Buchner Funnel
EACH
✱
$373.45
Call for Availability
Wishlist
  • ✱ Chemistry Equipment and Hardware Product line
  FIXED PLATE REMOVABLE PLATE FUNNEL ID (MM) FUNNEL ID (IN) OAH (MM) OAH (IN) RIM TO PLATE (MM) POROSITY
CG-1413-09 X   610 24 330 13 267 MEDIUM
CG-1413-10 X   610 24 330 13 267 COARSE
CG-1413-12   X 610 24 330 13 267 COARSE
