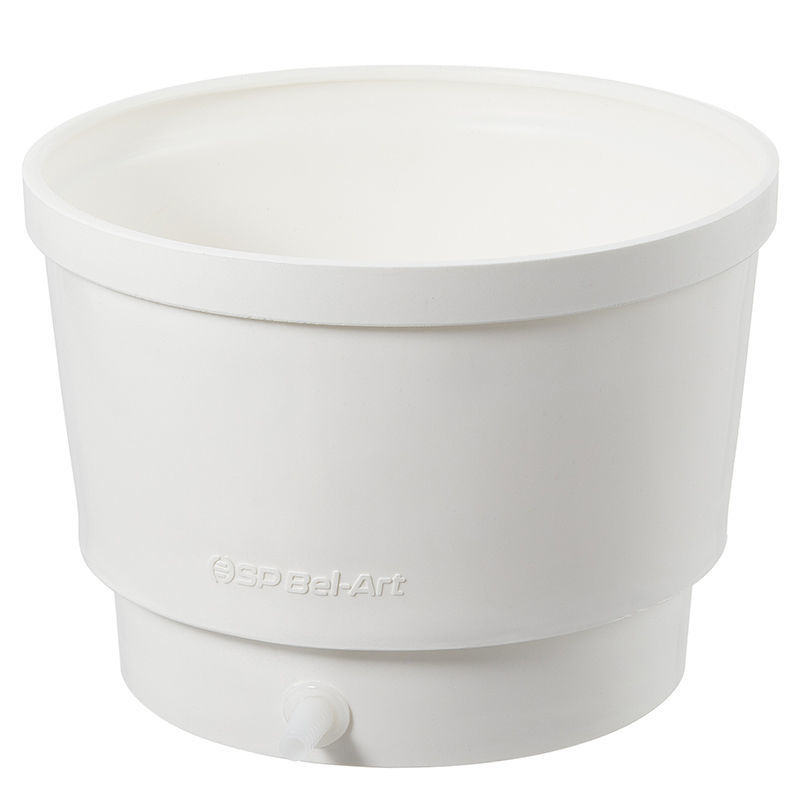

BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, PERFORATED, 10.25 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES

Filtration Funnels

Filter large volumes quickly with a polyethylene table-top buchner funnel using your choice of filter plate.

Welded hose barb connector accepts 12.7mm (1/2") I.D. tube and threads into 3/4" NPT bung on the funnel. Welded hose barbs allow the port to be as low as possible to the inside bottom of the funnel.

Fixed or removable perforated filter plates are made of 4.8mm (3/16") thick HDPE with 4.8mm (3/16") perforations on 11mm (7/16") centers.

Perforated filter plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF).

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1413-17
Buchner Funnel, Table Top, Polyethylene, Perforated, 10.25in ID, Fixed Plate
EACH
4
CG-1413-18
Buchner Funnel, Table Top, Polyethylene, Perforated, 10.25in ID, Removable Plate
EACH
5
  ✱ Chemistry Equipment and Hardware Product line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1413-30Filter Paper, 260mm FunnelP100
9
CG-1413-31Filter Paper, 457mm FunnelP100
2
CG-1413-32Filter Paper, 610mm FunnelP100
3
  ✱ Chemistry Equipment and Hardware Product line
 FIXED PLATEREMOVABLE PLATEFUNNEL ID (MM)FUNNEL ID (IN)OAH (MM)OAH (IN)RIM TO PLATE (MM)
CG-1413-17X 26010.251787127
CG-1413-18 X26010.251787127
