CG-1413-01

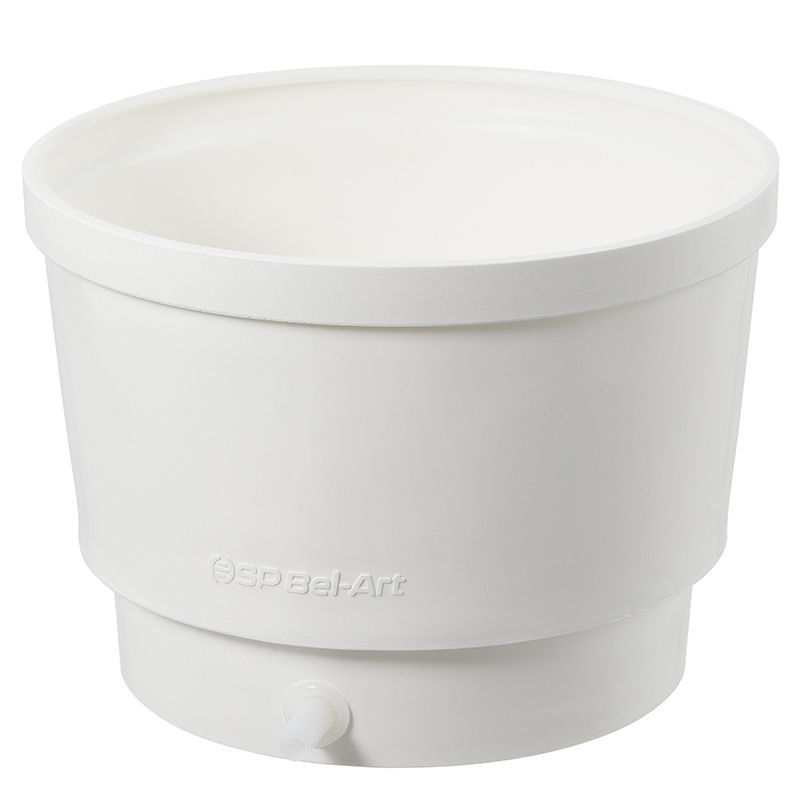

BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, POROUS, 10.25 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES

Name: BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, POROUS, 10.25 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES
SKU: CG-1413-01
Price: 497.35 USD
Availability: InStock

Filtration Funnels

Filter large volumes quickly with a polyethylene table-top buchner funnel using your choice of filter plate.

Welded hose barb connector accepts 12.7mm (1/2") I.D. tube. Welded hose barbs allow the port to be as low as possible to the inside bottom of the funnel.

Fixed or removable filter plates are supported by a multiple ring grid; HDPE, 6.4mm (1/4") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used with porous filter plates, available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF).

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-1413-01	Buchner Funnel, Table Top, Polyethylene, Porous, 10.25in ID, Medium Porosity, Fixed Plate	EACH	✱	$500.90	13	Qty:
SKU: CG-1413-02	Buchner Funnel, Table Top, Polyethylene, Porous, 10.25in ID, Coarse Porosity, Fixed Plate	EACH	✱	$497.35	Call for Availability	Qty:
SKU: CG-1413-03	Buchner Funnel, Table Top, Polyethylene, Porous, 10.25in ID, Medium Porosity, Removable Plate	EACH	✱	$500.90	2	Qty:
SKU: CG-1413-04	Buchner Funnel, Table Top, Polyethylene, Porous, 10.25in ID, Coarse Porosity, Removable Plate	EACH	✱	$505.75	Call for Availability	Qty:
✱ Chemistry Equipment and Hardware Product line

Replacement Parts
Specifications/Manuals
Suggested Products

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-1413-30	Filter Paper, 260mm Funnel	P100	✱	$134.50	1	Qty:
SKU: CG-1413-31	Filter Paper, 457mm Funnel	P100	✱	$250.75	7	Qty:
SKU: CG-1413-410	Cover/Lid LDPE, 10.25in ID Buchner Funnel	EACH	✱	$268.80	Call for Availability	Qty:
SKU: CG-1413-510	Hold Down Ring LDPE, 10.25in ID Buchner Funnel	EACH	✱	$287.55	Call for Availability	Qty:
SKU: CG-1413-32	Filter Paper, 610mm Funnel	P100	✱	$323.85	5	Qty:
✱ Chemistry Equipment and Hardware Product line

	FIXED PLATE	REMOVABLE PLATE	FUNNEL ID (MM)	FUNNEL ID (IN)	OAH (MM)	OAH (IN)	RIM TO PLATE (MM)	POROSITY
CG-1413-01	X		260	10.25	178	7	127	MEDIUM
CG-1413-02	X		260	10.25	178	7	127	COARSE
CG-1413-03		X	260	10.25	178	7	127	MEDIUM
CG-1413-04		X	260	10.25	178	7	127	COARSE

CG-1413 FILTER PAPER

FILTER PAPER FOR TABLE TOP BUCHNER FUNNELS

From $134.50

*In-Stock
