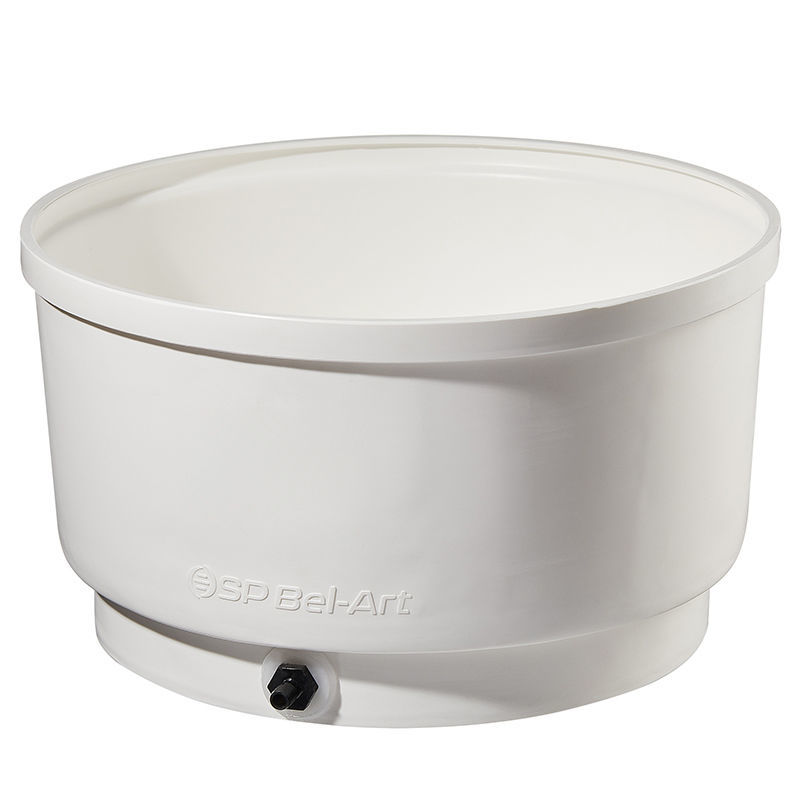

BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, POROUS, 18 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES

CG-1413-05

BUCHNER FUNNELS, TABLE TOP, POLYETHYLENE, POROUS, 18 INCH FUNNEL ID, FIXED OR REMOVABLE PLATES

Filtration Funnels

Filter large volumes quickly with a polyethylene table-top buchner funnel using your choice of filter plate.

Welded hose barb connector accepts 12.7mm (1/2") I.D. tube. Welded hose barbs allow the port to be as low as possible to the inside bottom of the funnel.

Fixed or removable filter plates are supported by a multiple ring grid; HDPE, 6.4mm (1/4") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used with porous filter plates, available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF).

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1413-05
Buchner Funnel, Table Top, Polyethylene, Porous, 18in ID, Medium Porosity, Fixed Plate
EACH
✱
$1,178.30
6
Wishlist
SKU: CG-1413-06
Buchner Funnel, Table Top, Polyethylene, Porous, 18in ID, Coarse Porosity, Fixed Plate
EACH
✱
$1,225.70
Call for Availability
Wishlist
SKU: CG-1413-07
Buchner Funnel, Table Top, Polyethylene, Porous, 18in ID, Medium Porosity, Removable Plate
EACH
✱
$1,201.60
Call for Availability
Wishlist
SKU: CG-1413-08
Buchner Funnel, Table Top, Polyethylene, Porous, 18in ID, Coarse Porosity, Removable Plate
EACH
✱
$1,225.70
4
Wishlist
  • ✱ Chemistry Equipment and Hardware Product line
Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1413-418
Cover/Lid LDPE, 18in ID Buchner Funnel
EACH
✱
$288.75
Call for Availability
Wishlist
SKU: CG-1413-518
Hold Down Ring LDPE, 18in ID Buchner Funnel
EACH
✱
$333.85
Call for Availability
Wishlist
  • ✱ Chemistry Equipment and Hardware Product line
  FIXED PLATE REMOVABLE PLATE FUNNEL ID (MM) FUNNEL ID (IN) OAH (MM) OAH (IN) RIM TO PLATE (MM) POROSITY
CG-1413-05 X   457 18 285.75 11.25 229 MEDIUM
CG-1413-06 X   457 18 285.75 11.25 229 COARSE
CG-1413-07   X 457 18 285.75 11.25 229 MEDIUM
CG-1413-08   X 457 18 285.75 11.25 229 COARSE
