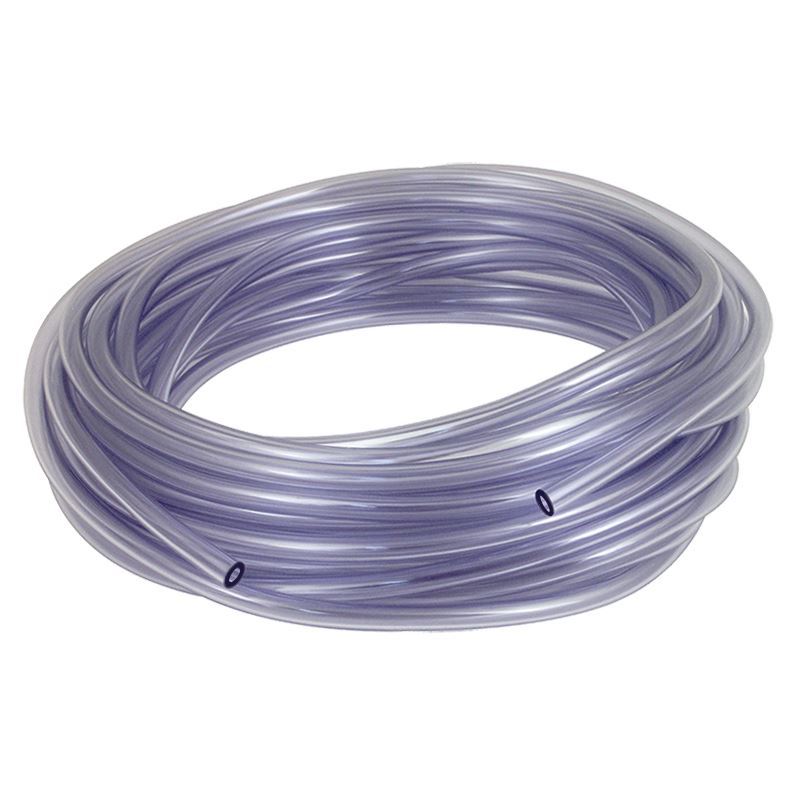

CG-735-V

PVC LABORATORY HEAVY WALL VACUUM TUBING, EXCELON

Laboratory Tubing

Equivalent to Tygon® R3603 & Nalgene™ 180
Excellent alternative to latex
More cost-effective than silicone
Inner bore prevents any build-up
Withstands autoclaving & gamma sterilization
Durometer hardness (shore A): 55
Temperature range: -58°F to 165°F
Meets FDA standards (CFR 21, Part 175.300)

Other sizes are available, please contact us for details: [email protected]

PLEASE NOTE: As of 7/15/19 the CG-730 and CG-735 PVC Laboratory and Vacuum Tubing will be transitioning to a blue tinted color. The new pigment package gives the resin a Blue tint instead of a Yellow tint. All other raw materials in the formulation are the same.

Item Number	Item Description	PQ	PL	Qty Avail
SKU: CG-735-V-250	Heavy Wall Vacuum Tubing, Excelon, 1/4" ID x 5/8" OD x 3/16" Wall x 10' Long	ROLL	✱	132
SKU: CG-735-V-375	Heavy Wall Vacuum Tubing, Excelon, 3/8" ID x 7/8" OD x 1/4" Wall x 10' Long	ROLL	✱	40
SKU: CG-735-V-500	Heavy Wall Vacuum Tubing, Excelon, 1/2" ID x 1-1/8" OD x 5/16" Wall x 10' Long	ROLL	✱	70
✱ Chemistry Equipment and Hardware Product line

Replacement Parts
Specifications/Manuals
Suggested Products

Compare Excelon PVC Laboratory & Vacuum Tubing to Tygon R-3603 Laboratory Tubing

Offering a significantly lower cost, Excelon PVC Lab & Vac Tubing has the same specifications as Tygon R-3603, providing a cost-efficient solution without sacrificing performance.

Properties**	Excelon PVC Laboratory & Vacuum Tubing	Tygon R-3603 Laboratory & Vacuum Tubing
Hardness, Shore A	55	55
Specific Gravity	1.18	1.18
Elongation at Break, %	450	450
Brittle Temperature, °F	-58	-58
Tensile Strength, psi	1650	1650
Max. Operating Temp., °F	165	165

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Documentation

SPECIFICATIONS

CG-730

PVC LABORATORY STANDARD WALL TUBING, EXCELON

*In-Stock

Laboratory Tubing

CG-1975-30

TUBING CUTTERS

*In-Stock

CLS-1436-C

TUBING CLAMPS, 12 POSITION, ACETAL, FLOW CONTROL, FOR 0.45 INCH OD TUBING, TUBING SET, CG BIOSCIENCES

Clamps

CLS-1436-SP4

TUBING CLAMP, SINGLE POSITION, POLYPROPYLENE, FOR 0.25" OD TUBING, CG BIOSCIENCES

*In-Stock

CLS-1436-SP5

TUBING CLAMP, SINGLE POSITION, POLYPROPYLENE, FOR 0.50" OD TUBING, CG BIOSCIENCES

*In-Stock

CG-8516

FLASKS, FILTERING, HEAVY WALL, PROTECTIVE COATING*, TUBLATION, GRADUATED, PYREXPLUS®

Filtering Flasks

CG-1208

CONDENSERS, CONCENTRATORS, DISTILLATION HEADS, DISTILLING

Concentrator

CG-1211

CONDENSERS, FRIEDRICHS

Friedrichs

CG-1209-A

CONDENSERS, DEWAR TYPE

Dewar Type

CG-1219

CONDENSERS, DOUBLE COILS

CG-1210

CONDENSERS, FRIEDRICHS

Friedrichs

CG-1210-HC

CONDENSERS, FRIEDRICHS, REMOVABLE HOSE CONNECTIONS

CG-1210-HC

CONDENSERS, FRIEDRICHS, REMOVABLE HOSE CONNECTIONS

CG-1214

CONDENSERS, GRAHAM

Graham

CG-1072-B

ADAPTERS, DISTILLATION

CG-1404

FILTER APPARATUS

Filtration Apparatus Assembly

CLS-2011

50ML CENTRIFUGE TUBE FILTERS, TUBE TOP FILTERS AND STANDS

Tubes, Centrifuge

CG-1049-M

ADAPTER, VACUUM, FOR 2L DISPOSABLE FILTER FUNNEL

*In-Stock

Vacuum Adapters

CGE-2009

BOTTLE TOP VACUUM FILTER SYSTEM WITH MOLDED GRADUATIONS, PES, 500ML

*In-Stock

CGN-2009 PES

BOTTLE TOP VACUUM FILTER SYSTEM WITH MOLDED GRADUATIONS, PES MEMBRANE, STERILE, NEST

*In-Stock

Nest Cell and Tissue Culture Plastics

CG-8514

FLASKS, FILTERING, HEAVY WALL, TUBULATION, GRADUATED, PYREX®

Filtering Flasks

CG-8518

FLASKS, FILTERING, HEAVY WALL, REPLACEABLE TUBULATIONS, PYREX

Filtering Flasks

CG-8522

FLASKS, FILTERING, MICRO, TUBULATION, PYREX

Filtering Flasks

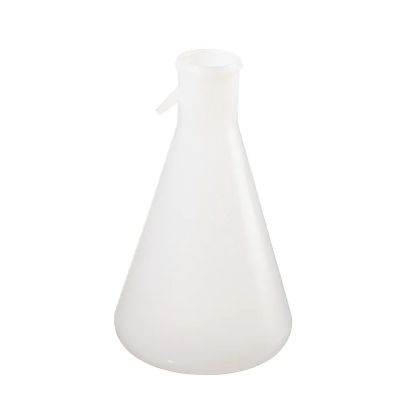

CG-8521
