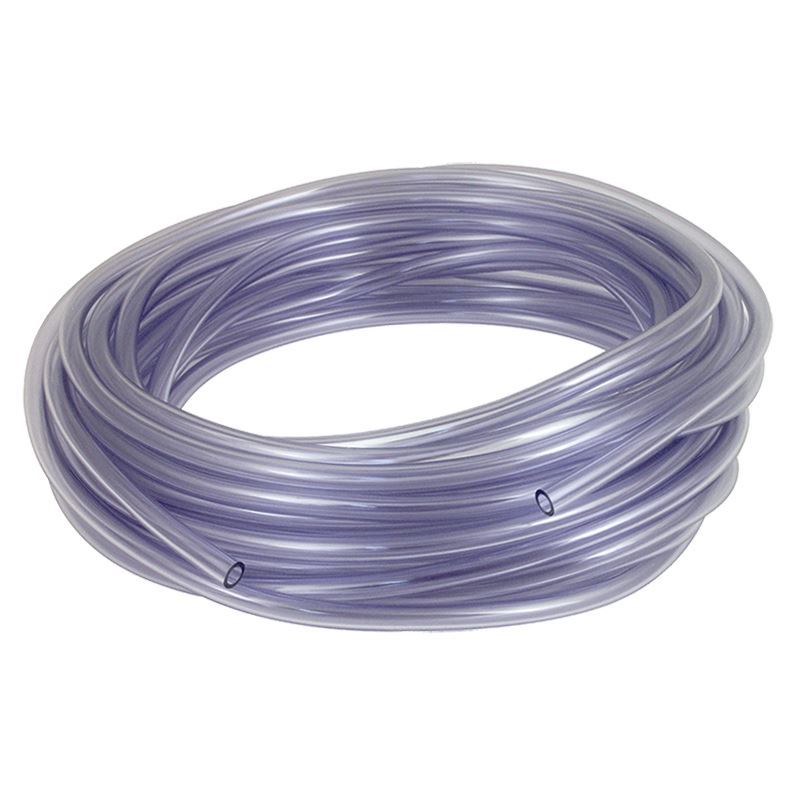

CG-730

PVC LABORATORY STANDARD WALL TUBING, EXCELON

Laboratory Tubing

Equivalent to Tygon® R3603 & Nalgene™ 180
Excellent alternative to latex
More cost-effective than silicone
Inner bore prevents any build-up
Withstands autoclaving & gamma sterilization
Durometer hardness (shore A): 55
Temperature range: -58°F to 165°F
Meets FDA standards (CFR 21, Part 175.300)

A low-cost yet high-quality solution for the transfer of liquids and gases, Excelon Laboratory and Vacuum Tubing provides premium performance, flexibility, and versatility. With a smooth-as-glass inner bore and crystal clear design, this Excelon tubing prevents build-up from occurring inside the tube, simplifying changeovers and clean up, and allows for easy monitoring of the flow of gases and liquids. Its proprietary design is made for extreme durability as well as flexibility, giving this PVC tubing the ability to withstand autoclaving and repeated gamma sterilization while also allowing for simplified and expedited set-up.

Metric tubing sizes are available, please contact us for details [email protected]

PLEASE NOTE: As of 7/15/19 the CG-730 and CG-735 PVC Laboratory and Vacuum Tubing will be transitioning to a blue tinted color. The new pigment package gives the resin a Blue tint instead of a Yellow tint. All other raw materials in the formulation are the same.

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-730-006	Std Wall Lab Tubing, Size 6, Excelon, 1/4" ID x 3/8" OD x 1/16" Wall x 50' Long	ROLL	✱	$45.15	16	Qty:
SKU: CG-730-007	Std Wall Lab Tubing, Size 7, Excelon, 1/4" ID x 7/16" OD x 3/32" Wall x 50' Long	ROLL	✱	$71.95	12	Qty:
SKU: CG-730-008	Std Wall Lab Tubing, Size 8, Excelon, 1/4" ID x 1/2" OD x 1/8" Wall x 50' Long	ROLL	✱	$102.95	9	Qty:
SKU: CG-730-009	Std Wall Lab Tubing, Size 9, Excelon, 5/16" ID x 7/16" OD x 1/16" Wall x 50' Long	ROLL	✱	$55.05	33	Qty:
SKU: CG-730-010	Std Wall Lab Tubing, Size 10, Excelon, 5/16" ID x 1/2" OD x 3/32" Wall x 50' Long	ROLL	✱	$80.45	13	Qty:
SKU: CG-730-011	Std Wall Lab Tubing, Size 11, Excelon, 5/16" ID x 9/16" OD x 1/8" Wall x 50' Long	ROLL	✱	$117.00	19	Qty:
SKU: CG-730-012	Std Wall Lab Tubing, Size 12, Excelon, 3/8" ID x 1/2" OD x 1/16" Wall x 50' Long	ROLL	✱	$60.65	42	Qty:
SKU: CG-730-013	Std Wall Lab Tubing, Size 13, Excelon, 3/8" ID x 9/16" OD x 3/32" Wall x 50' Long	ROLL	✱	$95.90	30	Qty:
SKU: CG-730-014	Std Wall Lab Tubing, Size 14, Excelon, 3/8" ID x 5/8" OD x 1/8" Wall x 50' Long	ROLL	✱	$141.00	12	Qty:
SKU: CG-730-015	Std Wall Lab Tubing, Size 15, Excelon, 7/16" ID x 9/16" OD x 1/16" Wall x 50' Long	ROLL	✱	$74.75	7	Qty:
SKU: CG-730-016	Std Wall Lab Tubing, Size 18, Excelon, 1/2" ID x 5/8" OD x 1/16" Wall x 50' Long	ROLL	✱	$86.00	40	Qty:
SKU: CG-730-017	Std Wall Lab Tubing, Size 19, Excelon, 1/2" ID x 11/16" OD x 3/32" Wall x 50' Long	ROLL	✱	$125.55	4	Qty:
SKU: CG-730-018	Std Wall Lab Tubing, Size 20, Excelon, 1/2" ID x 3/4" OD x 1/8" Wall x 50' Long	ROLL	✱	$174.90	3	Qty:
SKU: CG-730-019	Std Wall Lab Tubing, Size 25, Excelon, 5/8" ID x 13/16" OD x 3/32" Wall x 50' Long	ROLL	✱	$156.75	10	Qty:
SKU: CG-730-020	Std Wall Lab Tubing, Size 26, Excelon, 5/8" ID x 7/8" OD x 1/8" Wall x 50' Long	ROLL	✱	$232.65	Call for Availability	Qty:
SKU: CG-730-021	Std Wall Lab Tubing, Size 27, Excelon, 5/8" ID x 15/16" OD x 5/32" Wall x 50' Long	ROLL	✱	$317.85	5	Qty:
✱ Chemistry Equipment and Hardware Product line

Replacement Parts
Specifications/Manuals
Suggested Products

Compare Excelon PVC Laboratory & Vacuum Tubing to Tygon R-3603 Laboratory Tubing

Offering a significantly lower cost, Excelon PVC Lab & Vac Tubing has the same specifications as Tygon R-3603, providing a cost-efficient solution without sacrificing performance.

Properties**	Excelon PVC Laboratory & Vacuum Tubing	Tygon R-3603 Laboratory & Vacuum Tubing
Hardness, Shore A	55	55
Specific Gravity	1.18	1.18
Elongation at Break, %	450	450
Brittle Temperature, °F	-58	-58
Tensile Strength, psi	1650	1650
Max. Operating Temp., °F	165	165

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
