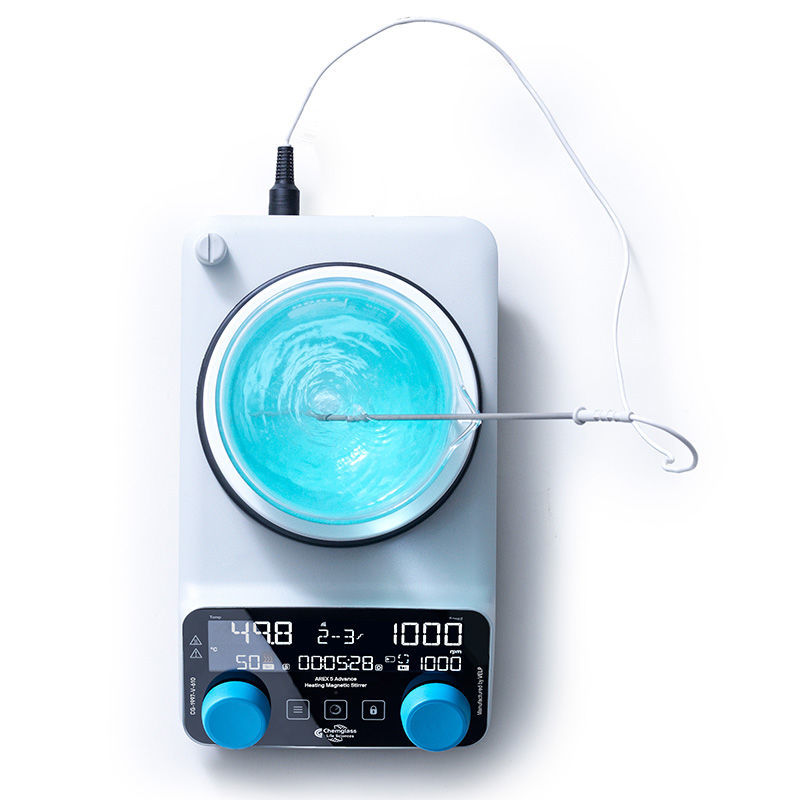

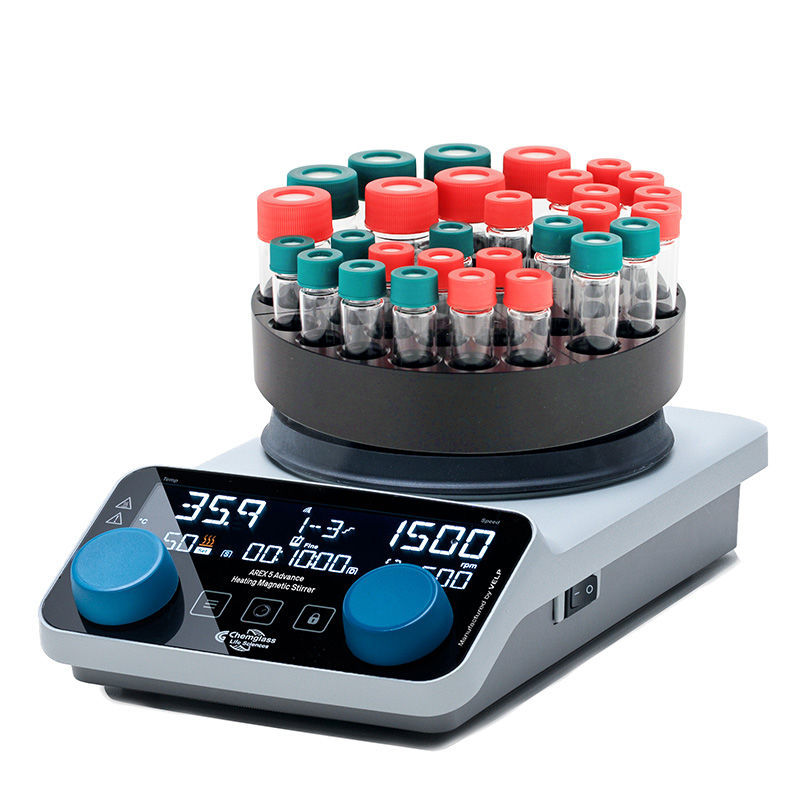

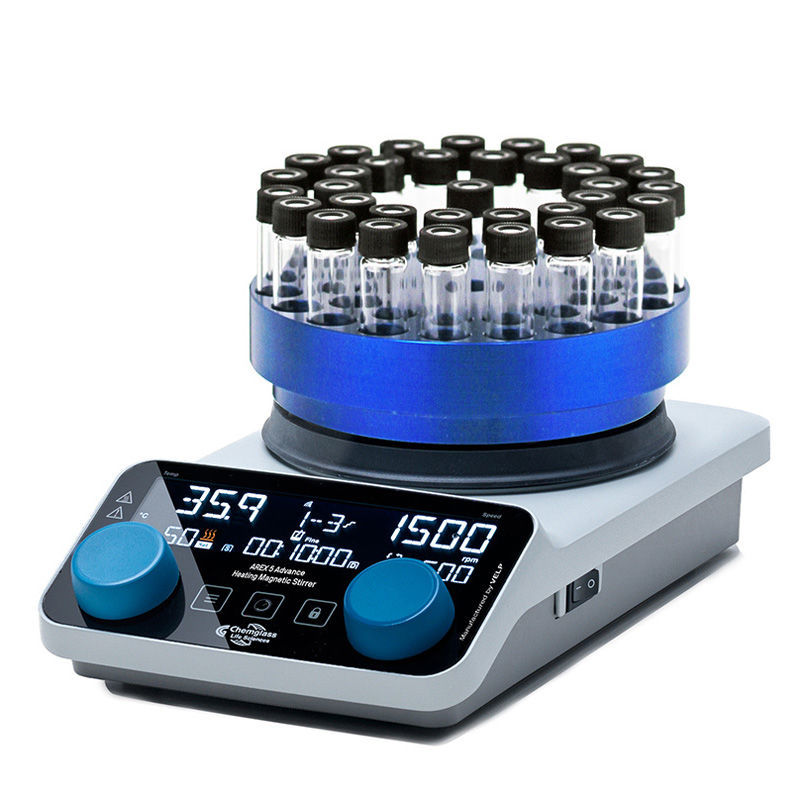

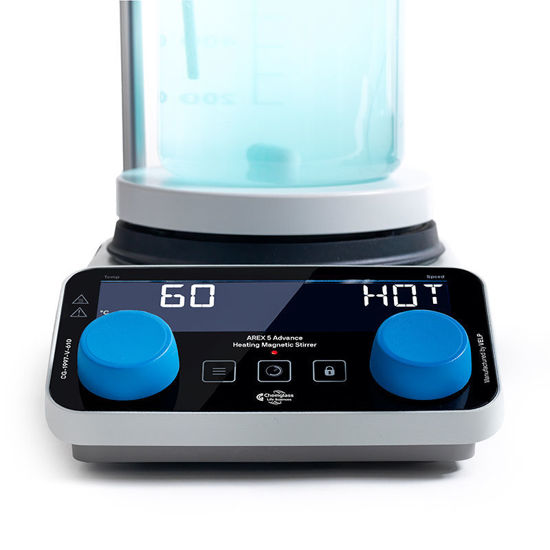

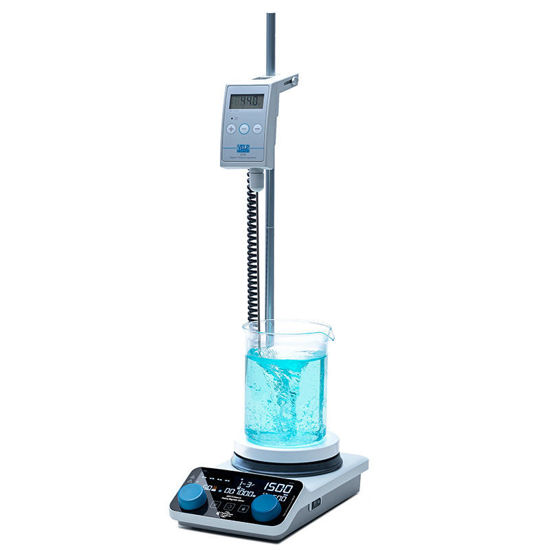

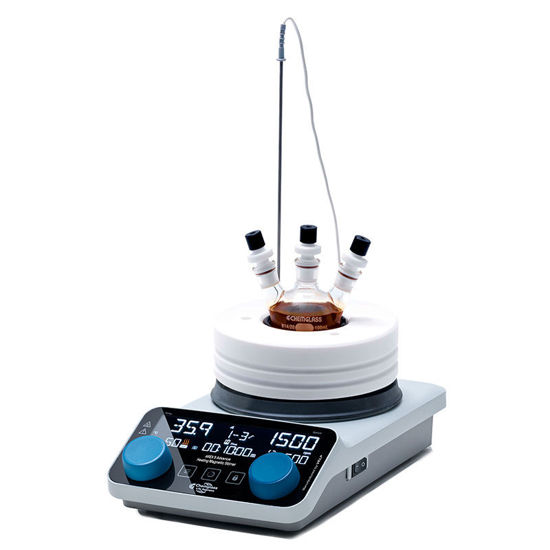

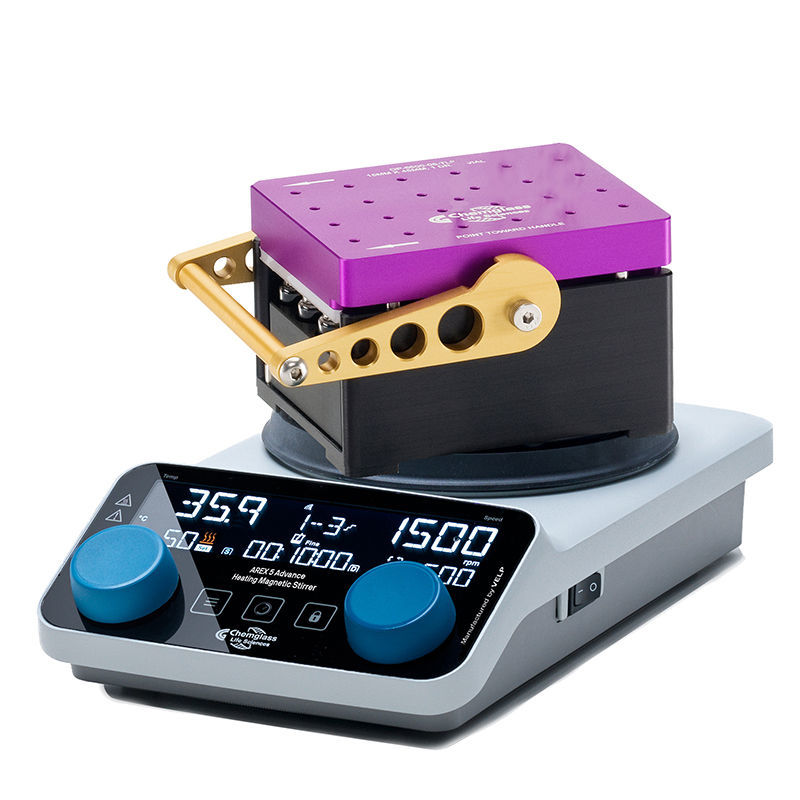

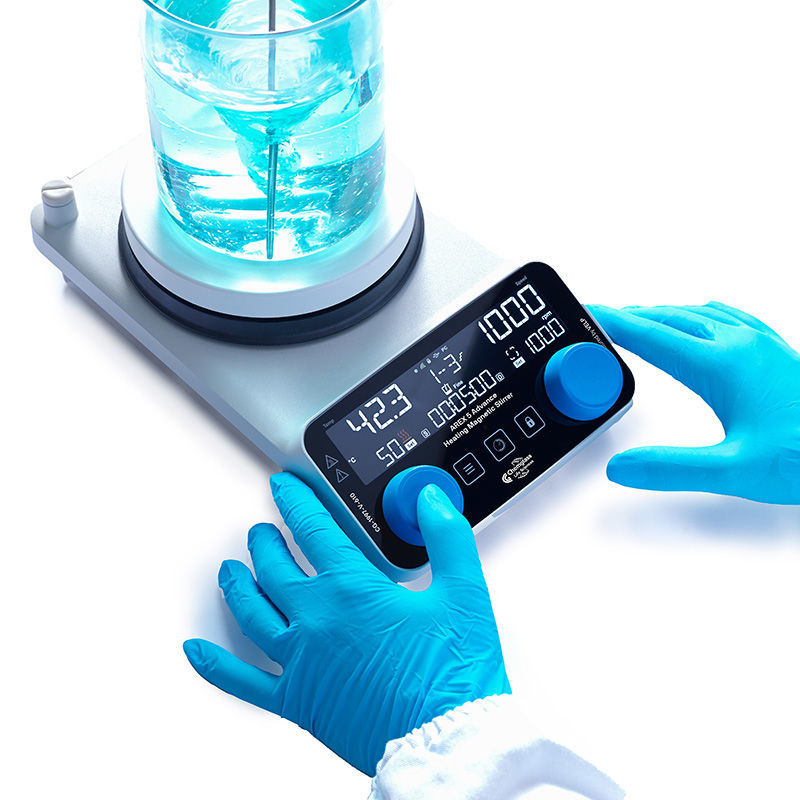

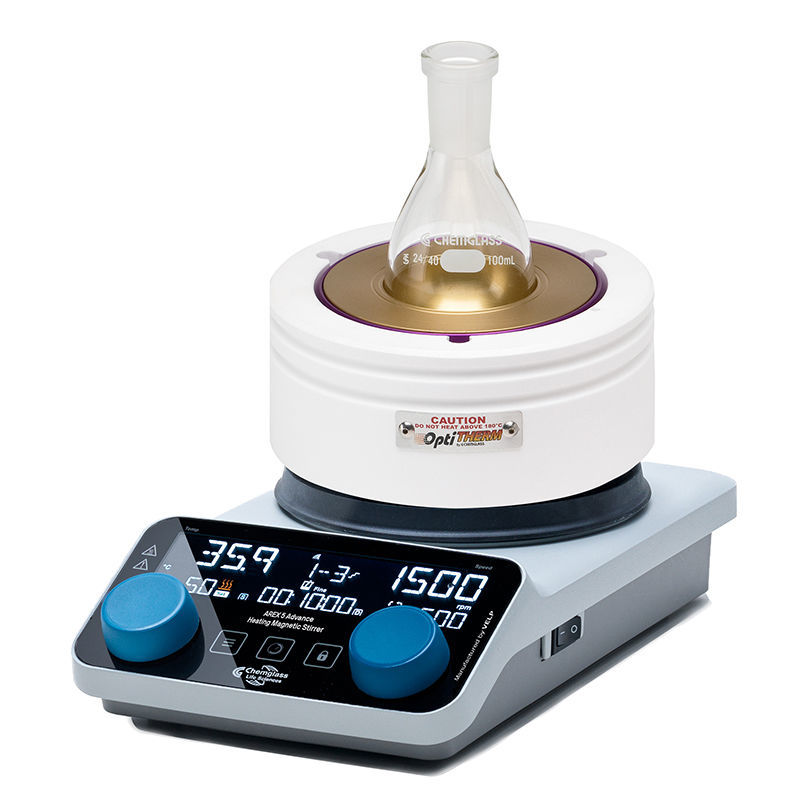

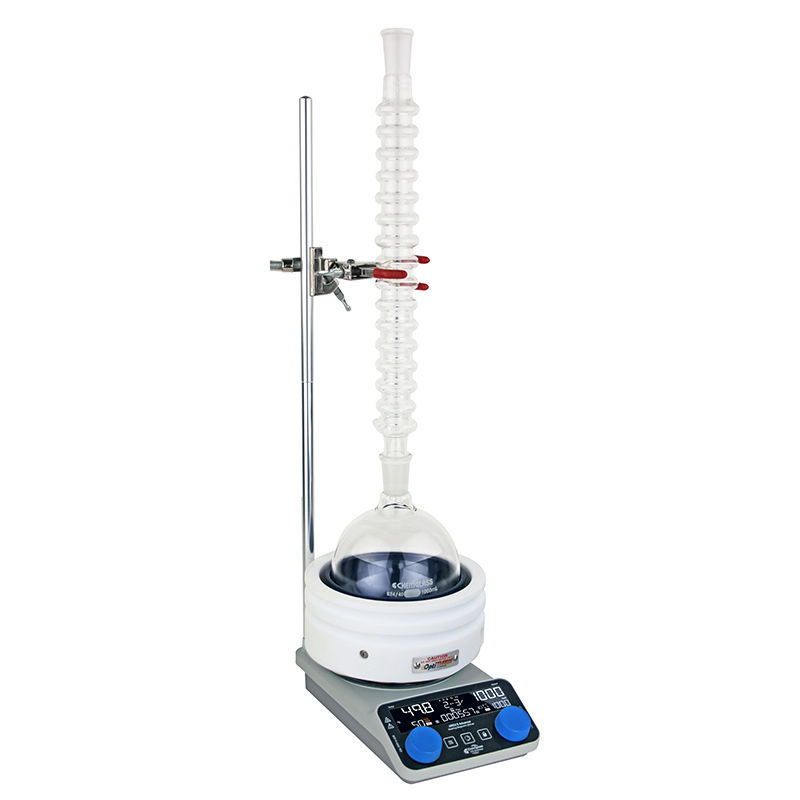

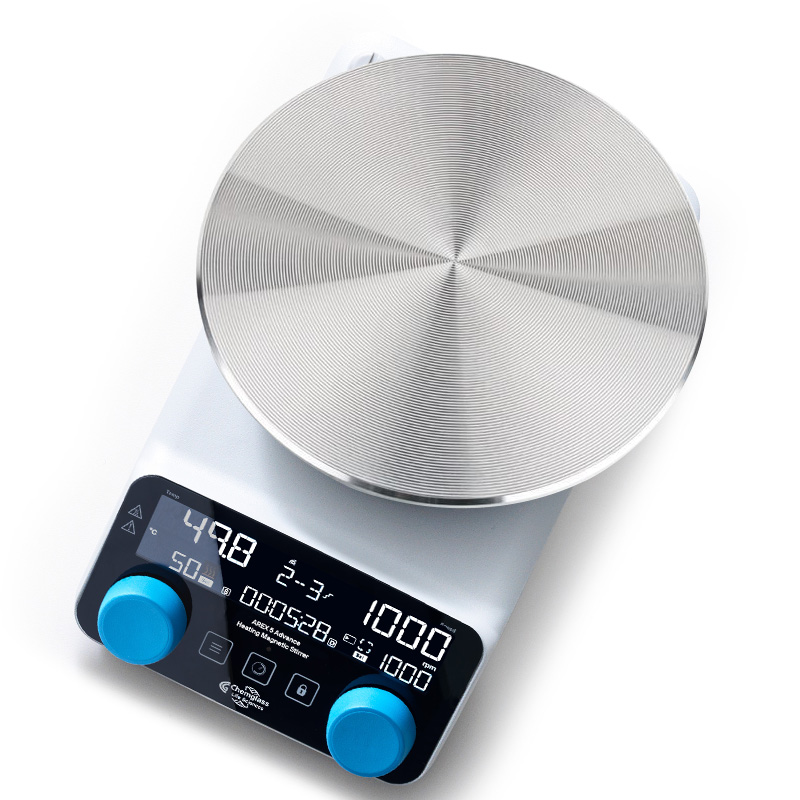

AREX 5 ADVANCE MAGNETIC HOT PLATE STIRRER, DIGITAL, 135MM DIAMETER ROUND TOP

State-of-the-art heating magnetic stirrer combining powerful performance, advanced safety features, several connectivity options, and enhanced user experience. Designed to meet the highest demands, it ensures precision, efficiency, and uncompromising safety in every experiment.

Stirring Capacity: Up to 20L (H2O)

Speed Range: 30–1,700RPM

Elevating Laboratory Standards

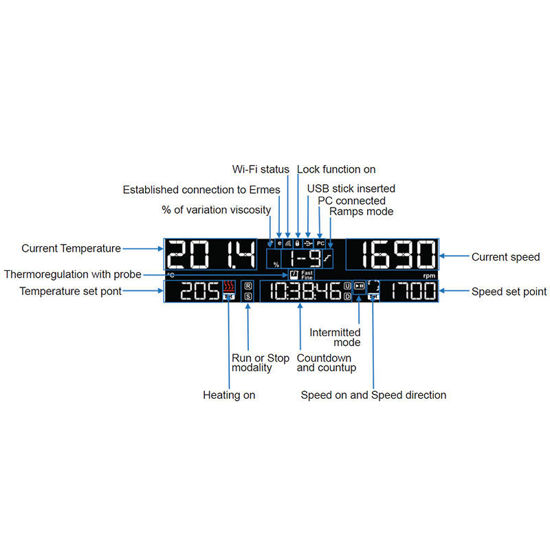

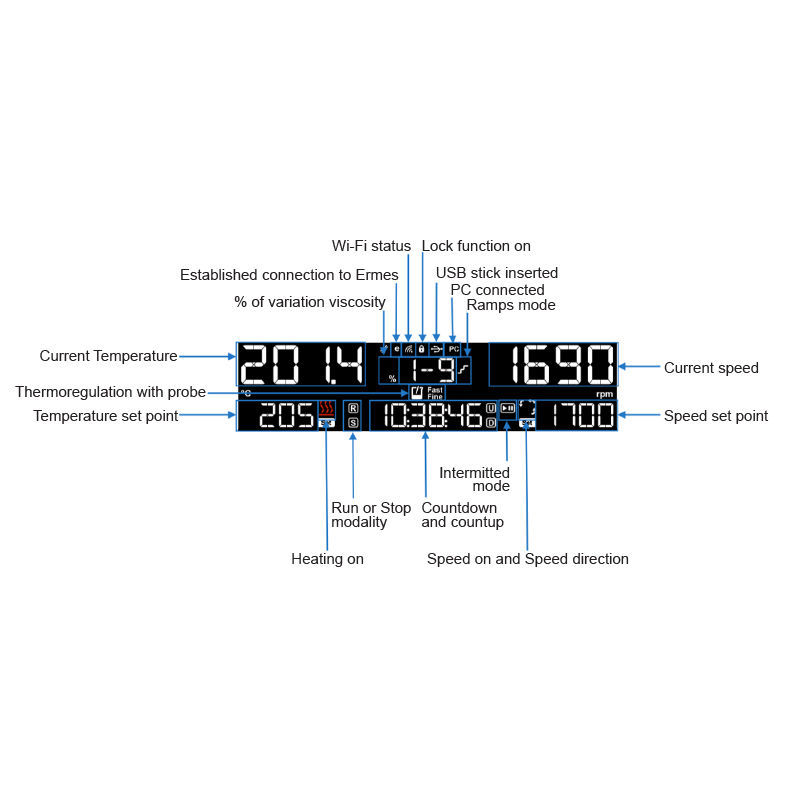

  • Set temperature ramps, monitor viscosity, switch stirring modes, and streamline workflows with advanced timing and connectivity.

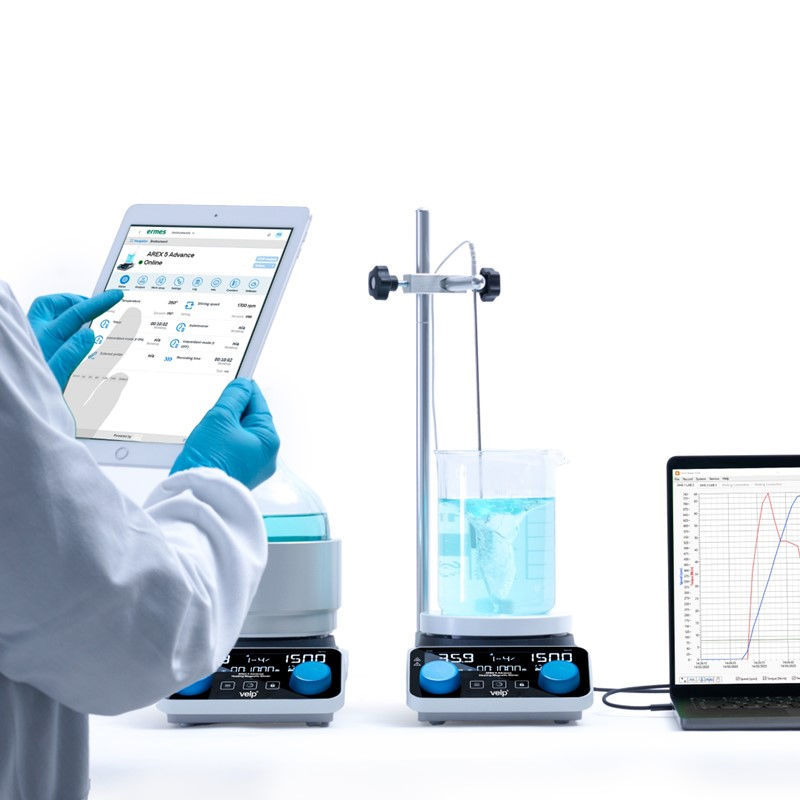

  • Remote control and monitoring via VELP Ermes Cloud Platform.
  • Save and transfer data via USB.

Precise Thermoregulation

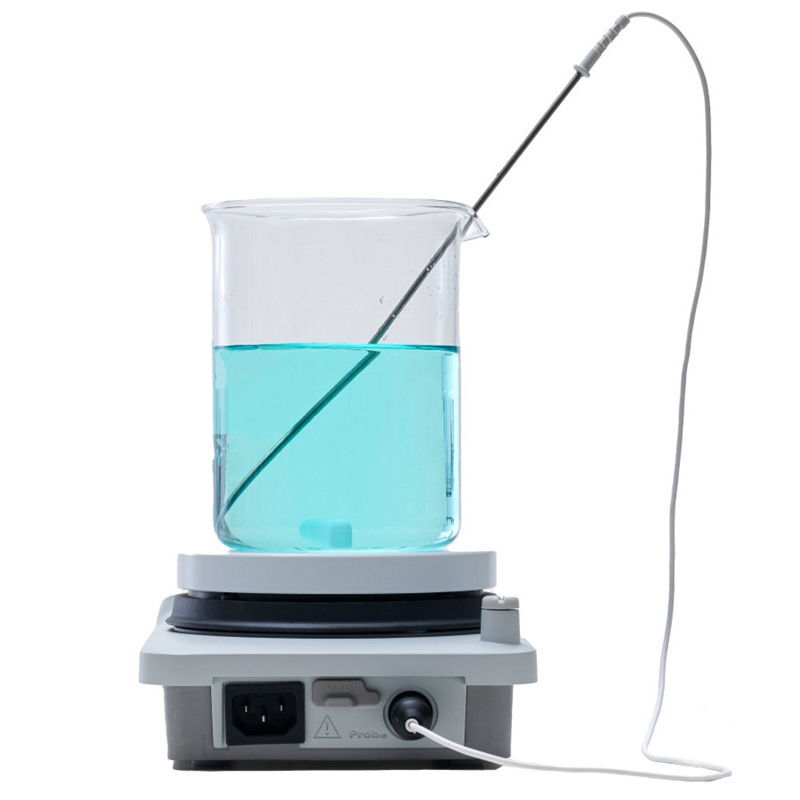

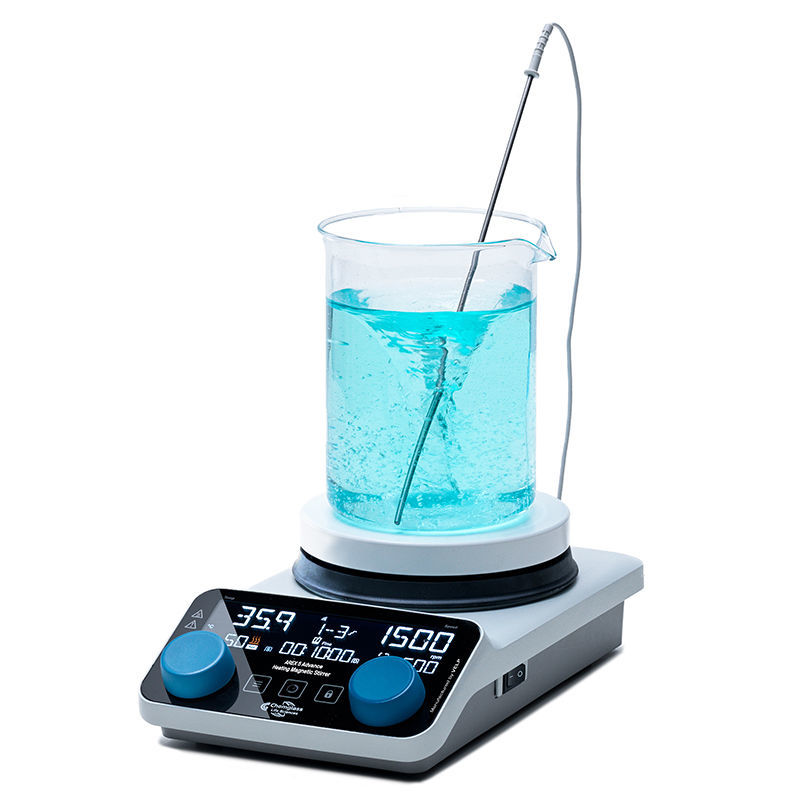

  • Maximum control for temperature-sensitive tasks with PT100, PT1000 probe or VTF Digital Thermoregulator.
  • When connected to probes two modes available: Fast (rapid heating) and Fine (minimized overshoot).
  • Thermoregulation range: ambient to 310 °C.

Advanced Stirring

  • Durable brushless motor with strong magnetic coupling.
  • Stirs up to 20 L from 30 to 1700 rpm.
  • Auto-reverse, intermittent mode, and adjustable speed limit.

Safety First

  • A tempered glass panel ensures clear visibility and enhanced chemical resistance.
  • Built-in safety features: lock button, over-temperature protection, and safety circuits.

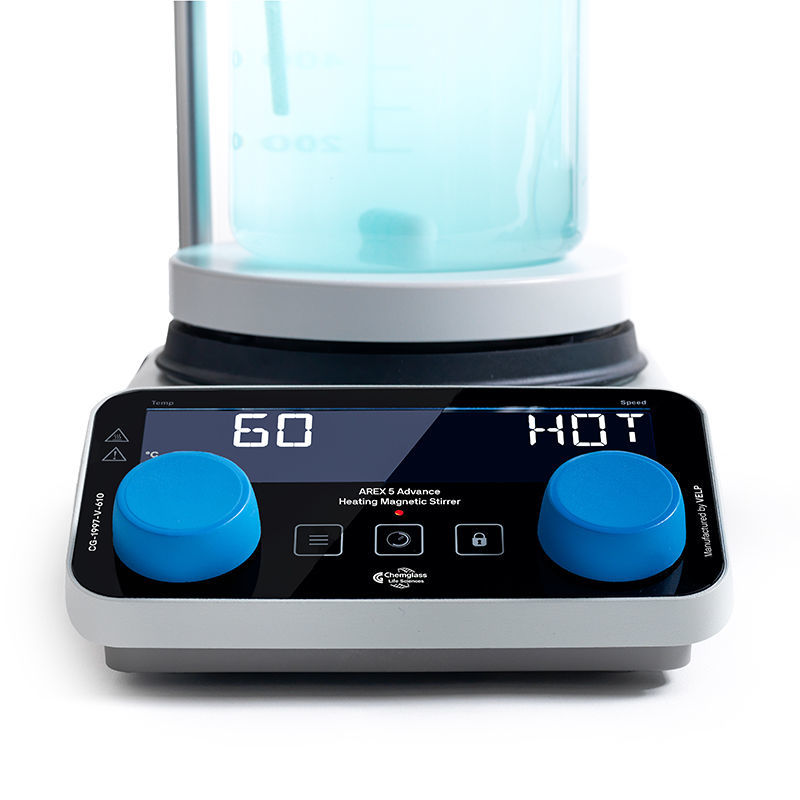

  • “Hot” warning remains active above 50 °C, even when heating is off.



Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1997-V-610

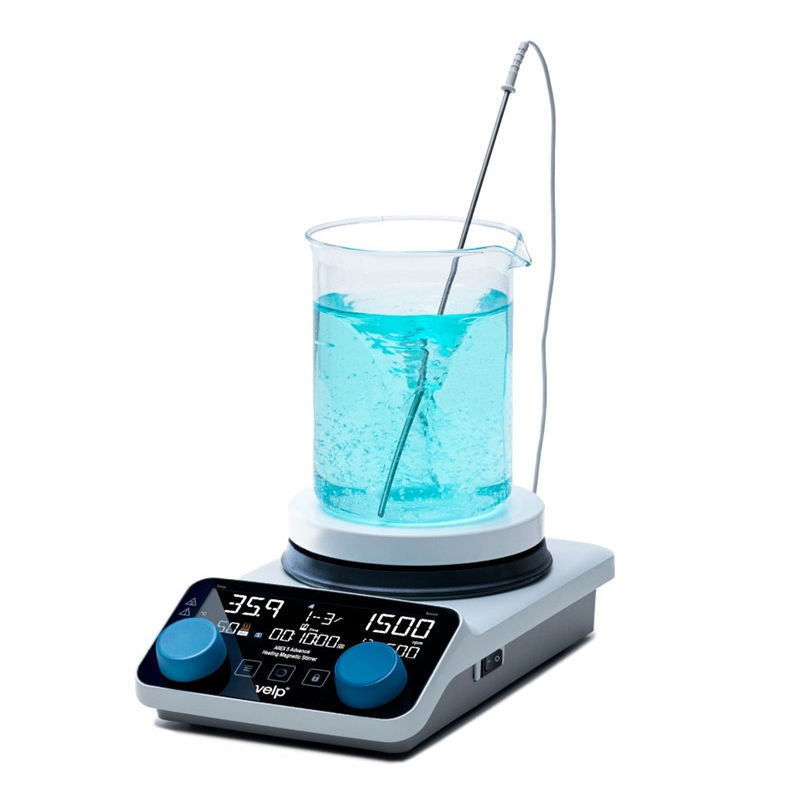

AREX 5 Advance Magnetic Hot Plate Stirrer with Probe
EACH
$1,195.00
68
CG-1997-V-650

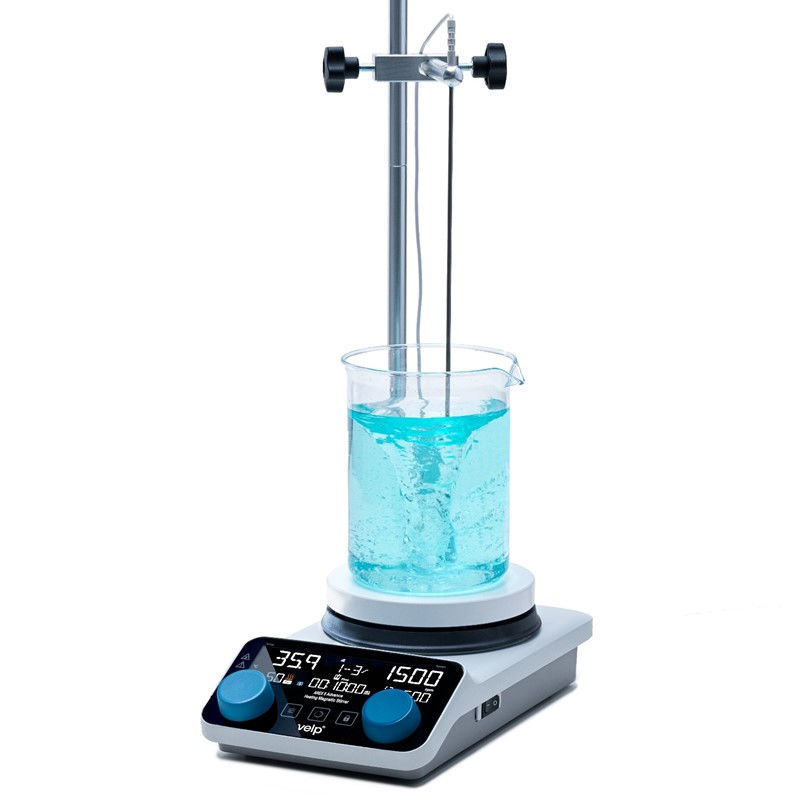

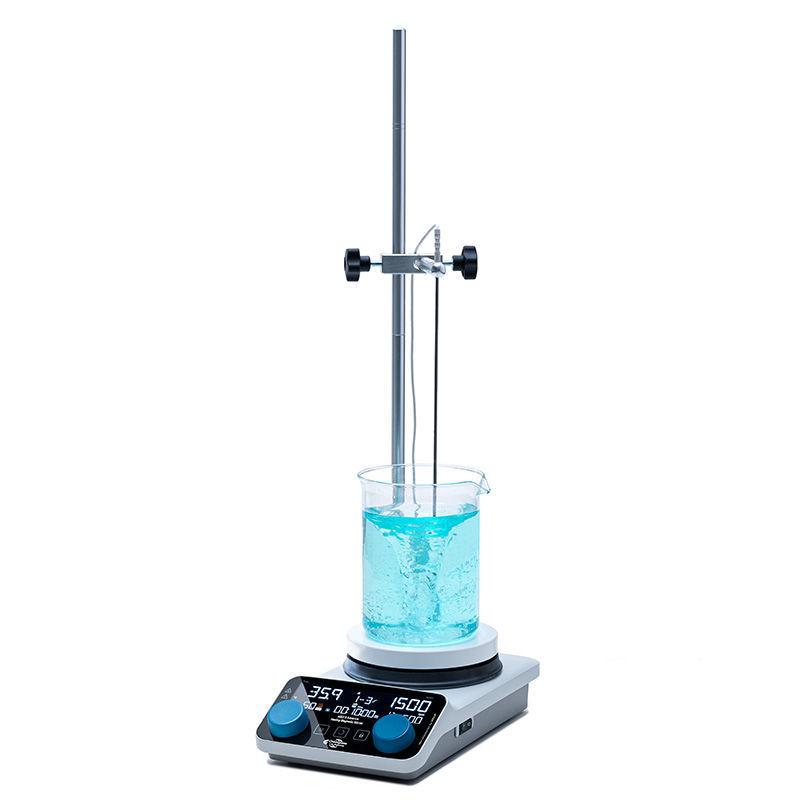

AREX 5 Advance Magnetic Hot Plate Stirrer KIT with Probe, Vertical Support Rod, Boss Head, and Support/Holding Rod
EACH
$1,270.00
Call for
Availability
  ✱ Chemistry Equipment and Hardware Product line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1994-V-25PT100 Probe/Sensor Only, 3mm Dia.EACH
$153.50
37
Add to Favorites
CG-1995-V-22Vertical Support Rod OnlyEACH
$66.90
134
Add to Favorites
CG-1995-V-25Boss HeadEACH
$30.90
754
Add to Favorites
CG-1995-V-27Support/Holding Rod PT SensorEACH
$31.20
Call for
Availability
Add to Favorites
CG-1995-V-29Offset Adapter, for Velp Hotplates, Stainless Steel, Supplied with M8 BoltEACH
$43.15
50
Add to Favorites
CG-1995-20Detachable 6ft Power Cord, for Opti-Chem, Velp Digital and Analog Hotplate StirrersEACH
$24.20
72
Add to Favorites
  ✱ Chemistry Equipment and Hardware Product line  ✱ Machined Product Line  ✱ Non Glassware Product Line
User InterfaceDigital
Housing MaterialAluminum body - Technopolymer enclosure
Plate MaterialCerAlTop™
Plate Diameter135 mm
Stirring Volume (H2O)20L
Stirring Speed Range30 - 1700 RPM
Speed ControlDigital
MotorBrushless
Torque CompensationSpeedServo™
Temperature RangeRoom temp. - 310 °C
Heating ControlDigital
Temperature Setting Resolution1°C
External Temperature Sensor ConnectionPT100, PT1000, VTF
Thermoregulation RangeRoom temp. - 310 °C (PT100, PT1000)
 Room temp. - 300 °C (VTF)
Thermoregulation Accuracy± 0.5°C (VTF)
 ± 1°C (PT100, PT1000)
Hot Top Warning SystemOn Display (temperature > 50 °C)
TimerYes (1s - 99h 59min)
AutoreverseYes (5s - 99h 59min)
Intermittent ModeYes (5s - 99h 59min)
Settable Rotation DirectionYes: clockwise and counterclockwise
Viscosity Trend MeasurementYes
RampsUp to 9 temperatures, up to 9 speeds
Safety LockYes
ConnetivityErmes Cloud Platform via Wi-Fi
 CotrollerSoft™ PC and pendrive via USB-C
Protection ClassIP 42
Power Input630 W
Weight1.9 kg (4.2 lb)
Dimensions (WxHxD)160 x 85 x 270mm / 6.3 x 3.3 x 10.6in
