CG-1992

OPTITHERM® REACTION BLOCKS, RBF, ROUND BOTTOM FLASKS, SAFETY SHIELD, RBF BLOCK

Name: OPTITHERM® REACTION BLOCKS, RBF, ROUND BOTTOM FLASKS, SAFETY SHIELD, RBF BLOCK
SKU: CG-1992
Availability: InStock

Reaction Blocks

OptiTherm® aluminum reaction / heating blocks provide a SAFE and cost effective solution for replacing your existing oil baths and heating mantles. The innovative PTFE shield on the unit reduces the exterior exposed surface temperature by as much as 100°C. For example the PTFE shield would be approximately 80°C on a 100mL round bottom flask that is heated to 180°C.

Three different OptiTherm™ blocks are available. The OPT100 is used for 100mL round bottom flasks; the OPT500 is used for 500mL round bottom flask and the OPT1000 is used for 1000mL round bottom flasks. Each block can be used with other corresponding inserts: See the chart above. The anodized aluminum flask inserts are color coded for easy identification. Designed to fit directly on 135mm diameter circular top hot plate stirrers.

PLEASE NOTE: FLASK INSERTS MUST BE PURCHASED SEPARATELY.

** US Patent Number 7,494,267

See Recovery Flask Inserts: CG-1992-R-series

See High Efficiency Air Condenser: CG-1218-H-series

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-1992-10	OPT100 RBF Reaction Block, 100mL	EACH	✱	$556.50	80	Qty:
SKU: CG-1992-50	OPT500 RBF Reaction Block, 500mL	EACH	✱	$600.20	27	Qty:
SKU: CG-1992-60	OPT1000 RBF, Reaction Block, 1000mL	EACH	✱	$782.80	Call for Availability	Qty:
✱ Machined Product Line

Replacement Parts
Specifications/Manuals
Suggested Products

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-1992-12	10mL Flask Insert, Anodized Gold Aluminum (for use with block OPT100)	EACH	✱	$111.50	22	Qty:
SKU: CG-1992-14	25mL Flask Insert, Anodized Blue Aluminum (for use with block OPT100)	EACH	✱	$118.15	82	Qty:
SKU: CG-1992-16	50mL Flask Insert, Anodized Red Aluminum (for use with block OPT100)	EACH	✱	$126.25	61	Qty:
SKU: CG-1992-54	250mL Flask Insert, Anodized Clear Aluminum (for use with block OPT500)	EACH	✱	$186.90	41	Qty:
SKU: CG-1992-53	200mL Flask Insert, Anodized Turquoise Aluminum (for use with block OPT500)	EACH	✱	$186.90	22	Qty:
SKU: CG-1992-55	300mL Flask Insert, Anodized Black Aluminum, OptiTherm (for use with block OPT500)	EACH	✱	$186.90	19	Qty:
SKU: CG-1992-58	500mL Flask Insert, Anodized Berry Aluminum, OptiTherm (for use with block OPT1000)	EACH	✱	$285.25	10	Qty:
✱ Machined Product Line

Part Number	For Flask Size (mL):	Anodized:	CG-1992-10 OPT100	CG-1992-50 OPT500	CG-1992-60 OPT1000
CG-1992-12	10	Gold	X
CG-1992-14	25	Blue	X
CG-1992-16	50	Red	X
CG-1992-53	200	Turquoise		X
CG-1992-54	250	Clear		X
CG-1992-55	300	Black		X
CG-1992-58	500	Berry			X

Documentation

CG-1997-V

MAGNETIC HOT PLATE STIRRERS, DIGITAL, WITH TIMER AND LOCKING FUNCTION, HOTPLATE, 135mm DIAMETER ROUND TOP

From $1,072.25

Hot Plate Stirrers & Accessories

CG-1992-R

RECOVERY FLASK INSERTS, OPTITHERM® REACTION BLOCKS

From $119.60

Reaction Blocks

CG-1520

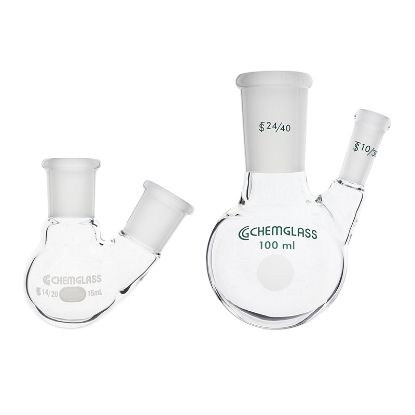

FLASKS, HEAVY WALL, ROUND BOTTOM, 2-NECKS
