REACTION BLOCKS FOR CIRCULAR TOP HOT PLATE STIRRERS
REACTION BLOCKS FOR CIRCULAR TOP HOT PLATE STIRRERS REACTION BLOCKS FOR CIRCULAR TOP HOT PLATE STIRRERS

CG-1991

REACTION BLOCKS FOR CIRCULAR TOP HOT PLATE STIRRERS, VIALS

Reaction Blocks
  • Excellent heat transfer
  • Won't interfere with magnetic stirring
  • Holes spaced for optimum stirring of all vials
  • Color-anodized for durability and easy identification

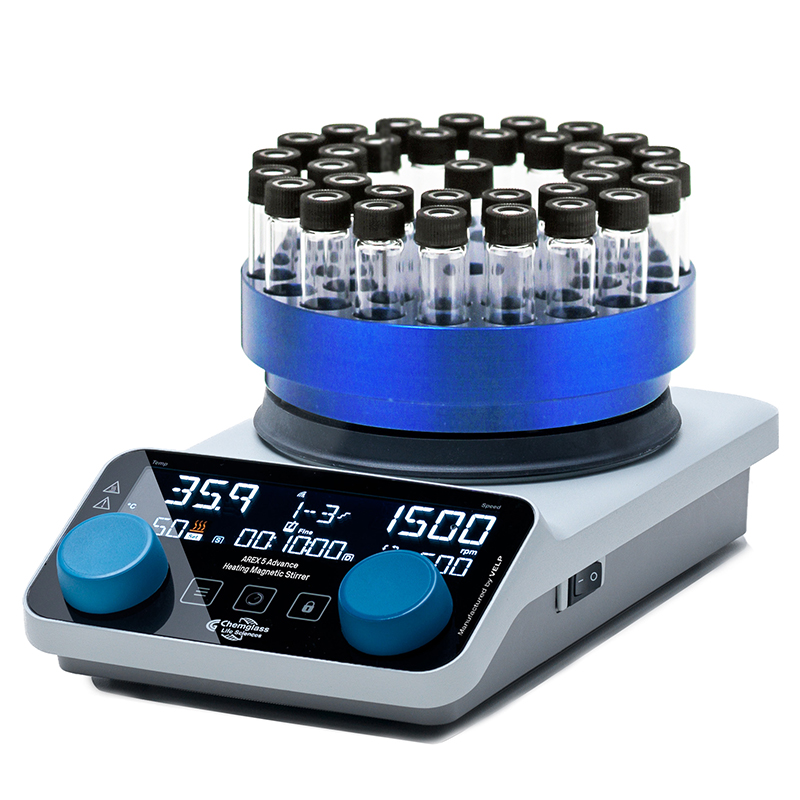

Round reaction blocks are designed to fit directly on 135mm diameter, round top hot plate stirrers. Aluminum construction offers excellent heat transfer without interfering with magnetic stirring. All blocks are anodized for increased strength, durability and chemical resistance. A thermowell is provided for insertion of a temperature sensor or contact thermometer. Available for scintillation vials and dram vials.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CG-1991-01
Reaction Block, 20mL Scintillation Vial, 28mm x 60mm, Black, 17 Position, 24mm Hole Depth
EACH
✱
$293.25
53
Wishlist
SKU: CG-1991-02
Reaction Block, 30mL Scintillation Vial, 28mm x 73mm, Green, 17 Position, 30mm Hole Depth
EACH
✱
$318.75
2
Wishlist
SKU: CG-1991-03
Reaction Block, 40mL Scintillation Vial, 28mm x 98mm, Orange, 17 Position, 43mm Hole Depth
EACH
✱
$325.55
30
Wishlist
SKU: CG-1991-04
Reaction Block, 1 Dram (4mL) Vial, 15mm x 45mm, Gold, 48 Position, 19mm Hole Depth
EACH
✱
$368.15
43
Wishlist
SKU: CG-1991-05
Reaction Block, 2 Dram (8mL) Vial, 17mm x 60mm, Blue, 34 Position, 25mm Hole Depth
EACH
✱
$358.10
Call for Availability
Wishlist
SKU: CG-1991-06
Reaction Block, 4 Dram (16mL) Vial, 21mm x 70mm, Red, 21 Position, 32mm Hole Depth
EACH
✱
$332.50
10
Wishlist
  • ✱ Machined Product Line
Part No. For Vial Type Vial Dims (mm) No. of Holes Hole Depth (mm) Color
CG-1991-01 20mL Scintillation 28 x 60 17 24 Black
CG-1991-02 30mL Scintillation 28 x 73 17 30 Green
CG-1991-03 40mL Scintillation 28 x 98 17 40 Orange
CG-1991-04 1 Dram 45 x 48 48 19 Gold
CG-1991-05 2 Dram 17 x 60 34 25 Blue
CG-1991-06 4 Dram 21 x 70 32 32 Red
