CG-3206

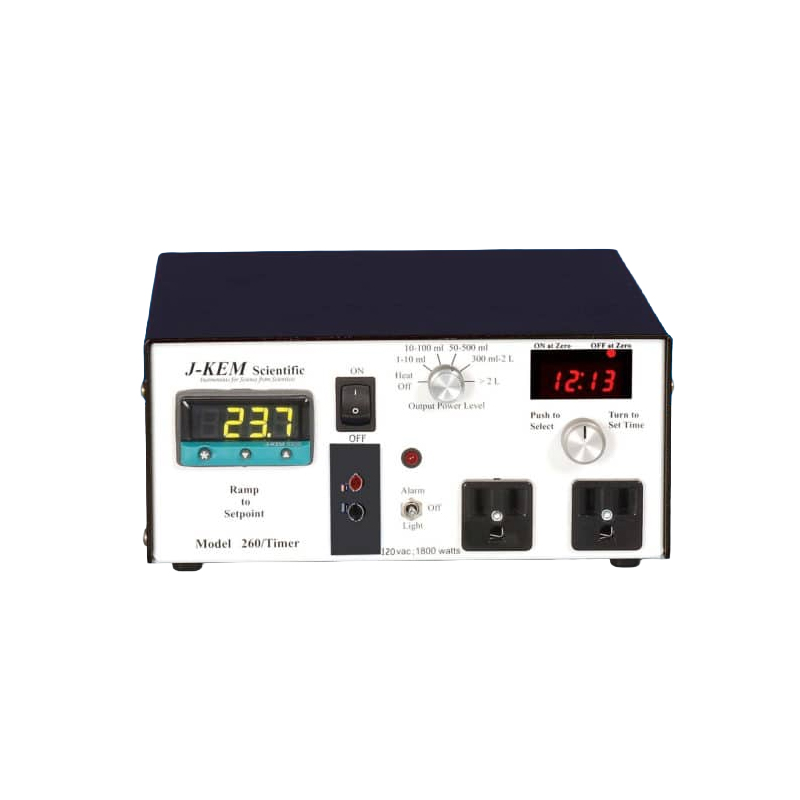

TEMPERATURE CONTROLLERS, J-KEM®, MODEL 260/T

Temperature Controllers

The Model 260/T disconnects all output power it the process temperature exceeds the entered temperature by a user-specified amount, or following recovery from a power failure. The outputs remain disconnected until manually reset. Over temperature condition is signalled by an indicator lamp and audible alarm. The Model 260/T has 1800 Watts of power which is sufficient for heating mantles up to 22L. Controller has the ability to display temperature without heating. The Model 260/T is also equipped with a 100 hour digital timer to turn heating ON or OFF when time has expired. Additional USB port on the back panel of the controller for use with J-KEM’s KEM-Net software.

PLEASE NOTE: THE TYPE T, J AND K CONTROLLERS ARE SUPPLIED COMPLETE WITH: 1/8” DIAMETER X 12” LONG PTFE COATED THERMOCOUPLE, 10FT COILED EXTENSION CORD, AND A 14/20 PTFE THERMOCOUPLE ADAPTER. THE RTD UNIT IS THE CONTROLLER ONLY.

Specifications:
Dimensions: 3.25" H x 7.5" W x 9" D
Power: 15 Amps @ 120VAC, 1800 Watts

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-3206-01
J-Kem® Temperature Controller, Model 260/T, Type "T" (-200°C to 250°C), Complete
EACH
 ✱
$1,513.00
Call for
Availability
CG-3206-02
J-Kem® Temperature Controller, Model 260/T, Type "J" (-0°C to 800°C), Complete
EACH
 ✱
$1,513.00
2
CG-3206-03
J-Kem® Temperature Controller, Model 260/T, Type "K" (-50°C to 1200°C), Complete
EACH
 ✱
$1,513.00
Call for
Availability
CG-3206-100
J-Kem® Temperature Controller Only, Model 260/T, Type "RTD" (-200°C to 400°C)
EACH
 ✱
$1,400.00
Call for
Availability
