1-800-843-1794
CG-3204

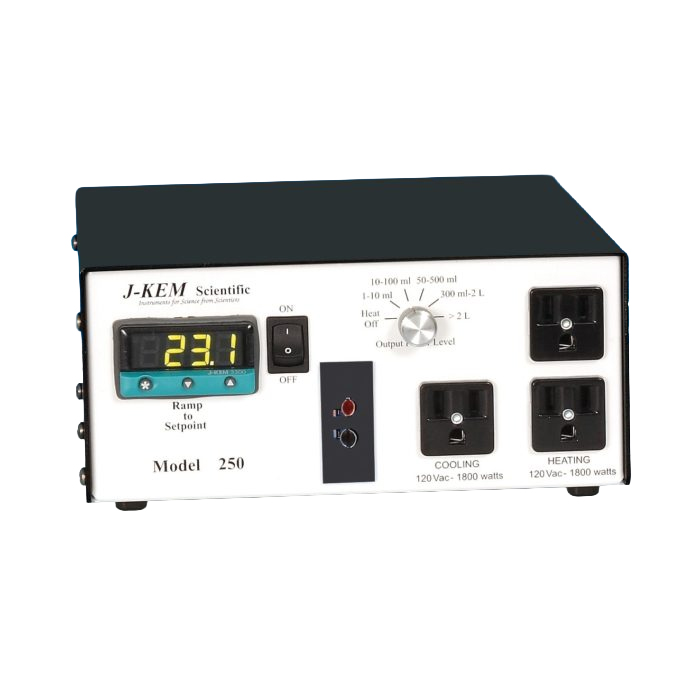

TEMPERATURE CONTROLLERS, J-KEM®, MODEL 250

The Model 250 has 3 power outlets for maximum versatility in research. Two of the outlets are used for heating up to 1800 watts (mantles up to 22L). The third outlet (1800 watts), used normally for cooling, is programmable to provide power below, above, or at the entered temperature. This third outlet can also be used to turn on an alarm for an over or under temperature condition. Controller has the ability to display temperature without heating. The Model 250 controls temperature to within ± 0.1ºC of liquids from 1ul to 22L. Available with a choice of Type "T", “J” or “K” thermocouple. Additional USB port on the back panel of the controller for use with J-KEM’s KEM-Net software.

PLEASE NOTE: THE TYPE T, J AND K CONTROLLERS ARE SUPPLIED COMPLETE WITH: 1/8” DIAMETER X 12” LONG PTFE COATED THERMOCOUPLE, 10FT COILED EXTENSION CORD, AND A 14/20 PTFE THERMOCOUPLE ADAPTER. THE RTD UNIT IS THE CONTROLLER ONLY.

Specifications:
Dimensions: 3.25" H x 7.5" W x 9" D
Power: Heating Outlets #1 & #2: 15 Amps @ 120VAC, 1800 Watts Cooling/Alarm Outlet #3: 3 Amps @ 12VAC, 1800 Watts

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-3204-03
J-Kem® Temperature Controller, Model 250, Type "K" (-50°C to 1200°C), Complete
EACH
$1,122.95
Call for
Availability
CG-3204-100
J-Kem® Temperature Controller Only, Model 250, Type "RTD" (-200°C to 400°C)
EACH
$1,024.65
Call for
Availability
CG-3204-01
J-Kem® Temperature Controller, Model 250, Type "T" (-200°C to 250°C), Complete
EACH
$1,122.95
1
CG-3204-02
J-Kem® Temperature Controller, Model 250, Type "J" (0°C to 800°C), Complete
EACH
$1,122.95
1
  ✱ Not Subject to Discount
