CG-1992-R

RECOVERY FLASK INSERTS, OPTITHERM® REACTION BLOCKS

Reaction Blocks

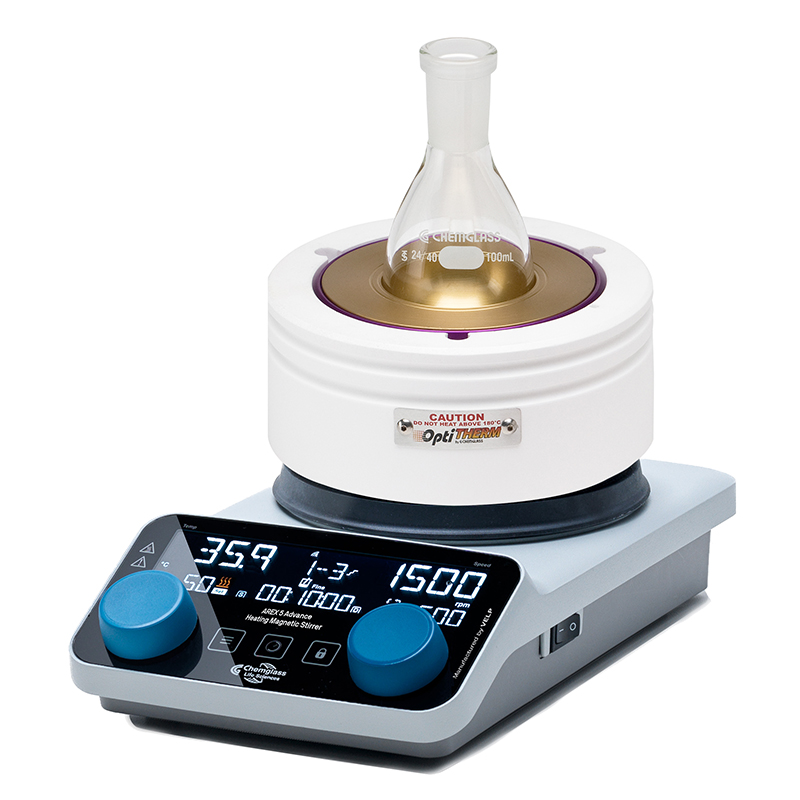

Optitherm™ blocks provide a SAFE and cost effective solution for replacing your existing oil baths and heating mantles. The innovative PTFE shield on the unit reduces the exterior exposed surface temperature by as much as 100°C. For example, the PTFE shield would be approximately 80°C on a 100mL flask that is heated to 180°C.

Three different OptiTherm™ blocks are available. The OPT100 is used for 100mL round bottom flasks; the OPT500 is used for 500mL round bottom flask and the OPT1000 is used for 1000mL round bottom flasks. Each block can be used with other corresponding inserts: See the chart above. The flask inserts are color coded for easy identification. Designed to fit directly on 135mm diameter circular top hot plate stirrers.

PLEASE NOTE: FLASK INSERTS MUST BE PURCHASED SEPARATELY.

See Round Bottom Flask Inserts, CG-1992-R-series

See High Efficiency Air Condenser, CG-1218-H-series

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1992-R010
10mL Recovery Flask Insert, Anodized ORANGE Aluminum, OptiTherm® (for use with OPT100)
EACH
28
CG-1992-R025
25mL Recovery Flask Insert, Anodized GREEN Aluminum, OptiTherm® (for use with OPT100)
EACH
8
CG-1992-R050
50mL Recovery Flask Insert, Anodized BLUE Aluminum, OptiTherm® (for use with OPT100)
EACH
14
CG-1992-R100
100mL Recovery Flask Insert, Anodized YELLOW Aluminum, OptiTherm® (for use with OPT500)
EACH
43
CG-1992-R200
200mL Recovery Flask Insert, Anodized RED Aluminum, OptiTherm® (for use with OPT500)
EACH
6
CG-1992-R500
500mL Recovery Flask Insert, Anodized BERRY Aluminum, OptiTherm® (for use with OPT1000)
EACH
11
  ✱ Machined Product Line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1992-10OPT100 RBF Reaction Block, 100mLEACH
93
CG-1992-50OPT500 RBF Reaction Block, 500mLEACH
24
CG-1992-60OPT1000 RBF, Reaction Block, 1000mLEACH
71
  ✱ Machined Product Line
Part NumberFor Flask Size (mL):Anodized:CG-1992-10 OPT100CG-1992-50 OPT500CG-1992-60 OPT1000
CG-1992-R01010OrangeX
CG-1992-R02525GreenX
CG-1992-R05050BlueX
CG-1992-R100100Yellow X
CG-1992-R200200Red X
CG-1992-R500500Berry  X
