CG-2033-B-11

CHEMSTIR OVERHEAD MOTORS, BRUSHLESS DC, 1/11 HP 35-417 RPM, 10in-lb (113 Ncm), CLOSED LOOP CONTROLS, DIGITAL CONTROLLERS

Features:
· Compact overall Height Brushless DC motor

· Micro USB port for Control or Data Logging of RPM/Torque trends
· Torque Compensation – Maintains set RPM with Viscosity Changes

Chemstir 24 volt Brushless DC motor features high torque, compact size, and no maintenance. Brushless gear-motor is for use with 250mL thru 5L benchtop process reactors. Must be used in conjunction with a CG-2033-V-75 digital display controller. Support plate and rod design allows the motor to be mounted on the ChemRxnHub stand or on lattice in most hoods. Supplied complete with a Nylon body keyless chuck and a CG-9253 for mounting on ½” lattice in hood area.

Please Note: Motor and Controller are Purchased Separately

UPGRADE YOUR CONTROLLER: Users with a CG-2033-B-50 controller can upgrade to the CG-2033-V controller for use with their existing CG-2033-B-25 series 1/4 HP motor

CG-2033-V Digital Motor Controller Chemglass / Velp 115v/230v

• TFT 3.5” Display for All Setting Information at a Glance
• Wi-Fi Connection to Velp Ermes Platform to monitor status and data logging on the cloud
• Timer For Unattended Operations
• Real Time Torque and Speed Graph Monitoring
• Intuitive Knob To Navigate The Menu And Start Stop Operations
• Compatible with CG-2033-B 1/4 HP Brushless Motor

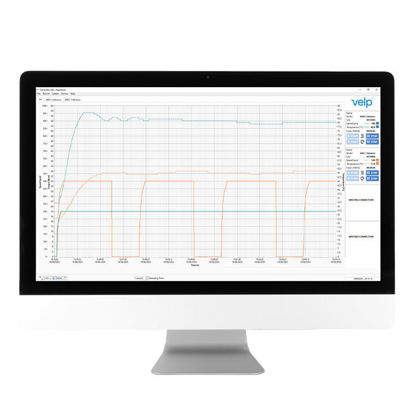

• USB interface for use with PC software to data log, monitor, Turn off/ Turn on. USB also allow Software Updates
• Key Lock Function to Avoid Unintended Changes with Settings
• Programmable methods to setup to 4 Time/Speed Ramps
• PT100 Probe Connection for Temperature Monitoring: Measurement Range -200 to +550° C
• Easy CW/CCW Direction Changes
• Precise Digital Closed Loop Speed Control: +/- 1 RPM
• 1 Year Warranty

CG-2033-V Digital controllers have been designed and manufactured in compliance with the following standards CE, CSA and UL.

Please Note: Controller and Motor are purchased separately

NEMKO mark

Nemko mark indicates compliance with the following standards CSA and UL.

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-2033-B-11
Brushless DC Motor Only, 1/11 HP, 24V, 35-417 RPM, 10in-lb, w/Adapter Plate, Holding Rod and Keyless Chuck
EACH
6
  ✱ Non Glassware Product Line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-2033-V-75Digital Controller Only, for Brushless DC Motor, Closed Loop Controls, TFT Display, Wifi, 115V-230VEACH
90
  ✱ Non Glassware Product Line

Vertical Specifications:
Motor Hp: 1/11

Maximum Torque: 10in-lbs / 113 Ncm
RPM: 35 to 417
Motor Shaft Size (in): .500
Overall Height (in): 6.326
Support Rod: .500” diameter x 8” long
