CG-1999-10D

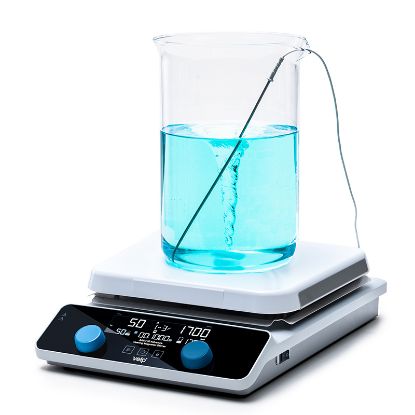

AREC 10 DIGITAL CERAMIC HOT PLATE STIRRERS, 10IN x 10IN, 115V/60Hz, VELP

The AREC 10 Digital offers precise temperature control, advanced stirring and heating performance, improved safety features, and ease of use. The 10-inch square ceramic plate is highly resistant and ideal for laboratories requiring a spacious working surface.

PRECISE THERMOREGULATION

■ Advanced heating plate technology ensures temperature homogeneity and stability up to 550°C

■ Precise thermoregulation of the medium with Pt100/Pt1000 probe (± 1°C) and VTF Digital Thermoregulator (± 0.5°C).

■ Thermoregulation range from room temperature to 350°C

POWERFUL STIRRING

■ Brushless motor ensuring power and resistance over time

■ Stirs up to 25L volume (H₂O) from 100 up to 1500rpm

■ SpeedServo™ counter reaction technology maintains the speed constant as viscosity changes

SAFE AND RESISTANT

 ■ The robust 10-inch ceramic top offers exceptional chemical and scratch resistance and it is easy to clean with a simple wipe-down

■ A "Hot Surface" warning message is displayed when the temperature exceeds 50°C, even when inactive

Precise Temperature Control for Maximum Reproducibility

The AREC 10 Digital features a spacious 10-inch square ceramic plate, ideal for a variety of laboratory tasks. Designed for temperature-sensitive applications, the ceramic plate reaches a maximum temperature of 550°C.

Connect the AREC 10 Digital to external Pt100 or Pt1000 probes and the VTF Digital thermoregulator for superior temperature control.

When working with Pt100 and Pt1000 probes it is possible to achieve precise heating of the medium up to 350°C with an impressive ±1.0°C accuracy. Alternatively, use the VTF Digital for a maximum medium thermoregulation of 300°C and an exceptional ±0.5°C accuracy.

Brushless Motor for Consistent Stirring Performance

The AREC 10 Digital hotplate stirrer is driven by a powerful brushless motor, designed to run quietly and efficiently, thus minimizing disruptions in the laboratory setting.

This state-of-the-art motor technology ensures consistent and reliable stirring performance across diverse applications, such as chemical reactions and sample preparation.

Additionally, the VELP-engineered SpeedServo™ torque compensation technology ensures constant speed even when the viscosity of the medium changes.

With a stirring capacity of up to 25 liters (H₂O), the AREC 10 Digital is capable of accommodating large-scale experiments with ease, making it an ideal choice for demanding laboratory environments.

Superior Resistance & Safety for a Large Surface Hotplate Stirrer

The AREC 10 Digital goes beyond performance, prioritizing safety during everyday use. Built-in safeguards include safety circuits, over-temperature protection, and a clear "hot" warning message when the plate exceeds 50°C while inactive. Operate with confidence, knowing you and your lab are protected.

The robust housing and the resistant 10-inch square ceramic plate offer exceptional chemical resistance and are easy to clean with a simple wipe-down. This combination ensures long-lasting product quality, making the AREC 10 Digital ideal for laboratories requiring a large surface for demanding applications.

Engineered for maximum lifespan and backed by a 3-year warranty (online registration required), the AREC 10 Digital is a reliable solution. Focus on research, confident that this hotplate stirrer can handle the most challenging tasks.

User-friendly Interface for Effortless Monitoring

The AREC 10 Digital's exceptionally bright digital display delivers clear and accurate data readings, ensuring precise control over your experiments.

The carefully designed interface provides an optimized user experience. Effortlessly adjust the temperature (up to 550°C) and stirring speed (100 to 1500 rpm) with the intuitive knobs.

Simply turn and push – you'll be ready to start your application in seconds.

Nemko mark indicates compliance with the following standards CSA and UL



Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1999-10D01
AREC 10 Digital, 10in x 10in Ceramic Top, Hot Plate Stirrer, 115V/60Hz, Velp
EACH
$946.00
Call for
Availability
CG-1999-10D03
AREC 10 Digital, 10in x 10in Ceramic Top, Hot Plate Stirrer, 115V/60Hz, with Probe, Velp
EACH
$1,056.00
Call for
Availability
CG-1999-10D05
AREC 10 Digital, 10in x 10in Ceramic Top, Hot Plate Stirrer, 115V/60Hz, with Probe, Rod, and Clamp, Velp
EACH
$1,154.00
Call for
Availability
CG-1999-10D07
AREC 10 Digital, 10in x 10in Ceramic Top, Hot Plate Stirrer, 115V/60Hz, with VTF Digital Thermoregulator, Velp
EACH
$1,286.00
Call for
Availability
  ✱ Chemistry Equipment and Hardware Product line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1995-V-20Digital Thermoregulator ONLY, with Built In TimerEACH
$372.00
43
Add to Favorites
CG-1995-V-22Vertical Support Rod OnlyEACH
$62.00
198
Add to Favorites
CG-1994-V-25PT100 Probe/Sensor Only, 3mm Dia.EACH
$142.00
35
Add to Favorites
  ✱ Chemistry Equipment and Hardware Product line

User Interface

Digital

Plate Material

Ceramic

Stirring Volume

25L

Speed control

Digital

Torque Compensation

SpeedServo™

Heating Control

Digital

External Temperature Sensor Connection

Pt100, Pt1000, VTF

Thermoregulation Accuracy

± 0.5°C (VTF), ± 1.0°C (Pt100, Pt1000)

Power Input

115V / 60Hz: 1520 W

Dimensions (W x H x D):

280 x 100 x 420mm (11.02 x 3.93 x 16.53in)

Housing Material

Aluminum body, Technopolymer enclosure

Plate Dimension

260 x 260mm (10 x 10in)

Stirring Speed Range

100 - 1500 rpm

Motor

Brushless

Temperature Range

Room Temp - 550°C

Temperature Setting Resolution

1°C

Thermoregulation Range

Room Temp - 350°C

Hot Plate Warning System

On Display (when the temperature is above 50°C)

Weight

5.6kg (12.34lb)
