CG-1235 Angled

ADAPTERS, DISTILLING, PROCESS REACTORS, ANGLED, STRAIGHT SWAGELOK®, FOR COMPRESSION ADAPTERS

Distillation

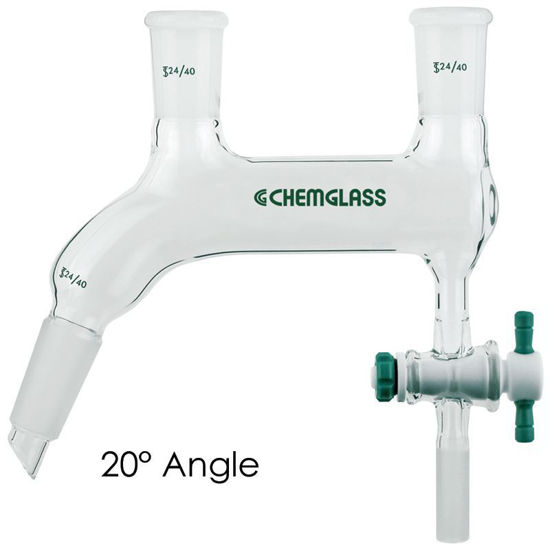

Adapter is designed for use with flasks or reaction vessel lids that have a 10 or 20° angled side neck. Adapter has a lower inner joint and two top outer joints. Lower stopcock is either a 6mm or a 10mm PTFE stopcock with a 1/2” or 3/4” OD distillate takeoff for use with a compression fitting and TFE tubing. PLEASE NOTE: ADAPTER CAN BE USED WITH COMPOUND ANGLED SIDE NECKS.

PLEASE NOTE: CG-1946-B and CG-1945-T REACTION VESSEL LIDS ARE DESIGNED FOR USE WITH THIS ADAPTER.

Item Number	Item Description	PQ	Price	Qty Avail	Quantity
CG-1235-80	Distilling Adapter, Double, 10° Angled Side Neck, 24/40 Joint, 6mm PTFE Stopcock, 1/2" Swagelok	EACH	$650.40	4	Add to Favorites
CG-1235-84	Distilling Adapter, Double, 10° Angled Side Neck, 29/42 Joint, 6mm PTFE Stopcock, 1/2" Swagelok	EACH	$526.50	12	Add to Favorites
CG-1235-88	Distilling Adapter, Double, 10° Angled Side Neck, 45/50 Joint, 10mm PTFE Stopcock, 3/4" Swagelok	EACH	$775.50	2	Add to Favorites
CG-1235-81	Distilling Adapter, Double, 20° Angled Side Neck, 24/40 Joint, 6mm PTFE Stopcock, 1/2" Swagelok	EACH	$477.10	2	Add to Favorites
CG-1235-85	Distilling Adapter, Double, 20° Angled Side Neck, 29/42 Joint, 6mm PTFE Stopcock, 1/2" Swagelok	EACH	$526.50	5	Add to Favorites
CG-1235-89	Distilling Adapter, Double, 20° Angled Side Neck, 45/50 Joint, 10mm PTFE Stopcock, 3/4" Swagelok	EACH	$772.10	3	Add to Favorites

Replacement Parts
Suggested Products

Item Number	Item Description	PQ	Price	Qty Avail	Quantity
CG-424-71	10mm PTFE Plug Only, 24/40	EACH	$123.00	175	Add to Favorites
CG-457-19	Replacement Viton O-Rings for 24/40 PTFE Plug	PK12	^✱ $23.70	2	Add to Favorites
CG-457-20	Replacement Washers for 24/40 PTFE Plug	PK12	^✱ $46.00	11	Add to Favorites
CG-457-21	Replacement Nuts for 24/40 PTFE Plug	PK12	^✱ $59.30	1	Add to Favorites
CG-424-73	6mm PTFE Plug Only, 16/35	EACH	$33.70	560	Add to Favorites
CG-457-13	Replacement Viton O-Rings for 15.2/30 PTFE Plug	PK12	^✱ $19.25	9	Add to Favorites
CG-457-14	Replacement Washers for 15.2/30 PTFE Plug	PK12	^✱ $41.60	4	Add to Favorites
CG-457-15	Replacement Nuts for 15.2/30 PTFE Plug	PK12	^✱ $53.40	1	Add to Favorites

✱ Chemistry Equipment and Hardware Product line
