CG-458

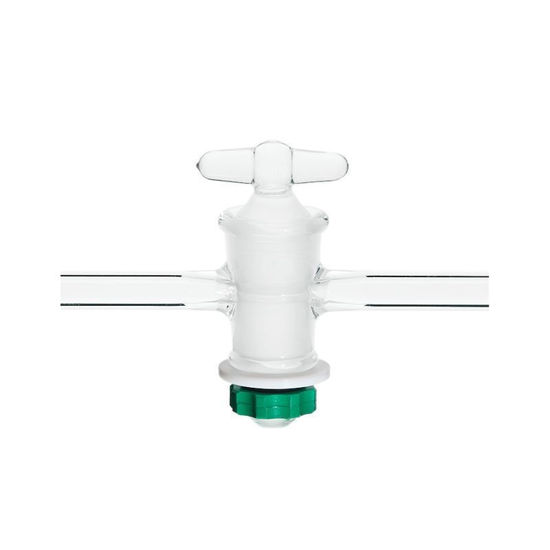

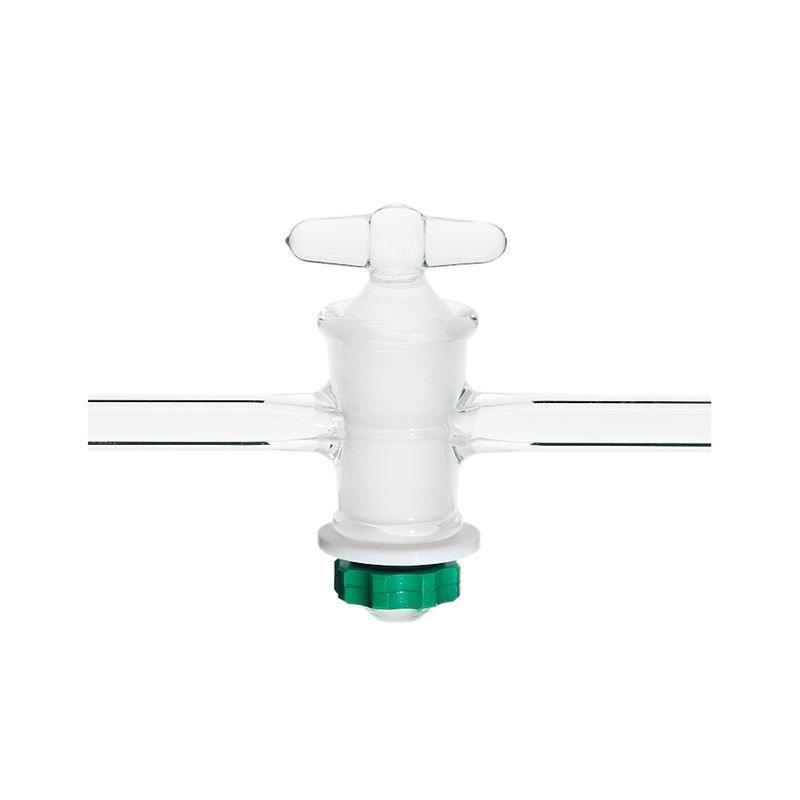

STOPCOCKS, STRAIGHT BORE, PRESSURE, GLASS PLUGS

Solid glass plug has a threaded glass snelling which accepts an assembly similar to the one supplied with standard PTFE stopcocks. This consists of a PTFE washer, PTFE nut and Viton O-ring. Assembly provides for uniform seating tension to be applied to the plug which is precision ground and hand-lapped with corresponding numbers on the barrel and plug.

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-458-01
Stopcock, Straight Bore, Glass Plug, Pressure, 2mm Bore, 12/30 Plug Size, 8mm OD Sidearms
EACH
40
CG-458-02
Stopcock, Straight Bore, Glass Plug, Pressure, 4mm Bore, 17/40 Plug Size, 10mm OD Sidearms
EACH
29
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-458-98NUT, WASHER & O-RING FOR 12/30 PLUGSET
Call for
Availability
CG-458-99NUT, WASHER & O-RING FOR 17/40 PLUGSET
Call for
Availability
