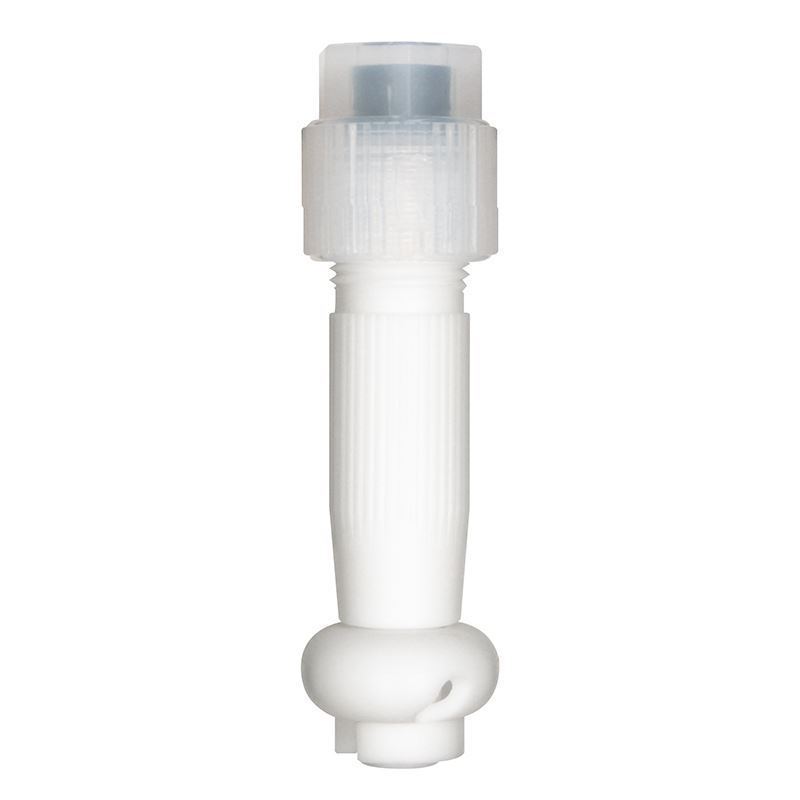

SPRAY BALLS, FLUID DRIVEN, 3/8" COMPRESSION FITTING, PTFE,CIP (CLEAN IN PLACE)

This fluid driven Spray Ball gives nearly 360° spray coverage and is a convenient way to clean Chemglass 10 thru 100L glass reactors without dismantling the entire setup.  It can also be used as a wall wetter. Spray ball is constructed of PTFE, the removable PTFE clip allows the rotating spray head to be easily removed for inspection and maintenance. 3/8” Top compression fitting is for connection to 3/8” FEP or PTFE tubing.

The minimum joint clearance for 22mm and 36mm spray ball is 45/50

Please Note: Connecting Adapters And 3/8” PTFE Tubing Are Sold Separately. Optional Stainless Steel Tubing Is Available To Provide A Rigid Straight Connection For Insertion Into a Reactor. Contact Technical Service For More Information [email protected]

Features:

• Spray Ball/Head- Has Larger Slots for Improved Spray Pattern and Velocity of Spray
• Larger Bore for More Flow
• 3/8" Compression Fitting
• All PTFE Body and Spray Ball

Pressure and Flow Information:

CG-1989-X-22: 22mm Spray Ball -max tank diameter: 2.5ft
@ 15 PSI (min pressure to spin): 7.23 L/min
@ 50 PSI: 14.29 L/min

CG-1989-X-35: 35mm Spray Ball -max tank diameter: 4.0ft
@ 20 PSI (min pressure to spin): 10.45 L/min
@ 50 PSI: 19.23 L/min
