CG-147

REACTION KETTLE FLANGES, DURAN®, WITH O-RING GROOVE

O-Ring Flanges

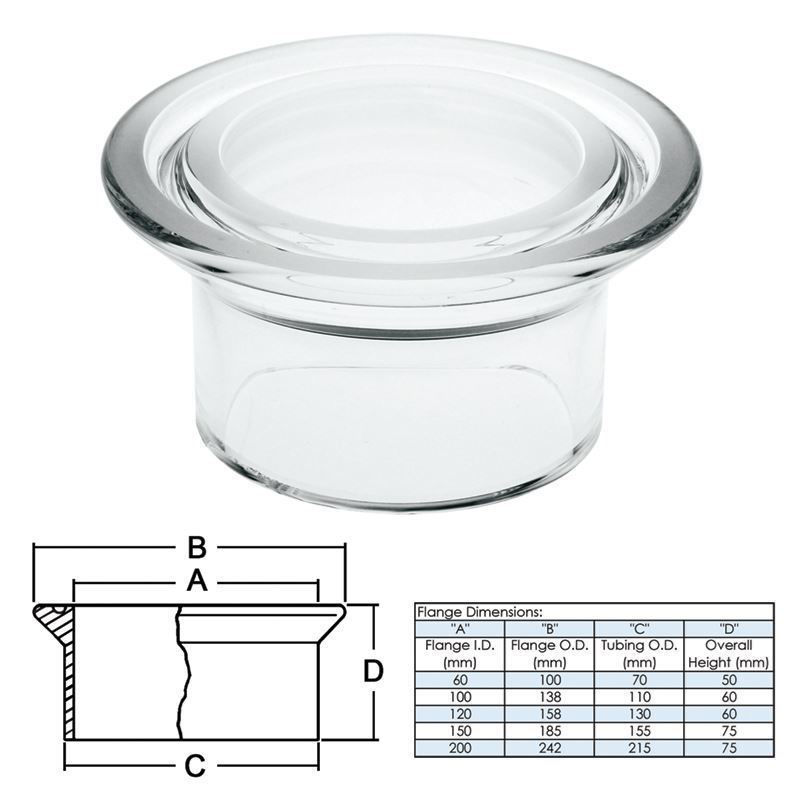

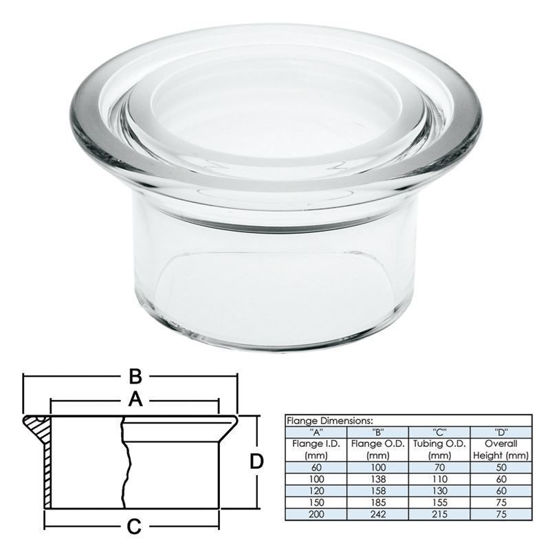

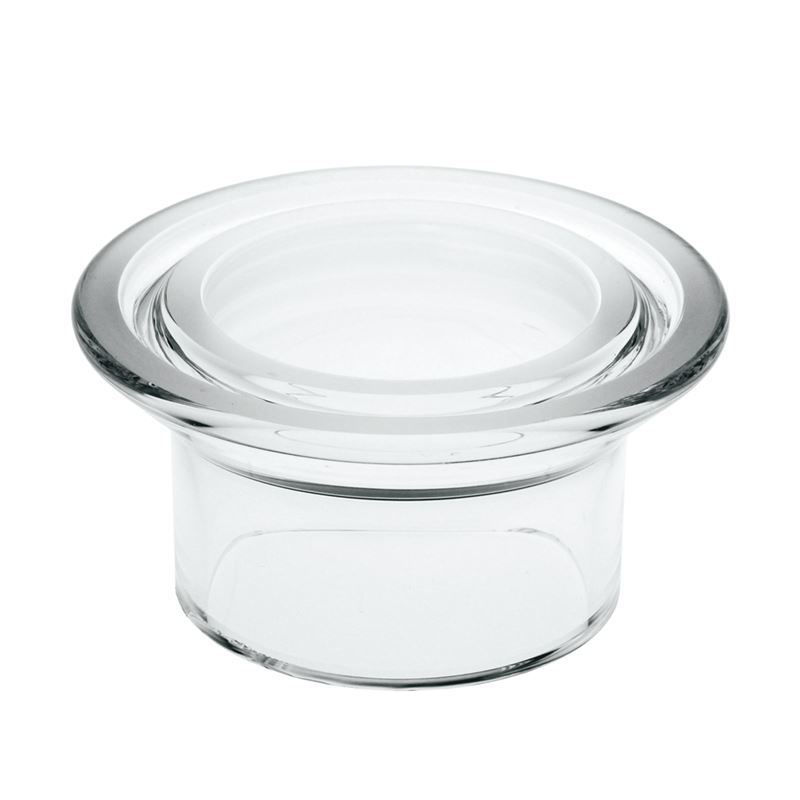

Flange is formed with a groove in the flat portion of the mating surface to accept an O-Ring. The flange also has a ground surface, permitting assembly with either the CG-148 flat flange or CG-149 lid blank using grease. In the greased application, the O-Ring groove prevents grease from entering the reaction kettle and causing possible contamination. Outer taper of flange is formed at a 45º angle to accept CG-141 and CG-141-T clamps.

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-147-01	Flange, Reaction Kettle, 60mm I.D., With O-Ring Groove	EACH	✱	$87.95	81	Qty:
SKU: CG-147-02	Flange, Reaction Kettle, 100mm I.D., With O-Ring Groove	EACH	✱	$119.10	Call for Availability	Qty:
SKU: CG-147-03	Flange, Reaction Kettle, 120mm I.D., With O-Ring Groove	EACH	✱	$202.80	16	Qty:
SKU: CG-147-04	Flange, Reaction Kettle, 150mm I.D., With O-Ring Groove	EACH	✱	$223.55	Call for Availability	Qty:
SKU: CG-147-05	Flange, Reaction Kettle, 200mm I.D., With O-Ring Groove	EACH	✱	$338.80	32	Qty:
✱ Manufactured Glassware Product Line

Replacement Parts
Suggested Products

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CG-147-20	O-Ring, Viton®, 60mm Flange	EACH	✱	$11.25	47	Qty:
SKU: CG-147-21	O-Ring, Viton®, 100mm Flange	EACH	✱	$15.35	Call for Availability	Qty:
SKU: CG-147-22	O-Ring, Viton®, 120mm Flange	EACH	✱	$21.05	22	Qty:
SKU: CG-147-23	O-Ring, Viton®, 150mm Flange	EACH	✱	$30.35	72	Qty:
SKU: CG-147-24	O-Ring, Viton®, 200mm Flange	EACH	✱	$49.35	33	Qty:
SKU: CG-147-30	O-Ring, Silicone, 60mm Flange	EACH	✱	$16.40	11	Qty:
SKU: CG-147-31	O-Ring, Silicone, 100mm Flange	EACH	✱	$25.00	40	Qty:
SKU: CG-147-32	O-Ring, Silicone, 120mm Flange	EACH	✱	$36.50	23	Qty:
SKU: CG-147-33	O-Ring, Silicone, 150mm Flange	EACH	✱	$49.65	22	Qty:
SKU: CG-147-34	O-Ring, Silicone, 200mm Flange	EACH	✱	$60.10	18	Qty:
SKU: CG-147-40	O-Ring, FEP-Silicone, 60mm Flange	EACH	✱	$39.15	48	Qty:
SKU: CG-147-41	O-Ring, FEP-Silicone, 100mm Flange	EACH	✱	$47.20	34	Qty:
SKU: CG-147-42	O-Ring, FEP-Silicone, 120mm Flange	EACH	✱	$53.65	18	Qty:
SKU: CG-147-43	O-Ring, FEP-Silicone, 150mm Flange	EACH	✱	$62.80	47	Qty:
SKU: CG-147-44	O-Ring, FEP-Silicone, 200mm Flange	EACH	✱	$78.30	11	Qty:
SKU: CG-147-75	O-Ring, FEP-Stainless Steel, 60mm Flange	EACH	✱	$130.10	15	Qty:
SKU: CG-147-76	O-Ring, FEP-Stainless Steel, 100mm Flange	EACH	✱	$165.65	30	Qty:
SKU: CG-147-77	O-Ring, FEP-Stainless Steel, 150mm Flange	EACH	✱	$157.15	71	Qty:
SKU: CG-147-78	O-Ring, FEP-Stainless Steel, 200mm Flange	EACH	✱	$233.50	6	Qty:
SKU: CG-147-79	O-Ring, FEP-Stainless Steel, 80mm Flange	EACH	✱	$127.50	58	Qty:
SKU: CG-147-80	O-Ring, Perfluoro (FFKM), White, 60mm Flange	EACH	✱	$321.50	47	Qty:
SKU: CG-147-82	O-Ring, Perfluoro (FFKM), White, 100mm Flange	EACH	✱	$377.25	40	Qty:
SKU: CG-147-83	O-Ring, Perfluoro (FFKM), White, 150mm Flange	EACH	✱	$640.15	51	Qty:
SKU: CG-147-84	O-Ring, Perfluoro (FFKM), White, 200mm Flange	EACH	✱	$728.80	49	Qty:
✱ Chemistry Equipment and Hardware Product line
