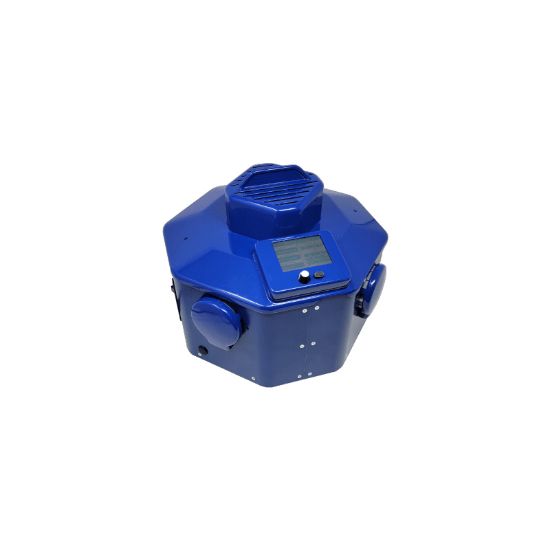

PHOTOREDOX BOX UV/VIS, EVOLUCHEM™, PHOTOCHEMISTRY PHOTOREACTORS, HEPATOCHEM

Features

• Single Wavelength LED irradiation from 254 nm to 808 nm
• Light intensity control with digital display
• Temperature monitoring and control from RT to 60°C
• Built in stir plate
• Screen multiple reactions simultaneously

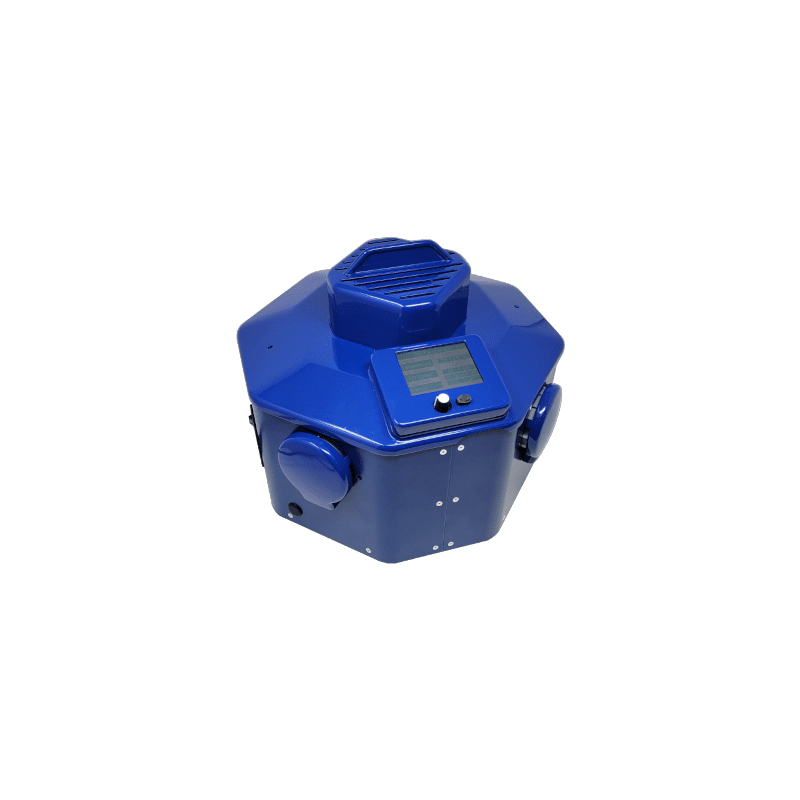

This photoreactor is designed to perform photochemical reactions using UV and Visible light from 254 nm to 808 nm. It is compatible with holders for 8X 4 ml vials, 8X 8ml vials and 4X 20 ml vials. The reaction temperature is monitored using a IR probe and regulated with internal fans. This photoreactor comprises a stirring module and user interface to setup the experiments.

IR Temperature Monitoring

Monitoring the temperature of a photochemical reaction can be difficult and error prone based on how the temperature is being determined and the type of temperature in the probe.

Upon irradiation with high powered light from LEDs, the vial, solvent, reaction, photoreactor and the temperature probe itself can increase in temperature.  For the purposes of safety, all of these measurements are important.  To understand our chemical reaction, what is most important is the true temperature in the solution.

The instrument uses a IR probe to accurately measure temperature while the reaction is being irradiated was determined.

Compatible with EvoluChem PF dimmable LEDs

This photoreactor uses (4) PF Dimmable LEDs
254 nm to 808 nm available
