CG-1723

FUNNELS, POWDER ADDITION

Facilitates the delivery of free-flowing, granular solids into reactions. Pressure equalizing arm is equipped with a vented stopper for air-free operations and also permits access into the delivery stem for easy clean-out. One piece, easily removed grooved PTFE auger delivers powders at a uniform rate. The 250 and 500mL capacities have the larger, deep cut auger (Size B) for use with coarse material. Funnel has a lower inner joint and top outer, both being the size listed.

CG-1723-20 PTFE Auger Size "A" has Internal O-rings Only on the Shaft (See Specifications Tab)
CG-1723-22 PTFE Auger Size "B" has Internal and External Viton O-rings on the Shaft (See Specifications Tab)

Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1723-01
10mL Powder Addition Funnel, 14/20 Joint Size, Auger A
EACH
2
CG-1723-03
10mL Powder Addition Funnel, 24/40 Joint Size, Auger A
EACH
1
CG-1723-05
50mL Powder Addition Funnel, 14/20 Joint Size, Auger A
EACH
Call for
Availability
CG-1723-07
50mL Powder Addition Funnel, 24/40 Joint Size, Auger A
EACH
1
CG-1723-08
50mL Powder Addition Funnel, 29/26 Joint Size, Auger A
EACH
2
CG-1723-11
100mL Powder Addition Funnel, 24/40 Joint Size, Auger A
EACH
1
CG-1723-12
100mL Powder Addition Funnel, 29/26 Joint Size, Auger A
EACH
2
CG-1723-13
250mL Powder Addition Funnel, 24/40 Joint Size, Auger B
EACH
Call for
Availability
CG-1723-15
250mL Powder Addition Funnel, 29/26 Joint Size, Auger B
EACH
2
CG-1723-16
500mL Powder Addition Funnel, 24/40 Joint Size, Auger B
EACH
Call for
Availability
CG-1723-17
500mL Powder Addition Funnel, 29/42 Joint Size, Auger B
EACH
Call for
Availability
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-1723-20Replacement PTFE® Auger AEACH
44
CG-1723-22Replacement PTFE® Auger BEACH
11

Part NumberSizeAuger Assembled and Exploded View

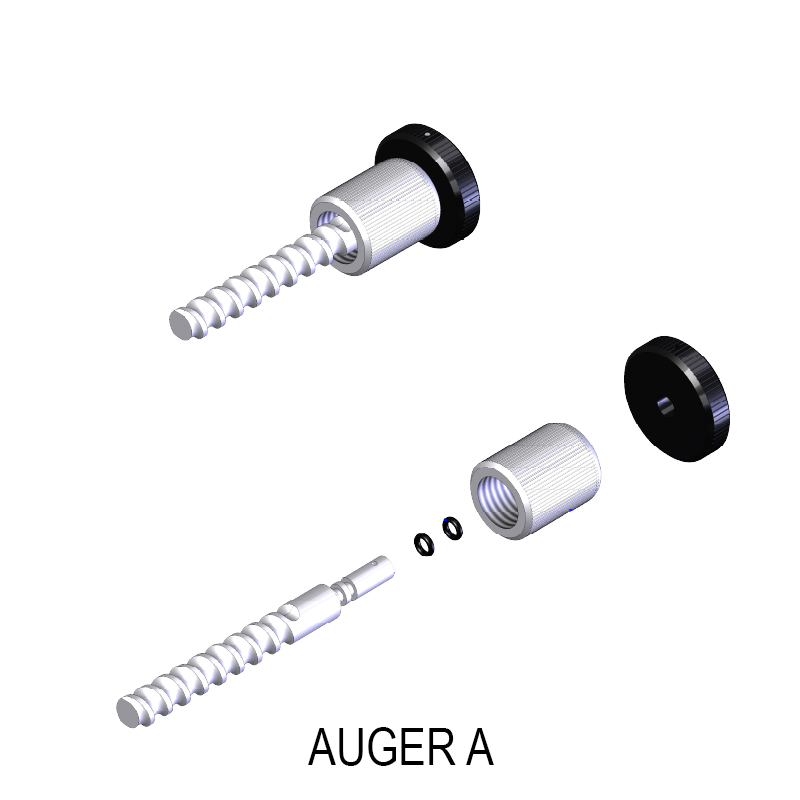

CG-1723-20PTFE AUGER SIZE ACG-1723-20 Auger Size A

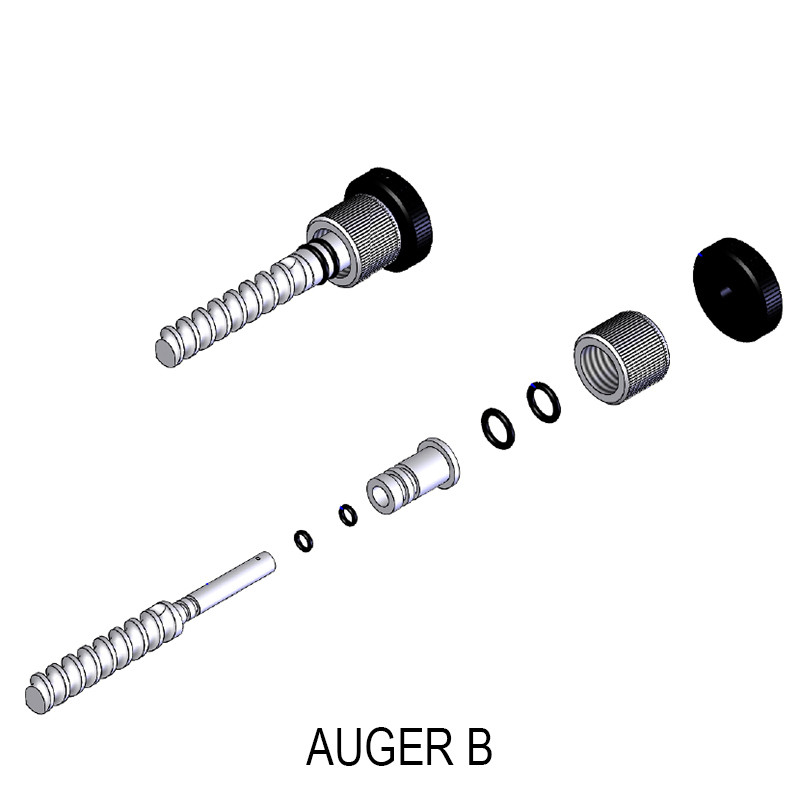

CG-1723-22PTFE AUGER SIZE BCG-1723-22 Auger Size B
