CLS-2501

DIGITAL INCUBATOR SHAKER, INC 125 FS, 20MM OR 25MM ORBIT, 125L (4.4 CU FT), 100-120VAC, 50/60HZ, IKA

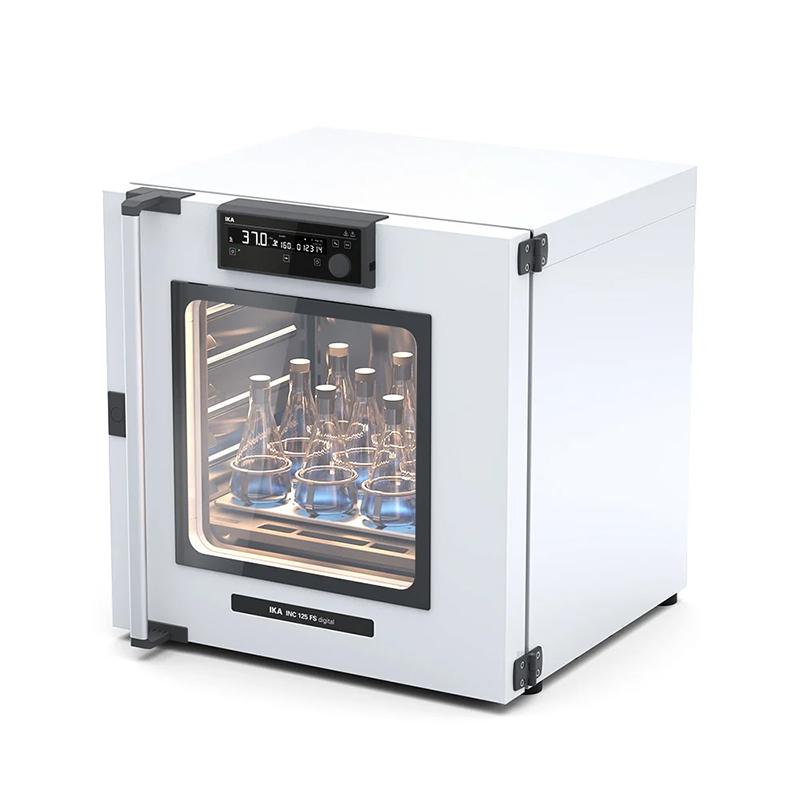

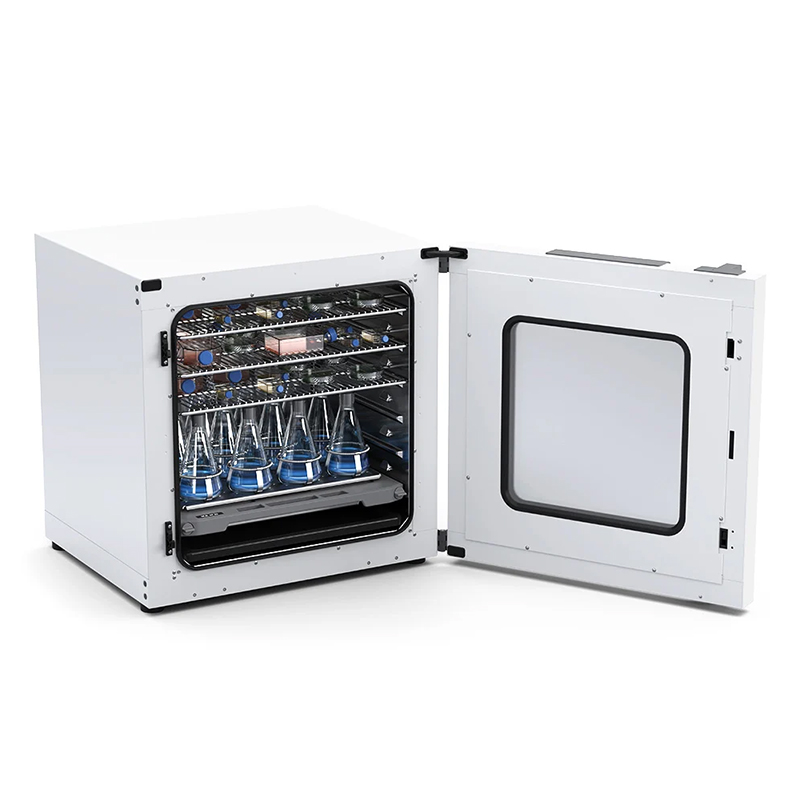

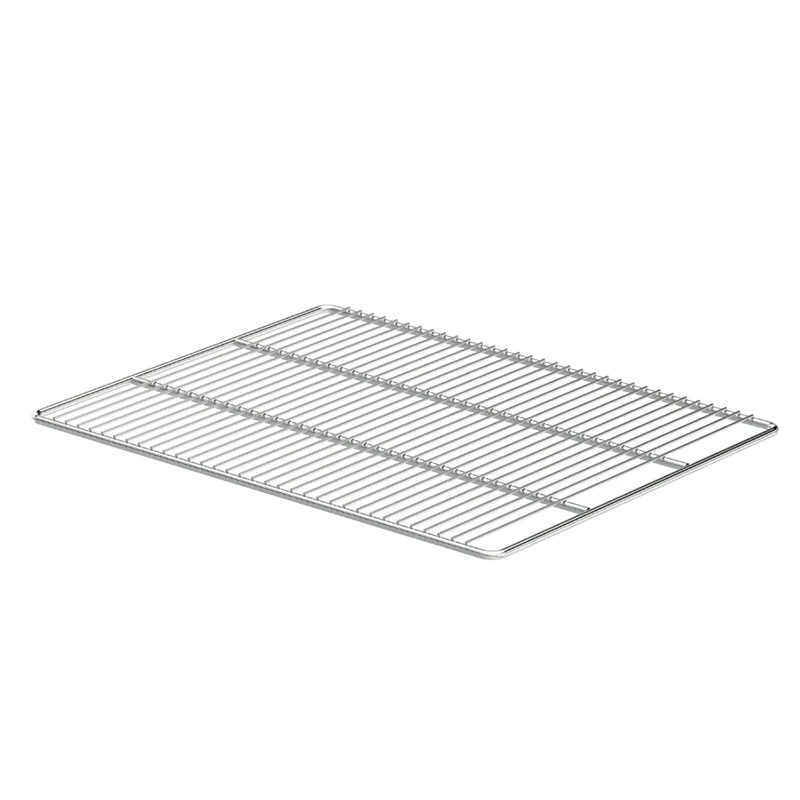

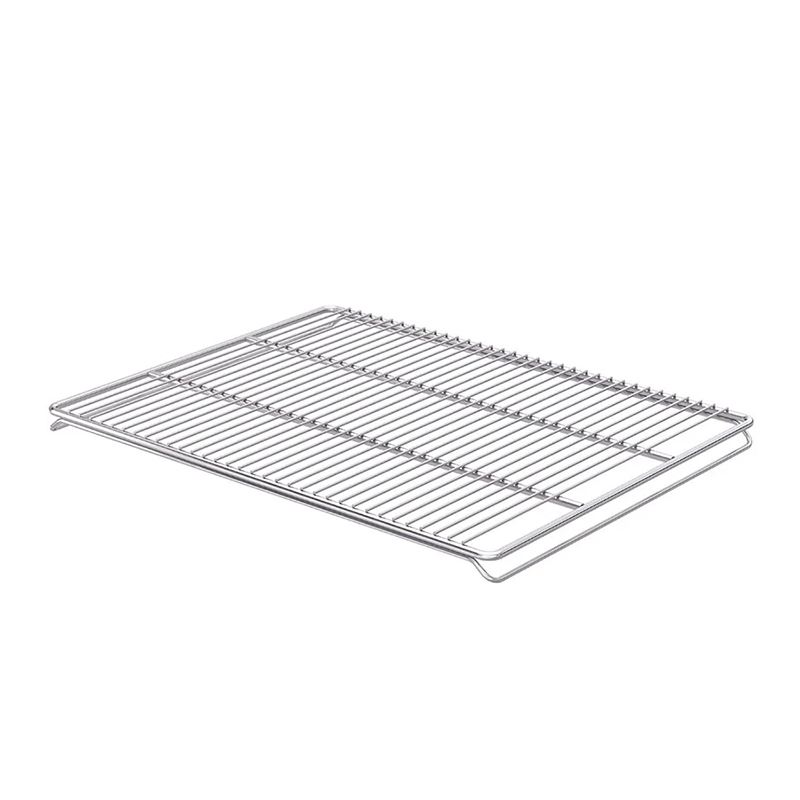

INC 125 FS digital is the first incubator shaker with a patented removable shaker platform. Without the platform, the unit can be used like a normal incubator. The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaker platform).
Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubator shaker is the perfect solution for cell cultivation and other microbiological applications.

Patented removable shaker platform
• High shaking speed up to 300 rpm
• Shaking stroke: 20 mm (optional: 25 mm) for optimum oxygen input

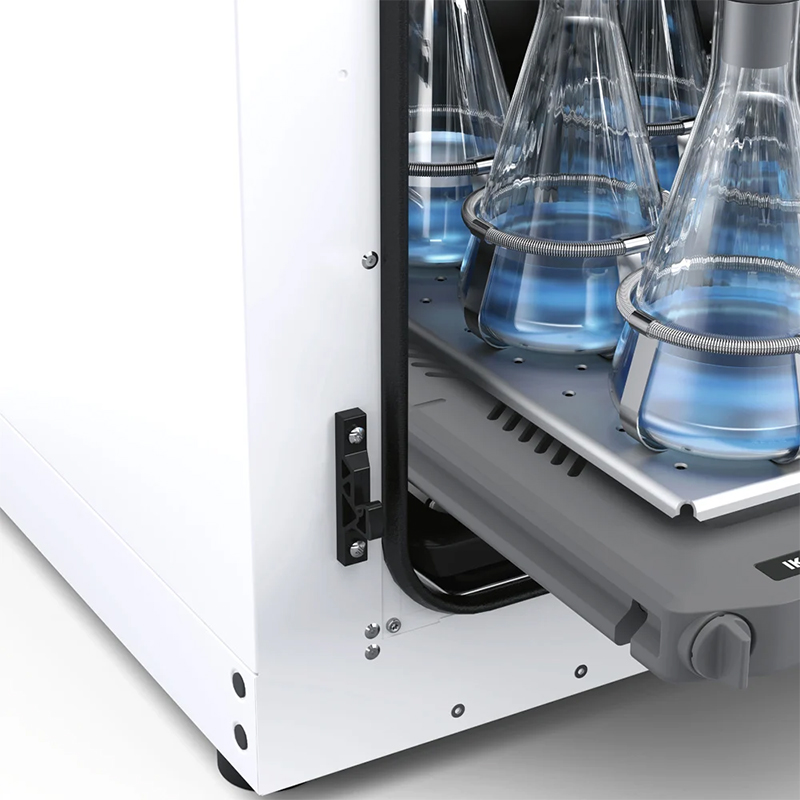

• The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading.
• The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
• Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
• When the door is opened, the shaking function stops automatically
• Shaking and temperature control function can be used independently of each other

Easy to clean
• Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304

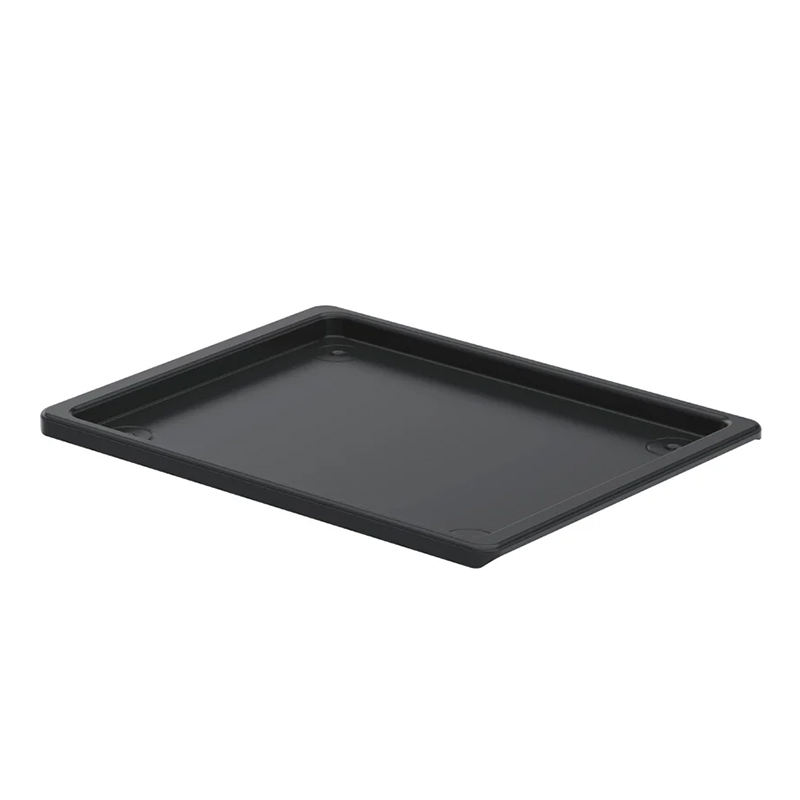

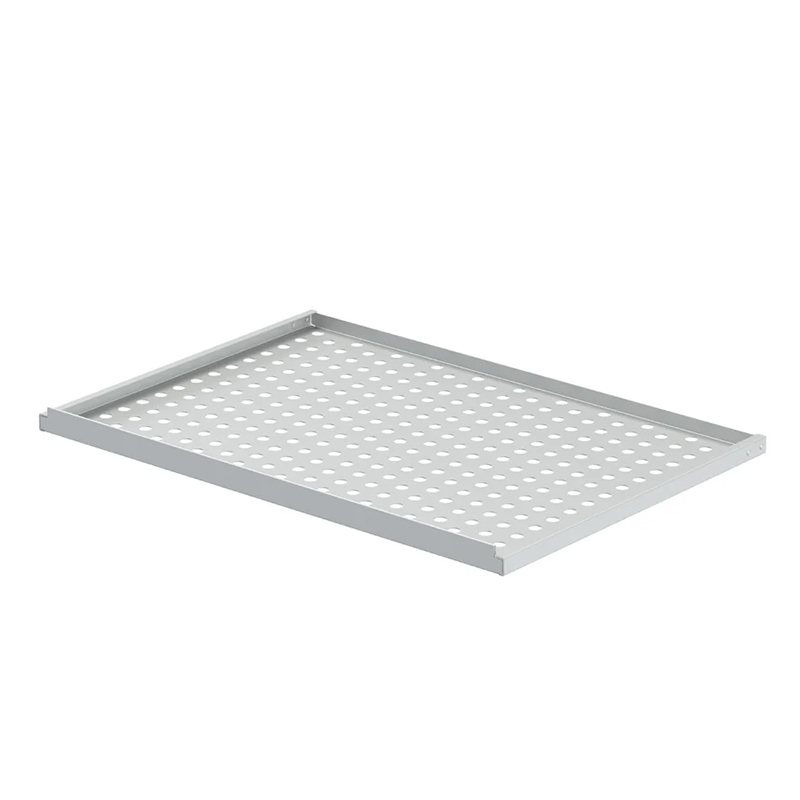

• The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
• Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)

Optimal temperature control
• Wide temperature range: RT +8°C to 80 °C
• Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
• Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)

Simple and intuitive operation
• Very large LCD display for easy reading
• Large viewing window and switchable interior lighting for observation of samples
• Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions

Versatile accessories

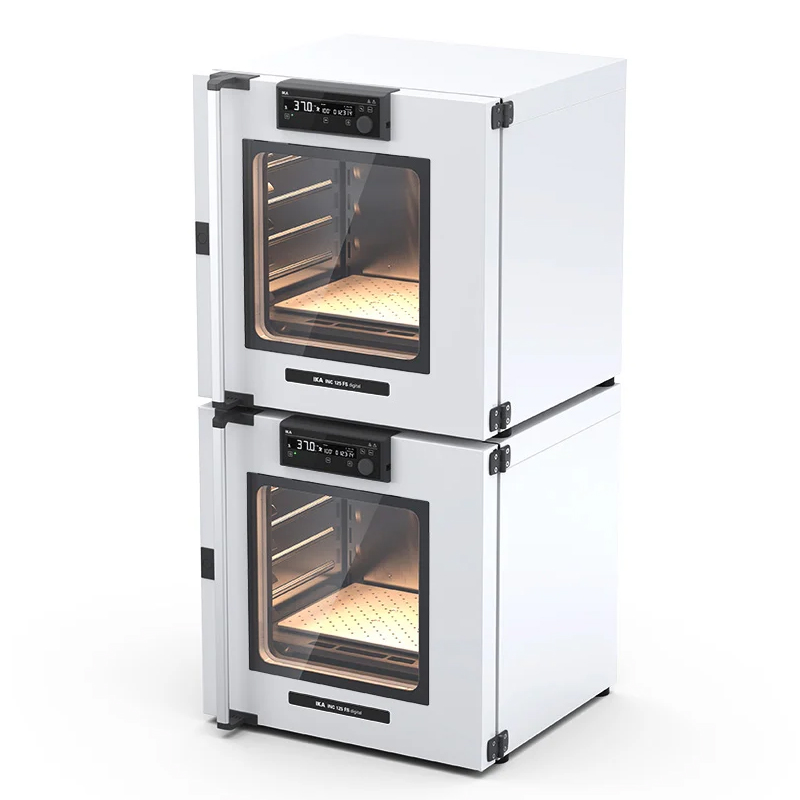

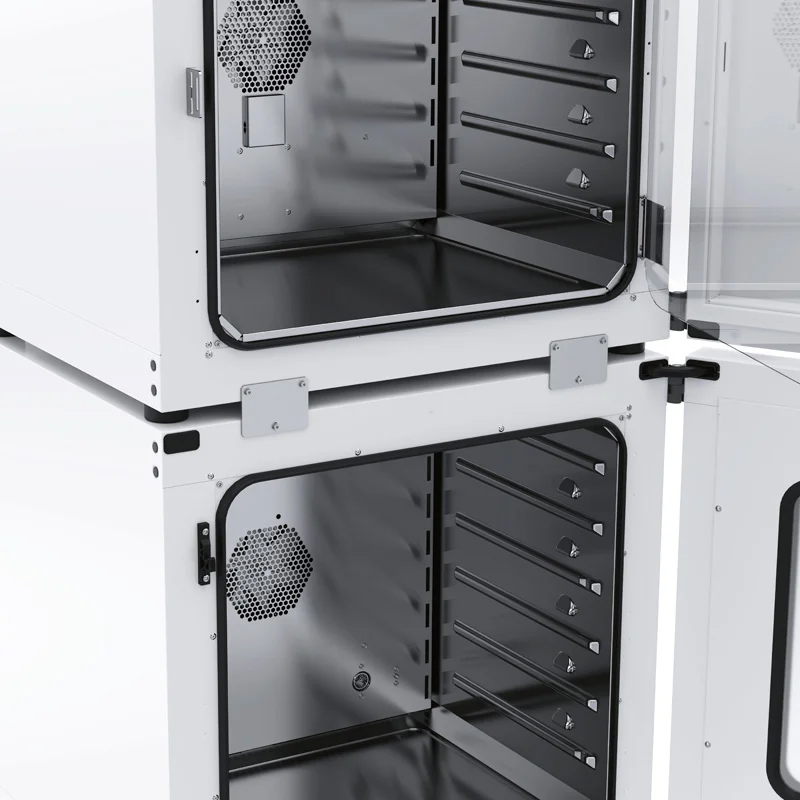

• Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)
• Different trays available
• Shaking platform available with 20 or 25 mm shaking stroke

In accordance with IKA terms of sale and delivery, the warranty period is 24 months. For claims under the warranty please contact your local dealer. You may also send the machine direct to our factory, enclosing the delivery invoice and giving reasons for the claim. You will be liable for freight costs. The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use, insufficient care or maintenance not carried out in accordance with the instructions in the operating manual.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-2501-20
Digital Incubator Shaker, INC 125 FS SP20, 125L (4.4 Cu Ft), 20mm Orbit, 100-120VAC, 50/60Hz, IKA
EACH
$6,698.00
Call for Availability
SKU: CLS-2501-25
Digital Incubator Shaker, INC 125 FS SP25, 125L (4.4 Cu Ft), 25mm Orbit, 100-120VAC, 50/60Hz, IKA
EACH
$6,698.00
Call for Availability
  • ✱ Life Science LM Product Line
Heat Output 750W
Working Temperature Room Temp. +8 - 80 °C
Adjustment and Display Resolution 0.1K
Temperature Stability (37°C @22°C) ±0.1K
Temperature Homogeneity (37°C @22°C) ±0.2K
Temperature Heat Up Time (37°C @22°C) 12 min
Temperature Door Recovery (37°C @22°C) 2 min
Temperature Display Yes
Display LCD
Time Setting Max. 100 D
Number of Trays Max. 6
Load for One Tray Max. 20kg
Operating Area Inner Chamber 550 x 550 x 415mm
Total Volume Inner Chamber 125L
Thermal Safety Devices According DIN 12880 TB Class 1
Set-Point Limiter with Safety Shutdown Yes
Door with Window Yes
Temperature Sensor Control PT 100 4 Wire
Cleaning Thermal Decontamination (120°C) Yes
Thermal Decontamination with SP20/25 (100°C) Yes
Shaking Stroke 20mm (CLS-2501-20) / 25mm (CLS-2501-25)
Speed Range 10 - 300RPM
Speed Deviation ±5RPM
Permissible Shaking Weight (Including Attachements) 7.5Kg
Set-Up Plate Dimensions 340 x 480mm
Power Consumption at 37°C 85 Wh/h
Dimensions (W x H x D) 700 x 720 x 635mm
Weight 70kg
Permissible Ambient Temperature 15 - 32°C
Permissible Relative Humidity 80%
Protection Class According to DIN EN 60529 IP 20
USB Interface USB-B
Voltage 100 - 120V
Frequency 50/60Hz
Power Input 800W
Power Input Max. 800W
Power Input Standby 2W
Fuse 2x T10A 250V
