CLS-3453-CG

CONTROL DRYING OVEN WITH GLASS FRONT DOOR, 125L (4.4 CU FT), IKA OVEN 125, 115V 50/60HZ, IKA

The models in the IKA Oven 125 dry series are powerful drying cabinets for temperature regulation, drying, ageing and heating tasks. Rapid heating and exact temperature regulation guarantee reproducible results in industrial laboratories, schools and universities, research, quality control or science. Thanks to its high-quality insulation, the device has a very large interior of 125 l in relation to its total volume. This structure also reduces odor emissions and operating costs and ensures excellent temperature uniformity.

The Oven 125 control dry recirculating air drying cabinet heats up to 300 °C. The additional temperature selection limited TWB (DIN 12880) meets the highest security requirements. Furthermore, the temperature curve can be monitored during testing independently of the safety temperature. This means that your test material is always protected.

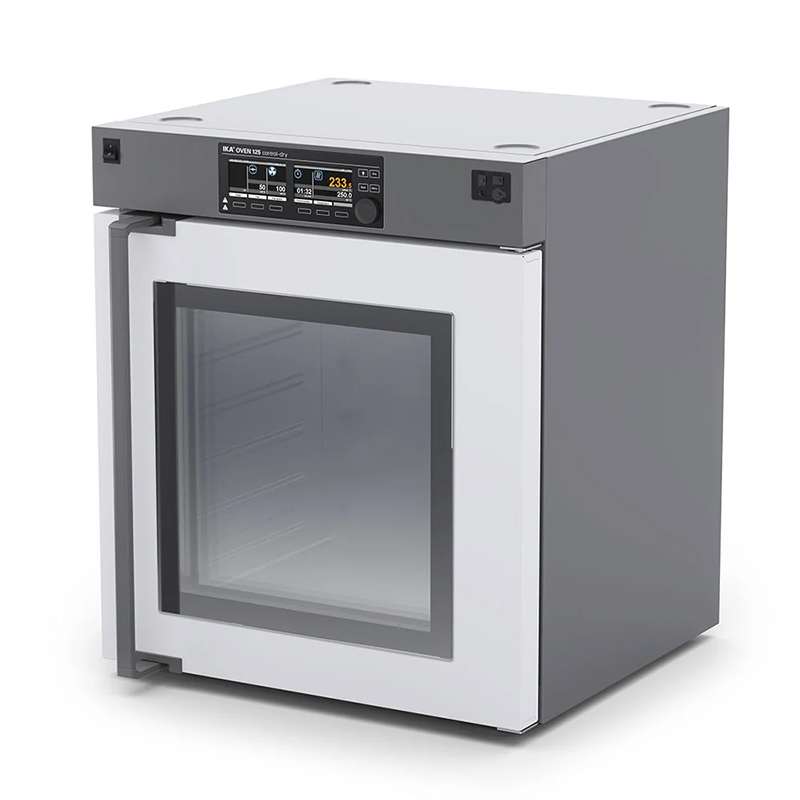

The glass door allows for better monitoring of your samples.

A well thought out interior:

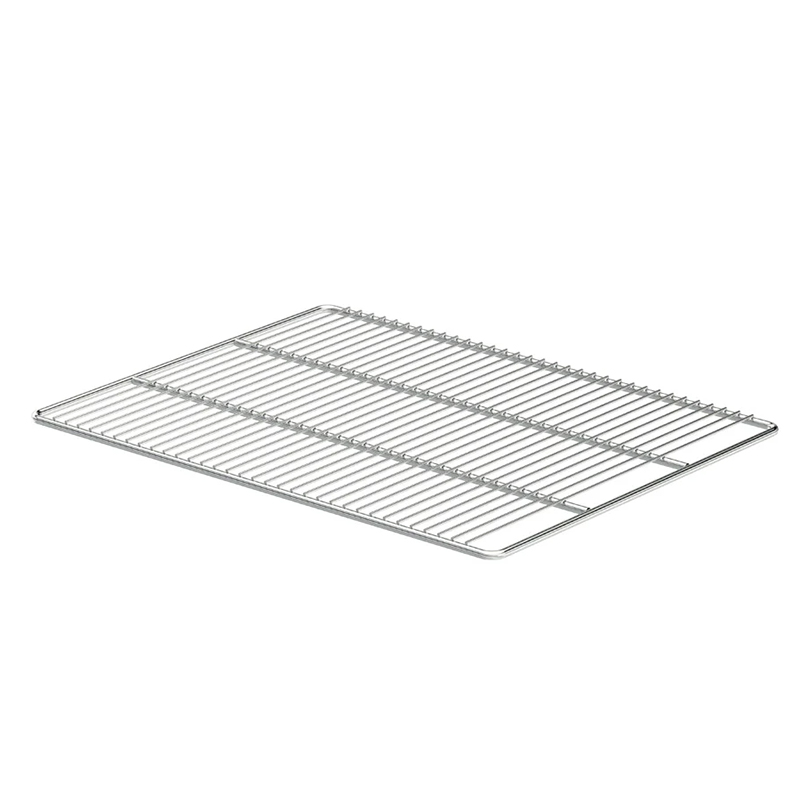

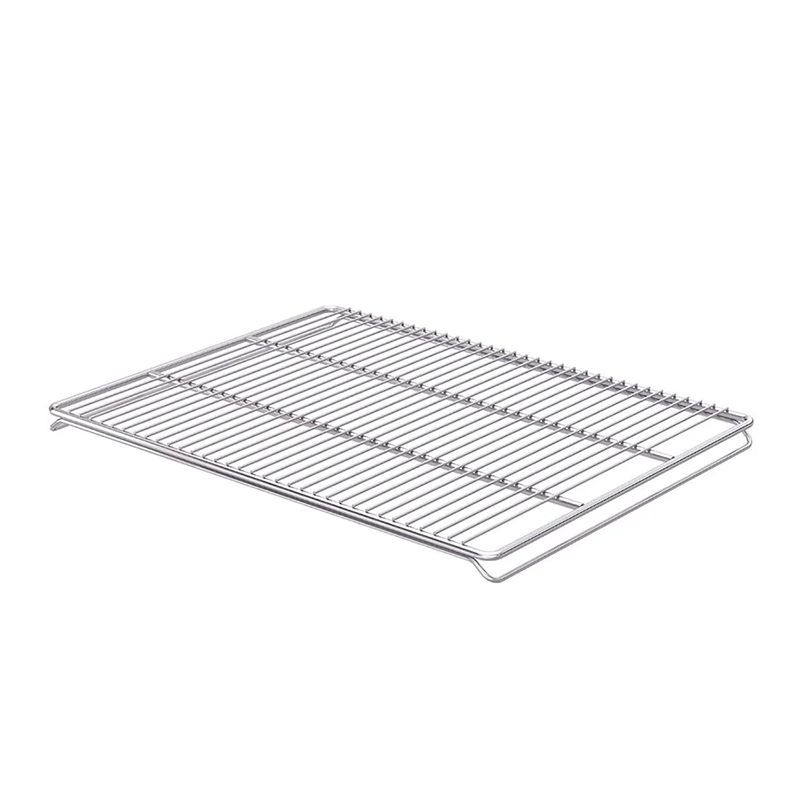

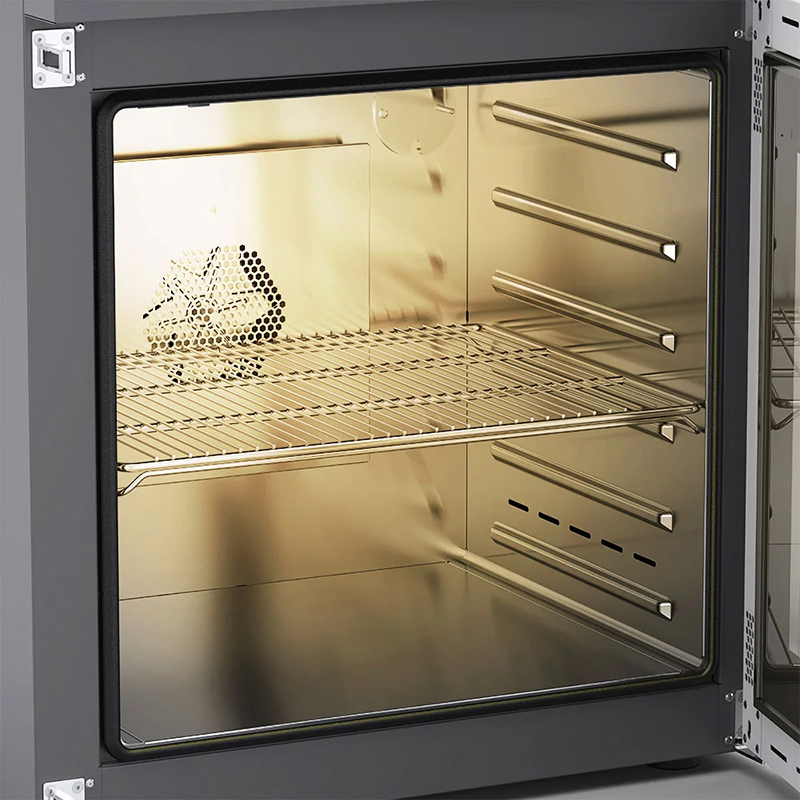

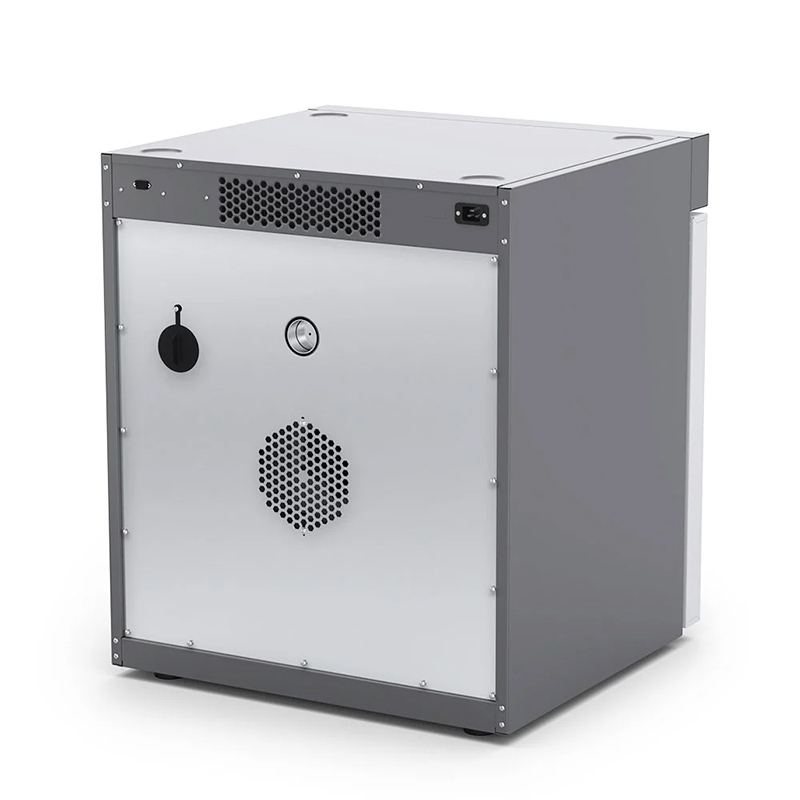

The generously dimensioned interior of the Oven 125 control dry is comfortably illuminated. A practical cable bushing at the rear of the device is provided as standard for measurements in the oven or in the test material. The fan switches off automatically if the door is open. Up to 6 insertable shelves can be accommodated in the interior made of stainless steel.

Interfaces:
The Oven 125 control dry offers an interface for an additional sensor for direct temperature regulation in the test material. Test parameters can be stored directly on a USB stick.

Two displays:
All important process parameters are displayed clearly on two large TFT displays. The temperature profiles and individual user profiles can be entered via the intuitive user interface. The real-time clock enables convenient digital documentation and a time-delayed start.

In accordance with IKA terms of sale and delivery, the warranty period is 24 months. For claims under the warranty please contact your local dealer. You may also send the machine direct to our factory, enclosing the delivery invoice and giving reasons for the claim. You will be liable for freight costs. The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use, insufficient care or maintenance not carried out in accordance with the instructions in the operating manual.

Item Number Item Description PQ PL Price Qty Avail Quantity
SKU: CLS-3453-CG-01
Control Drying Oven with Glass Front Door, 125L (4.4 Cu Ft), IKA OVEN 125, 115V 50/60Hz, IKA
EACH
$5,280.00
Call for Availability
  • ✱ Life Science LM Product Line
Heat output 1500 W
Working temperature room temp. +5 - 250 °C
Adjustable safety circuit 50 - 270 °C
Adjustment and display resolution 0.1 K
Temperature stability (150°C, center, standard door) ±0.5 K
Temperature display yes
Timer yes
Timer display LCD
Time setting range 1 - 142560 min
Number of trays max. 6
Load for one tray max. 30 kg
Operating area inner chamber 550 x 525 x 450 mm
Total volume inner chamber 125 L
Air outlet port diameter inside 48 mm
Thermal safety devices according DIN 12880 TB class 1
2. Thermal safety devices DIN 12880 TWW Klasse 3.1
Dimensions (W x H x D) 700 x 825 x 650 mm
Weight 89 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface USB-B
Voltage 115 V
Frequency 50/60 Hz
Power input 1600 W
Power input standby 2 W
