CGV-301

CHEMSYNT 301 REACTION STATIONS, SYNTHESIS REACTORS, VELP

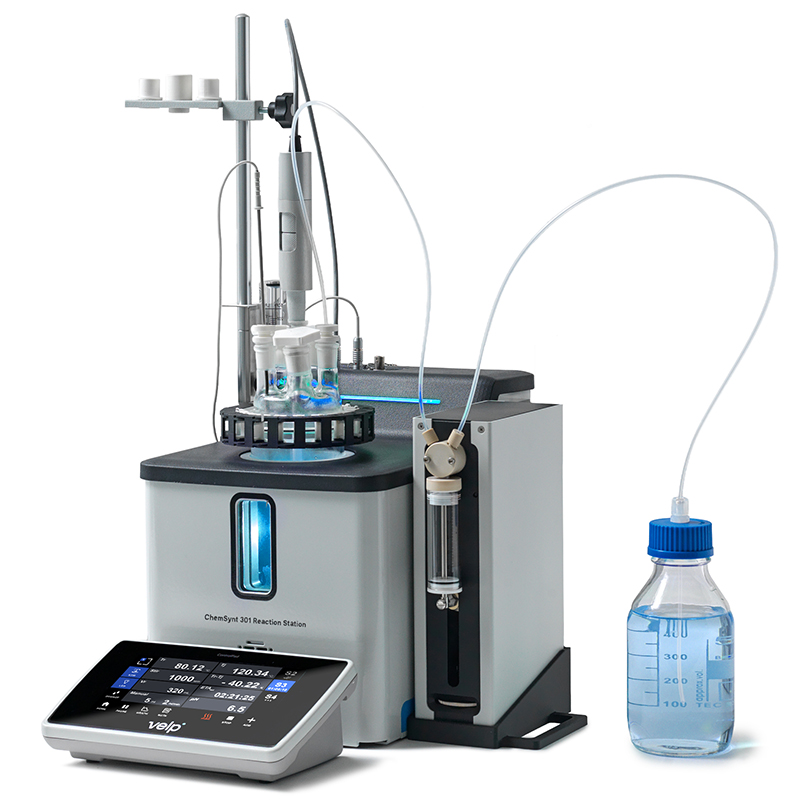

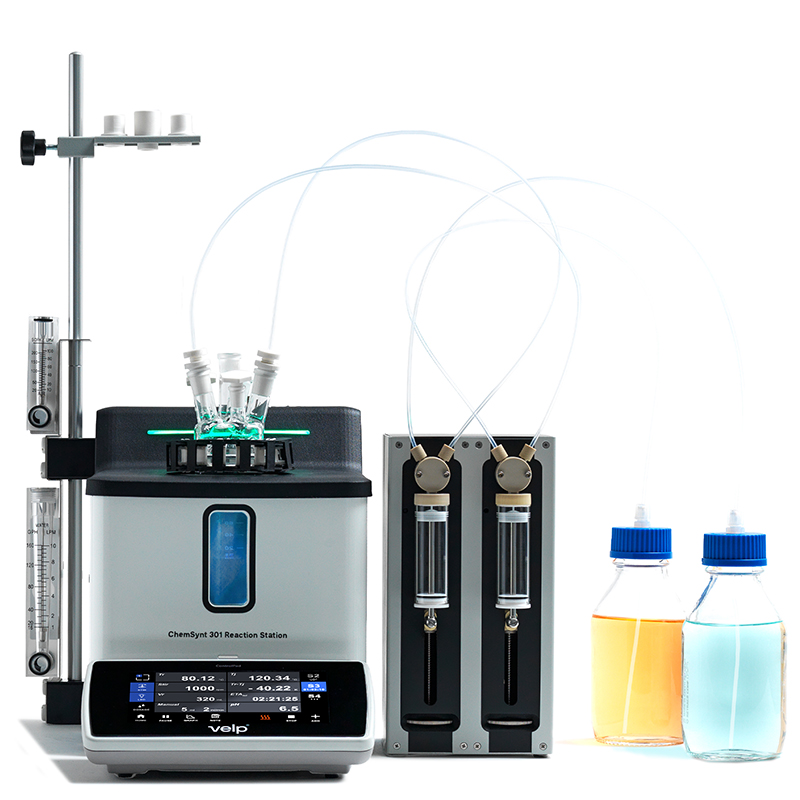

The Velp ChemSynt 301 is a modular and automated reaction workstation designed to precisely control temperature, pH, stirring and reagent dosing during chemical synthesis. It enables real-time data collection and unattended 24/7 operation for up to 7 days, reducing manual workload while improving process understanding, optimization and scale-up efficiency.

Precise Temperature & pH Control

  • Temperature range from -40 °C to +150 °C with programmable ramps
  • Real-time monitoring of Reaction Temperature (Tr) and Jacket Temperature (Tj)
  • pH monitoring and control with possible automated acid-base dosing

Versatile Reactor Configurations

  • Vial-based setup with dedicated adapter and parallel management of up to 5 vials

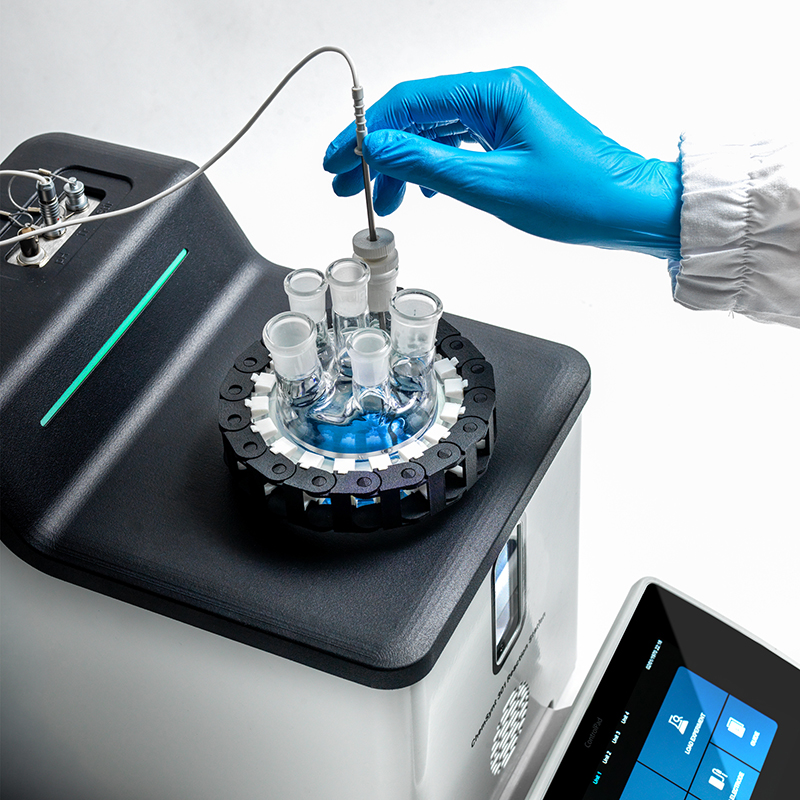

  • 100 mL and 400 mL round-bottom glass reactors for intermediate to larger volumes
  • Two-piece design across all configurations for easy cleaning and immediate access to the medium

Advanced Stirring & Dosing

  • Magnetic and mechanical stirring with three PTFE impeller configurations to mimic industrial conditions
  • Compact overhead motor with screw-lock system for quick impeller installation and minimal footprint

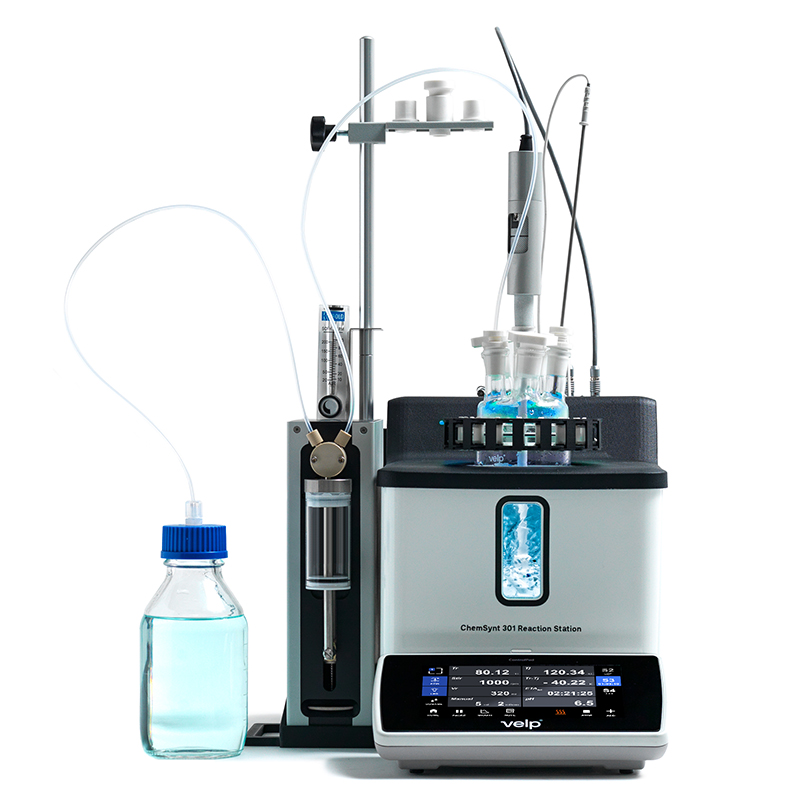

  • Single or double Dosing Unit with 25/50 mL syringes and automatic refill for uninterrupted dosing

Scalability & Centralized Control

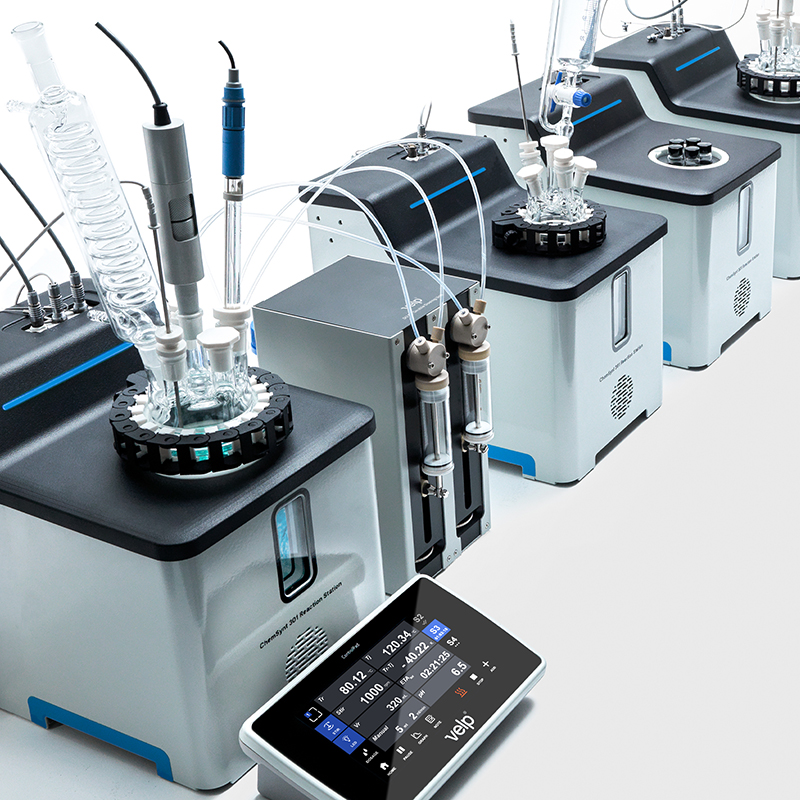

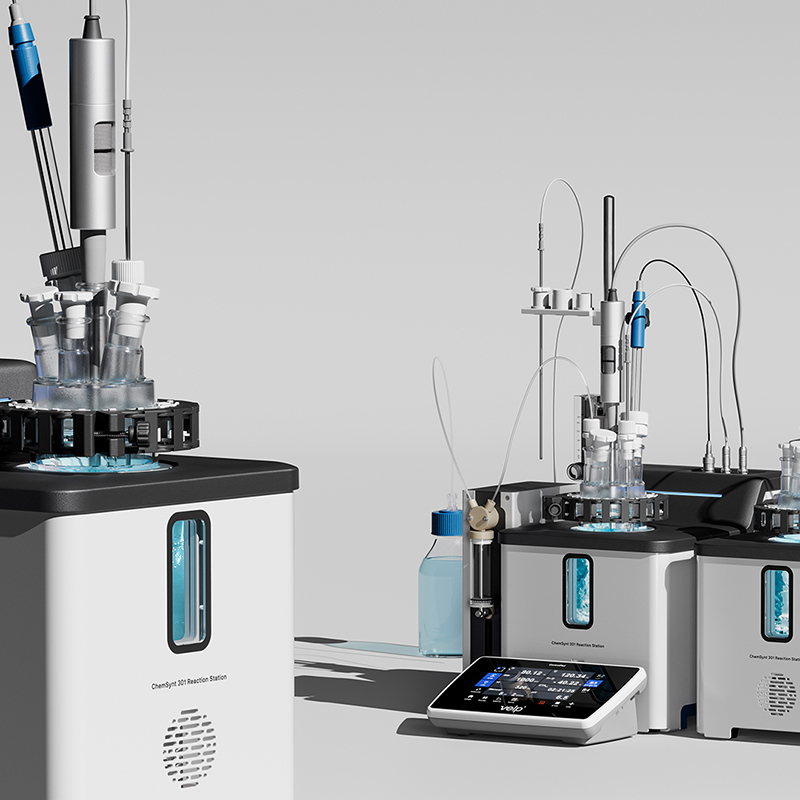

  • Expandible up to 4 independent units combinable for parallel reaction screening and faster process development / optimization

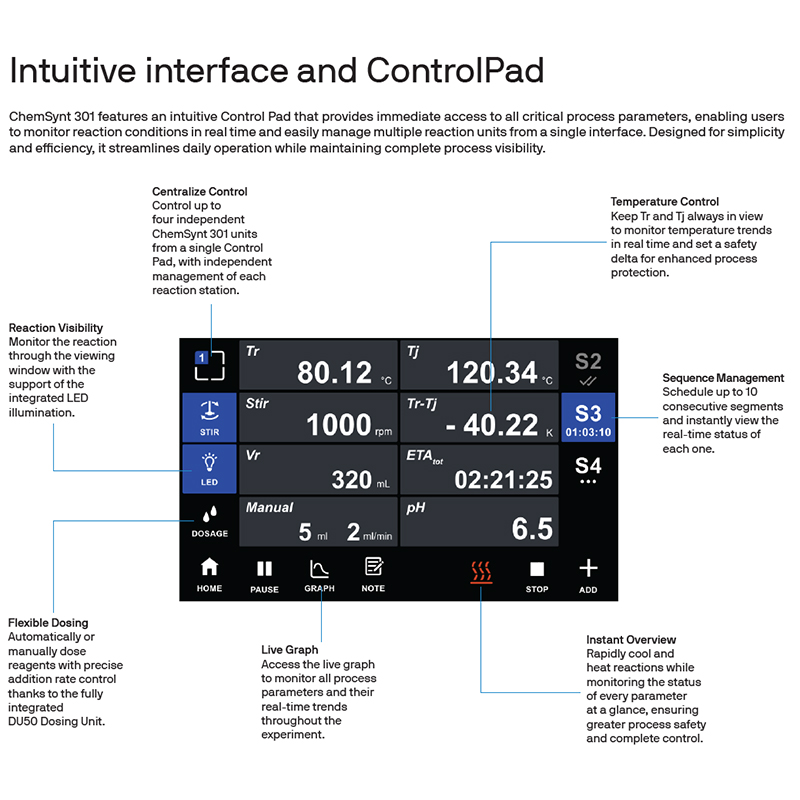

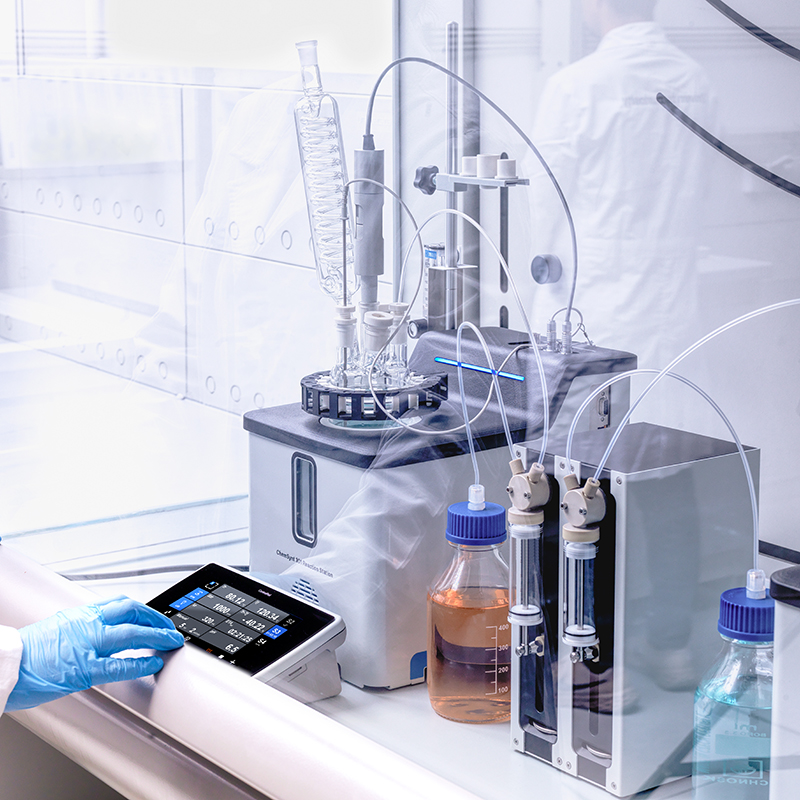

  • Single Control Pad for centralized management of all units and data collection
  • Intuitive interface designed for fast set up and easy access to real time data



Contact Us for Details: [email protected]

This product is sold out
Temperature Range -40°C (with chiller) / -30°C to +150°C
Resolution 0.1 K
Temperature Control Mode Jacket temperature control, reaction temperature control
Stirring Magnetic stirring or mechanical stirring (Optional OHS)
Stirring Speed 50 rpm to 1000 rpm Mechanical and Magnetic Stirring
Data Transfer USB: USB flash drive and/or optional software upgrade
  Ethernet - LAN
Software ERMES Cloud Connectivity
  ControllerSoft PC Software

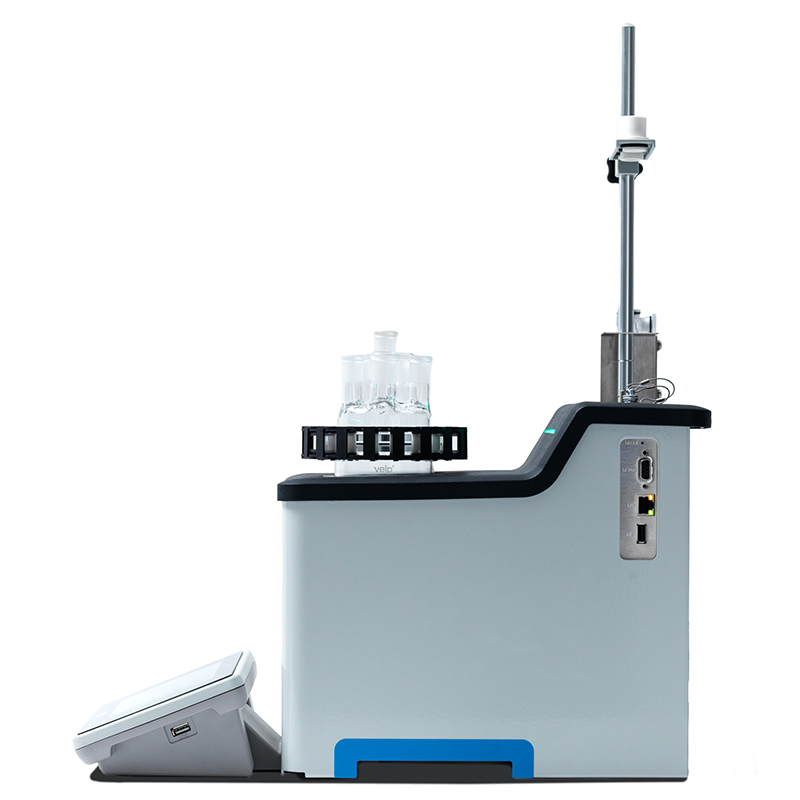

Connectivity USB (type A)
  Ethernet (LAN)
  BNC (pH electrode)
  RS232 (Dosing unit)
  RS484 (Slave unit & control pad)
  LEMO connector (pt100)
  in/out cooling JG ø 8mm (tap water/ with chiller)
  in/out purging push in ø 4mm (dry air or N)
  LEMO connector (OHS)
Power Supply 115 V / 60 Hz and 230 V / 50-60 Hz
Dimensions (W×D×H) System: 287 mm × 486 mm × 600 mm
  Unit: 232 mm × 326 mm × 281 mm
Weight System: 12.33 kg
  Unit: 10.32 kg
