CLS-2544

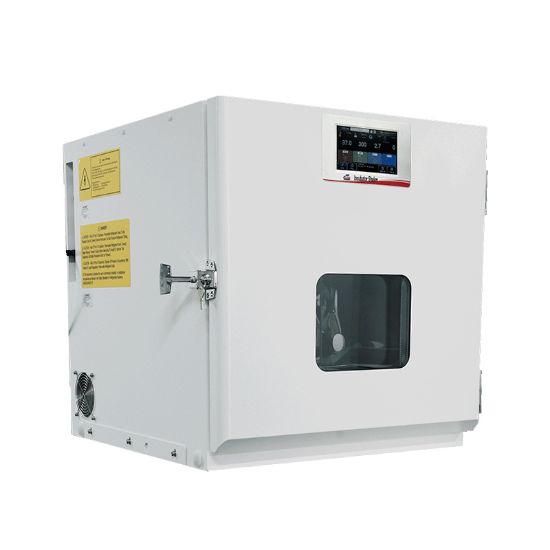

AEOLUS 170L (6.0 CU FT) NON-CO² INCUBATOR SHAKER WITH MAGNETIC DRIVE, 25MM OR 50MM ORBIT, 110V, 60HZ

The Non-CO² 170L Incubator Shaker features Temperature and Shaking, with 25mm or 50mm orbit models available. Its stackable design helps maximize floor space, with the capability of stacking up to 2 units high. Featuring an innovative Magnetic Drive for increased reliability and minimal maintenance. Each model features a static shelf ideal for parallel cell cultivation.

Features

7” High-res color touch screen with intuitive graphic interface
Innovative chamber design features smooth rounded internal corners for easy cleaning
Static shelf provides 18 x 18” platform for parallel cell cultivation
UV lights for easy sterilization
Audible and visual alarms
Mirror finish, pharmaceutical grade stainless steel chamber
Stackable design up to 2 units
25mm and 50mm orbit models available
2 Year Warranty

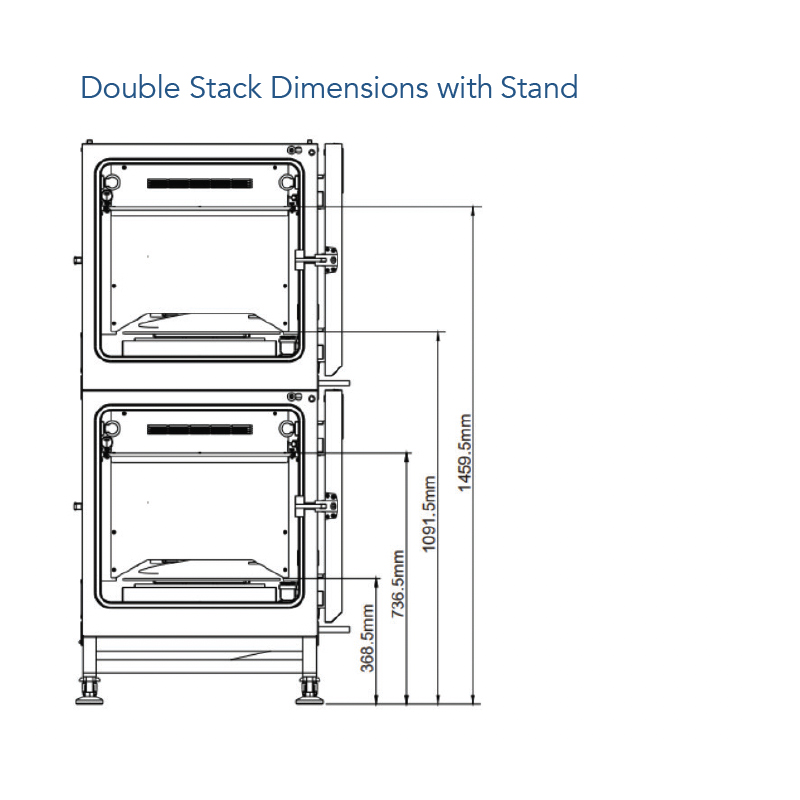

Units shipped pre-stacked on single pallet, single or double stack (Stand sold separately)

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CLS-2544-25S	AEOLUS 170L (6.0 CU FT) Non-CO² Incubator Shaker with Magnetic Drive, 25mm Orbit, 110V, 60Hz, Single	EACH	✱	$14,570.00	Call for Availability	Qty:
SKU: CLS-2544-50S	AEOLUS 170L (6.0 CU FT) Non-CO² Incubator Shaker With Magnetic Drive, 50mm Orbit, 110V, 60Hz, Single	EACH	✱	$15,050.00	Call for Availability	Qty:
SKU: CLS-2544-25D	AEOLUS 170L (6.0 CU FT) Non-CO² Incubator Shaker With Magnetic Drive, 25mm Orbit, 110V, 60Hz, Double Stack	EACH	✱	$28,900.00	Call for Availability	Qty:
SKU: CLS-2544-50D	AEOLUS 170L (6.0 CU FT) Non-CO² Incubator Shaker With Magnetic Drive, 50mm Orbit, 110V, 60Hz, Double Stack	EACH	✱	$29,800.00	Call for Availability	Qty:
✱ Life Science Equipment Product Line

Replacement Parts
Specifications/Manuals
Suggested Products

Item Number	Item Description	PQ	PL	Price	Qty Avail	Quantity
SKU: CLS-2544-100	Replacement Shelf for AEOLUS 170L (6.0Cu Ft) Incubator Shakers	EACH	✱	$330.00	Call for Availability	Qty:
SKU: CLS-2544-200	Stand for AEOLUS 170L (6.0Cu Ft) Incubator Shakers	EACH	✱	$970.00	Call for Availability	Qty:
SKU: CLS-2545-0025	Flask Clamp, 25mL, for Stackable Incubator Shakers	EACH	♥	$7.15	Call for Availability	Qty:
SKU: CLS-2545-0096	Plate Holder, 96-Well, for Stackable Incubator Shakers	EACH	♥	$16.50	Call for Availability	Qty:
SKU: CLS-2545-0150	Flask Clamp, 150mL, for Stackable Incubator Shakers	EACH	♥	$9.35	Call for Availability	Qty:
SKU: CLS-2545-0200	Flask Clamp, 200mL, for Stackable Incubator Shakers	EACH	♥	$12.10	Call for Availability	Qty:
SKU: CLS-2545-2000	Flask Clamp, 2,000mL, for Stackable Incubator Shakers	EACH	♥	$39.60	Call for Availability	Qty:
SKU: CLS-2545-4000	Infusion Bottle Clamp, 500mL, for Stackable Incubator Shakers	EACH	♥	$28.60	Call for Availability	Qty:
SKU: CLS-2545-4001	Infusion Bottle Clamp, 1,000mL, for Stackable Incubator Shakers	EACH	♥	$112.20	Call for Availability	Qty:
SKU: CLS-2545-5000	Flask Clamp, 5,000mL, for Stackable Incubator Shakers	EACH	♥	$66.00	Call for Availability	Qty:
SKU: CLS-2545-6005	Separating Funnel Fixture, 500mL or Larger, for Stackable Incubator Shakers	EACH	♥	$280.50	Call for Availability	Qty:
SKU: CLS-2545-6014	Tube Rack, 14mm x 40 Holes, for Stackable Incubator Shakers	EACH	♥	$66.00	Call for Availability	Qty:
SKU: CLS-2545-6016	Tube Rack, 16mm x 40 Holes, for Stackable Incubator Shakers	EACH	♥	$66.00	Call for Availability	Qty:
SKU: CLS-2545-6018	Tube Rack, 18mm x 40 Holes, for Stackable Incubator Shakers	EACH	♥	$66.00	Call for Availability	Qty:
SKU: CLS-2545-6022	Tube Rack, 22mm x 27 Holes, for Stackable Incubator Shakers	EACH	♥	$66.00	Call for Availability	Qty:
SKU: CLS-2545-6030	Tube Rack, 30mm x 21 Holes, for Stackable Incubator Shakers	EACH	♥	$163.90	Call for Availability	Qty:
SKU: CLS-2545-7014	Adjustable Angle Tube Rack, 14mm x 40 Holes, for Stackable Incubator Shakers	EACH	♥	$112.20	Call for Availability	Qty:
SKU: CLS-2545-7016	Adjustable Angle Tube Rack, 16mm x 40 Holes, for Stackable Incubator Shakers	EACH	♥	$112.20	Call for Availability	Qty:
SKU: CLS-2545-7018	Adjustable Angle Tube Rack, 18mm x 40 Holes, for Stackable Incubator Shakers	EACH	♥	$112.20	Call for Availability	Qty:
SKU: CLS-2545-7022	Adjustable Angle Tube Rack, 22mm x 27 Holes, for Stackable Incubator Shakers	EACH	♥	$112.20	Call for Availability	Qty:
SKU: CLS-2545-7030	Adjustable Angle Tube Rack, 30mm x 21 Holes, for Stackable Incubator Shakers	EACH	♥	$112.20	Call for Availability	Qty:
SKU: CLS-2545-7031	Adjustable Angle Tube Rack, 30mm x 24 Holes, for Stackable Incubator Shakers	EACH	♥	$268.40	Call for Availability	Qty:
SKU: CLS-2545-8006	Sticky Mat, 140 x 140mm, for Stackable Incubator Shakers	EACH	♥	$105.60	Call for Availability	Qty:
SKU: CLS-2545-3007	Spring Frame, 450 x 400 x 80mm, for Stackable Incubator Shakers	EACH	♥	$420.20	Call for Availability	Qty:
✱ Life Science Equipment Product Line ♥ Bioreactor Product Line

Part Number	CLS-2544-25S	CLS-2544-50S
Platform Dimensions (W x D)	460 x 460mm (18 x 18in)
Static Shelf Dimensions (W x D)	460 x 460mm (18 x 18in)
Max Capacity with Clamps	· 50mL x 49 · 100mL x 32 · 150mL/200mL/250mL x 25 · 500mL x 16 · 1L x 9 · 2L x 6 · 2.8mL x 5 · 5L x 4
Max Capacity with Sticky Mats	· 50mL x 64 · 100mL x 49 · 150mL/200mL x 36 · 250mL/500mL x 25 · 1L x 9 · 2L x 6 · 2.8mL/3L x 5 · 5L x 4
Capacity	170L (6.0 CU FT)
Max Load	15kg (33lbs)
Temperature Range	RT to 60°C (Lowest Temp is 4°C)
Temperature Accuracy	±0.1°C
Temperature Uniformity	±0.3°C (@37°C)
Temp Recover Time After Door is Opened for 30s	≤6min (@37°C)
Speed	30-400 RPM	30-300 RPM
Speed Accuracy	±1 RPM
Speed Drive	Magnetic Drive
Orbit Diameter	Φ25mm (Φ1.02in)	Φ50mm (Φ2.0in)
Programmable Segments	12 Segments
Timer	0-999hr 59min
Illumination	LED Lamps on Left and Right Walls
Disinfection	UV Lamps on Left and Right Walls
Door Opening Direction	Leftward

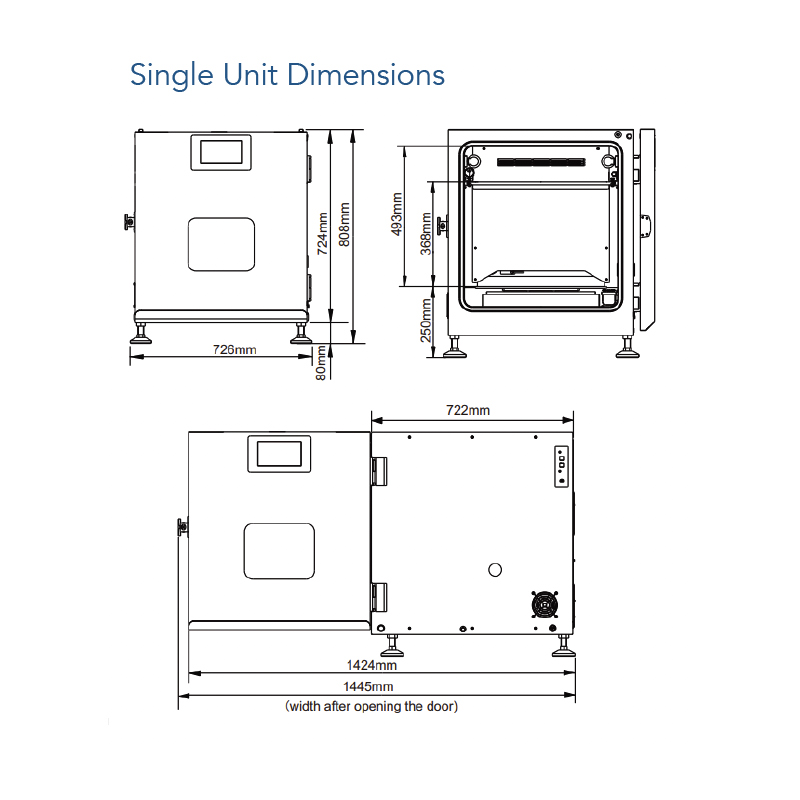

Internal Working Dimensions (W x D X H)	582 x 525 x 620mm (23 x 20.7 x 24.4in)
External Dimensions (W x D x H)	745 x 784 x 728 (+80mm with feet) ((29.3 x 30.9 x 28.7 (+3.15in with feet))
Internal Working Height w/ Shelf Installed	14.48in (368mm)
Internal Working Height w/o Shelf Installed	19.40in (493mm)
Net Weight	150kg (331lbs)
Display	7” Color Capacitive Touch Screen
Parameter Protection	Password Protected
Data Stored	Time, Temperature, Speed, CO2 Concentration, Humidity, Instrument Status
Data Storage Interval	1 Minute
Screen Data Display	Displays Most Recent 7 Days of Data
USB Data Export	Most Recent 912 Days of Data
Automatic Defrost	Yes
Noise Level	≤55dB (When Compressor is Running)
Auto-Recovery After Power Interruption	Yes
Power Supply	110VAC ±11V, 60Hz
Power When Heating	450W
Power When Cooling	≤180W
Power	≤630W
Warranty	2 Years Parts and Service
Certification	CE
