AF-0306

ADAPTERS, THERMOCOUPLE GAUGE, AIRFREE®, SCHLENK

Adapters

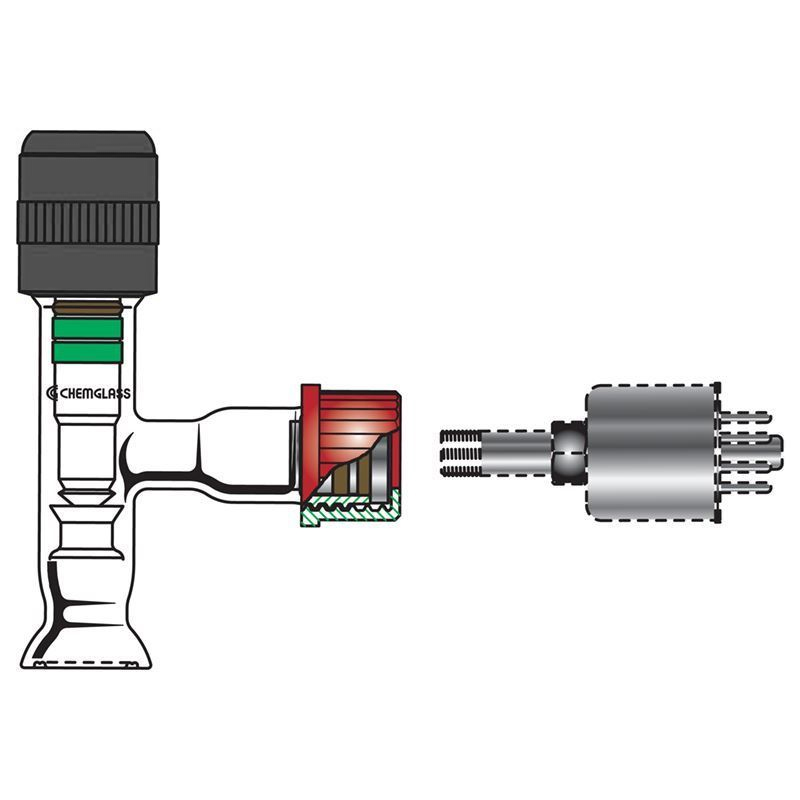

A 0-12mm Chem-Vac™ Chem-Cap® valve having an o-ring joint for connection to the right hand side of AF-0300-03 vacuum manifold. Adapter is available for #15, #25, and #30 o-ring joints. Complete gauge consists of a glass portion, a S.S. bushing drilled and tapped for 1/8” NPT permitting direct connection to gauge tube, and an open top GL-25 screw cap.

Item NumberItem DescriptionPQPriceQty AvailQuantity
AF-0306-01
Adapter, Complete, Thermocouple Gauge, Airfree®, Stainless Steel Bushing, #15 O-Ring Jt
EACH
4
AF-0306-02
Adapter, Complete, Thermocouple Gauge, Airfree®, Stainless Steel Bushing, #25 O-Ring Jt
EACH
7
AF-0306-03
Adapter, Complete, Thermocouple Gauge, Airfree®, Stainless Steel Bushing, #30 O-Ring Jt
EACH
3
AF-0306-10
Bushing Only, Thermocouple Gauge, GL-25, 1/8" NPT, #303 Stainless Steel
EACH
64
  ✱ Machined Product Line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CG-195-03GL-25 Cap with 15mm ApertureEACH
990
CG-305-112O-Ring, Viton, #112P12
108
CG-305-114O-Ring, Viton, #114P12
8
CG-961-030-12mm Chem-Vac™, Chem-Cap® Valve Replacement Plug and Control Knob, High VacuumEACH
108
  ✱ Chemistry Equipment and Hardware Product line
