CLS-2548

INCUBATORS, CO², SHAKING, HEATING, MAGIC CLAMP

• Advanced Monitoring Controls
• Dual Beam IR Sensor
• Integral Orbital Shaker
• Stackable Design
• Stainless Steel Chamber
• 6-Sided Direct heating

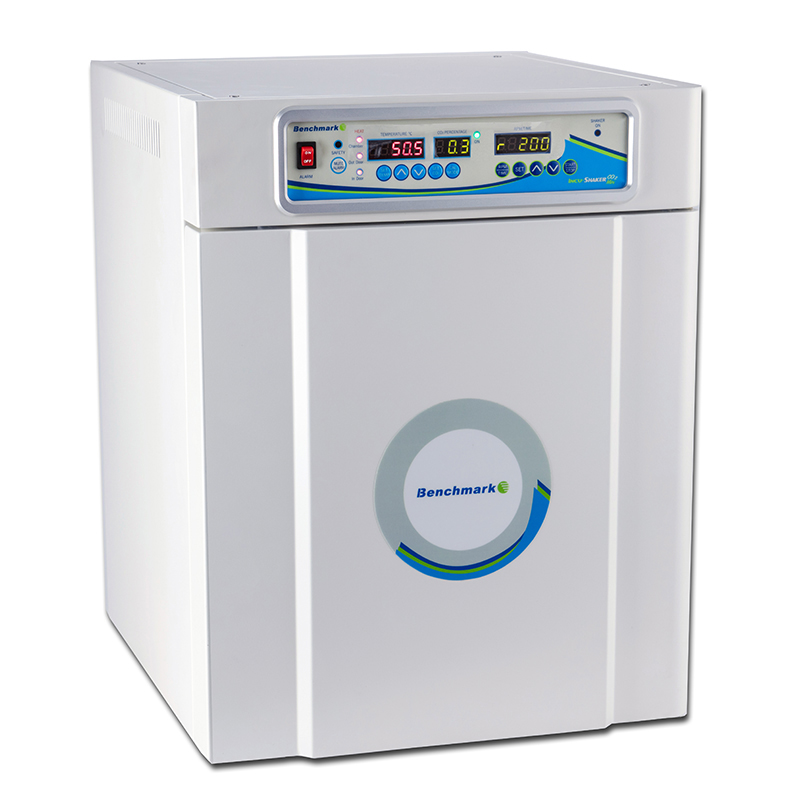

Ideal for the culturing of non-adherent cells, the Incu-Shaker CO2 Mini combines a precision CO2 incubation chamber with an integral orbital shaker, providing the optimum conditions for suspension cell culture.

With our unique and proprietary heat distribution technology, the incubator provides the highest levels of temperature accuracy with minimal fluctuation (within 0.1°C). The six-side heating system in combination with a ultra-low speed internal fan uniformly spread air throughout the stainless steel chamber without air exchange from the external environment. This minimal air flow design, significantly reduces the concerns of sample to sample contamination and allows for disabling of the fan for applications requiring solely mechanical convection.

A powerful, beltless motor drive provides a horizontally circular shaking motion at a consistent 19mm orbit. The included platform (9.5 x 11.5 in.) can be used for low speed shaking of a variety of laboratory vessels, including Erlenmeyer flasks, culture plates and media bottles. For high speed mixing, a patented MAGic Clamp platform is available that allows for magnetic attachment of flask clamps and tube racks.

Item NumberItem DescriptionPQPriceQty AvailQuantity
CLS-2548-01
Incu-Shaker CO2 Mini, Shaking, Heating, 120V, with Non-Slip Rubber Mat Platform
EACH
Call for
Availability
  ✱ Life Science Equipment Product Line
Item NumberItem DescriptionPQPriceQty AvailQuantity
CLS-2457-H10Optional CO2 RegulatorEACH
Call for
Availability
CLS-2543-050Clamps for MAGic Platform, 50mL (Max 49)EACH
Call for
Availability
CLS-2543-125Clamps for MAGic Platform, 125mL (max 12)EACH
Call for
Availability
CLS-2543-250Clamps for MAGic Platform, 250mL (max 8)EACH
2
CLS-2543-500Clamps for MAGic Platform, 500mL (max 5)EACH
Call for
Availability
CLS-2543-1LClamps for MAGic Platform, 1,000mL (Max 9)EACH
Call for
Availability
CLS-2543-016Clamps for MAGic Platform, Microplate (Max 6)EACH
3
CLS-2543-003MAGic Clamp™ Universal Platform for flasks and tube racks (9.5 x 11.5)EACH
Call for
Availability
CLS-2543-013Platform, Dedicated with 4 MicroplatesEACH
Call for
Availability
CLS-2543-018Tube Rack, 15 x 50mL Conical Tubes (Max 8)EACH
1
CLS-2543-017Tube Rack, 32 x 15mL Conical Tubes (Max 8)EACH
Call for
Availability
  ✱ Life Science Equipment Product Line

Temperature Range: Ambient +5 to 60°C
Temperature Accuracy: ±0.5°C*
Temperature Uniformity: ±0.5°C*
Temperature Increment: 0.1°C
Temperature Stability: 0.1°C*
Speed Range: 30 to 300 rpm
Speed Increment: 1 rpm
Mixing Orbit: 19mm (3/4 in)
CO2 Range: 0 to 20%
CO2 Increment: 0.1%
CO2 Accuracy: ±0.1%
CO2 Sensor: Dual Beam IR
Time Range: 1 min to 48 hours (or Continuous)
Platform Dimensions: 9.5 x 11.5 in. (23.5 x 29 cm)
Chamber Dimensions: 13.2 x 10.25 x 15.4 in (33.5 x 26 x 39.2 cm)
Chamber Volume: 46L
Chamber Material: Stainless Steel
Exterior Dimensions: 16.5 x 18.3 x 21.8 in. (42 x 46.5 x 55.3 cm)
Weight: 90 lbs / 40.1 kg
Electrical: 120V or 230V, 50-60Hz (350W)
(*At a set temperature of 37.0°C)
